“Magico is the world’s first manufacturer to utilize graphene in the development of a leading-edge loudspeaker cone design. Graphene has many extraordinary properties and is approximately 100 times stronger than the toughest steel. The newly designed Magico six-inch midrange and seven-inch bass driver cones found in the M3 are both manufactured from Multi-Wall carbon XG Nanographene and a new proprietary ultra-stiff carbon weave which is 20% lighter and 300% stiffer than the cone material used in previous Magico loudspeaker offerings. The underhung neodymium base motor system provides an ultra-stabilized magnetic field for the pure Titanium voice coil to operate within. This radical new driver design offers the lowest THD in the industry and sets the performance benchmark for others to aspire to.

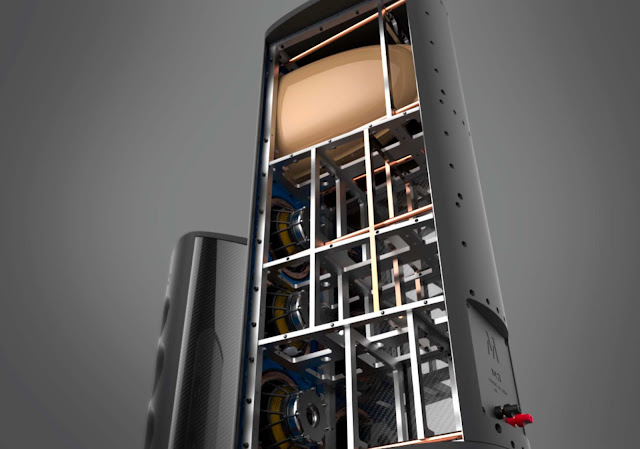

The M3 midrange driver operates in a purpose built sub-enclosure made of a proprietary polymer that enhances midrange control and articulation. This sub-enclosure concept was first used in the S3 and is now applied to our more recent 3-way speaker designs. Three seven-inch M3 bass drivers are vertically aligned to achieve ideal room integration and reproduce the lowest registers of bass frequency with speed and accuracy. A solid copper gasket is applied between the driver’s chassis and enclosure to maximize the coupling effect and diffuse resonances between the two surfaces. The M3 bass drivers are optimized for minimal music related distortions in the frequency and time domain using the latest state-of-the-art FEA simulation of acoustics, mechanics, electromagnetic and thermal behavior. The testing process is now completed on a single platform allowing optimization levels to be taken to a higher level.”
