Chrysalis comes as very differnt loudspeaker project inspired by the Steam Punk movement. This three-way speakers were designed to offer best dynamic impact and extraordinary linearity as well as perfectly cohesive sound stage.

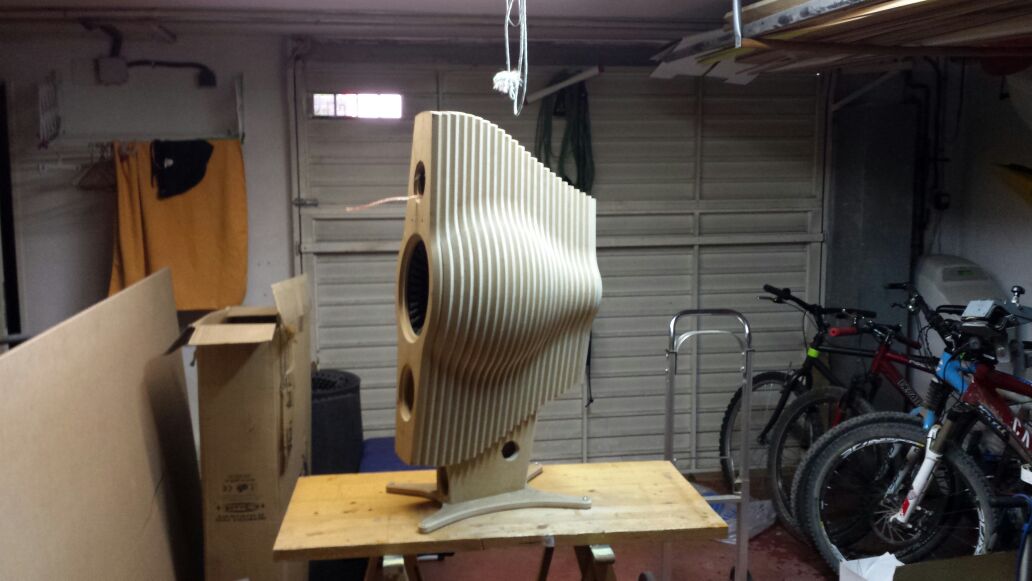

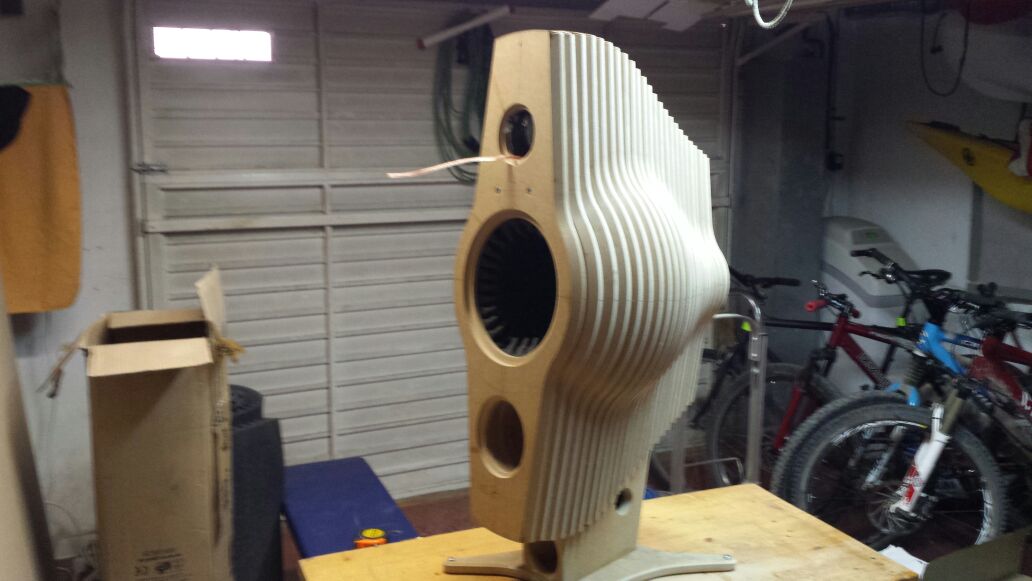

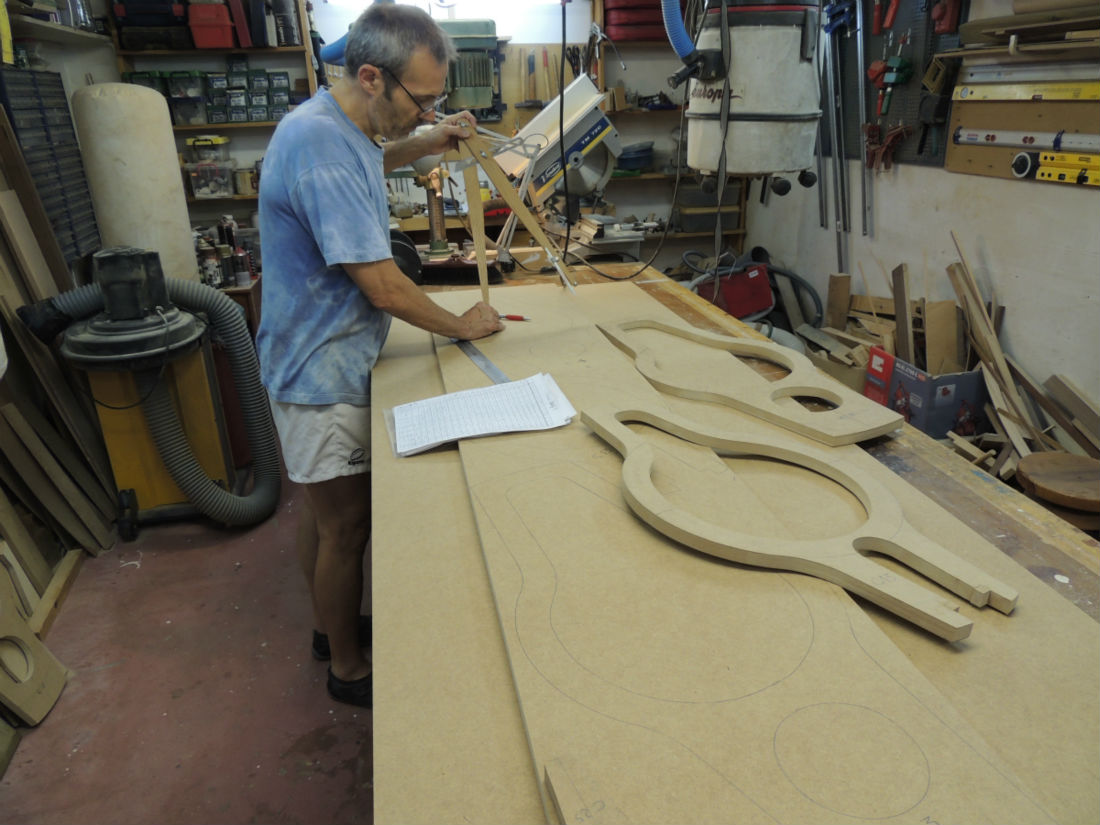

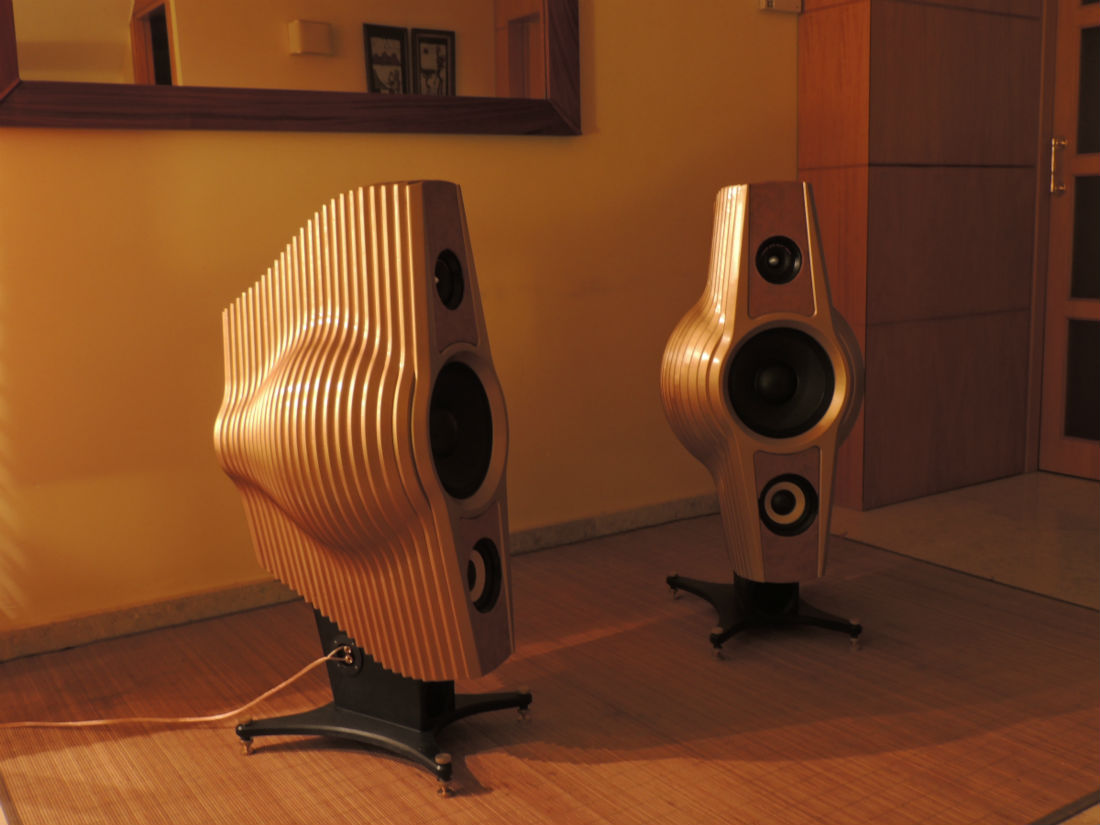

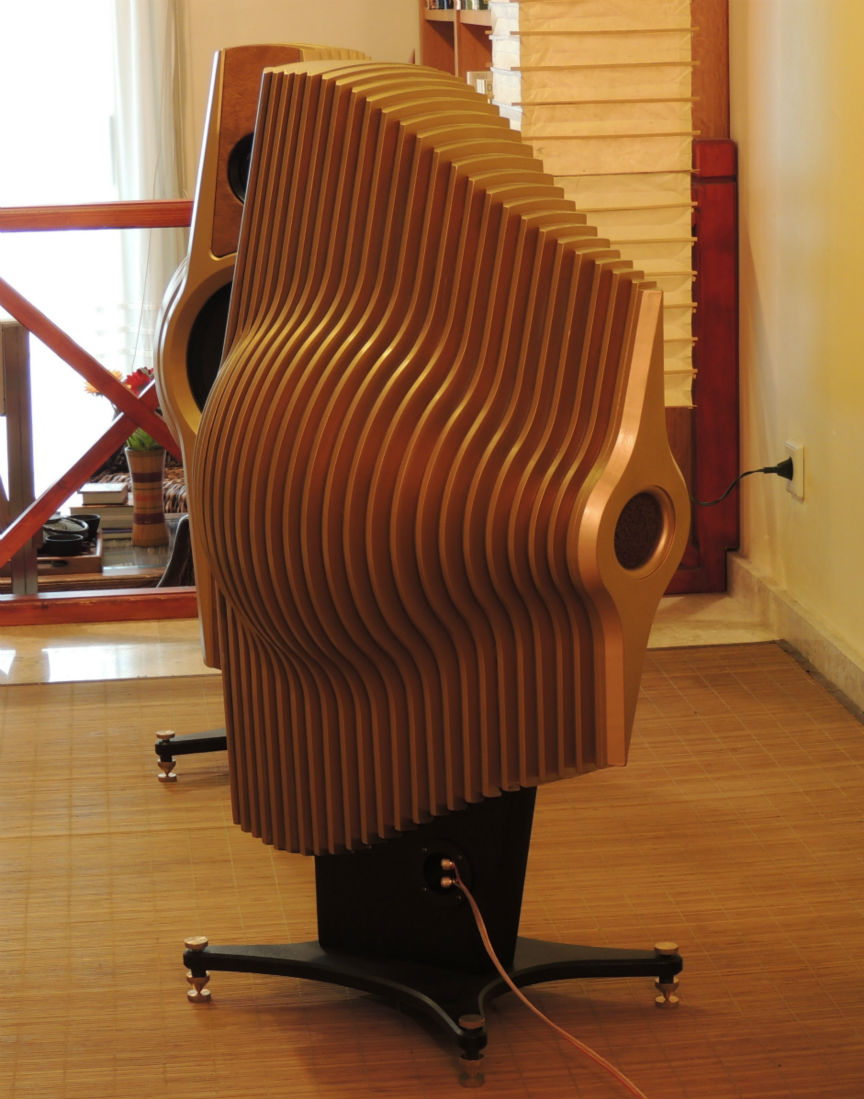

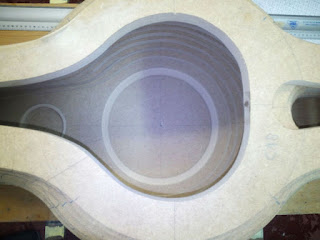

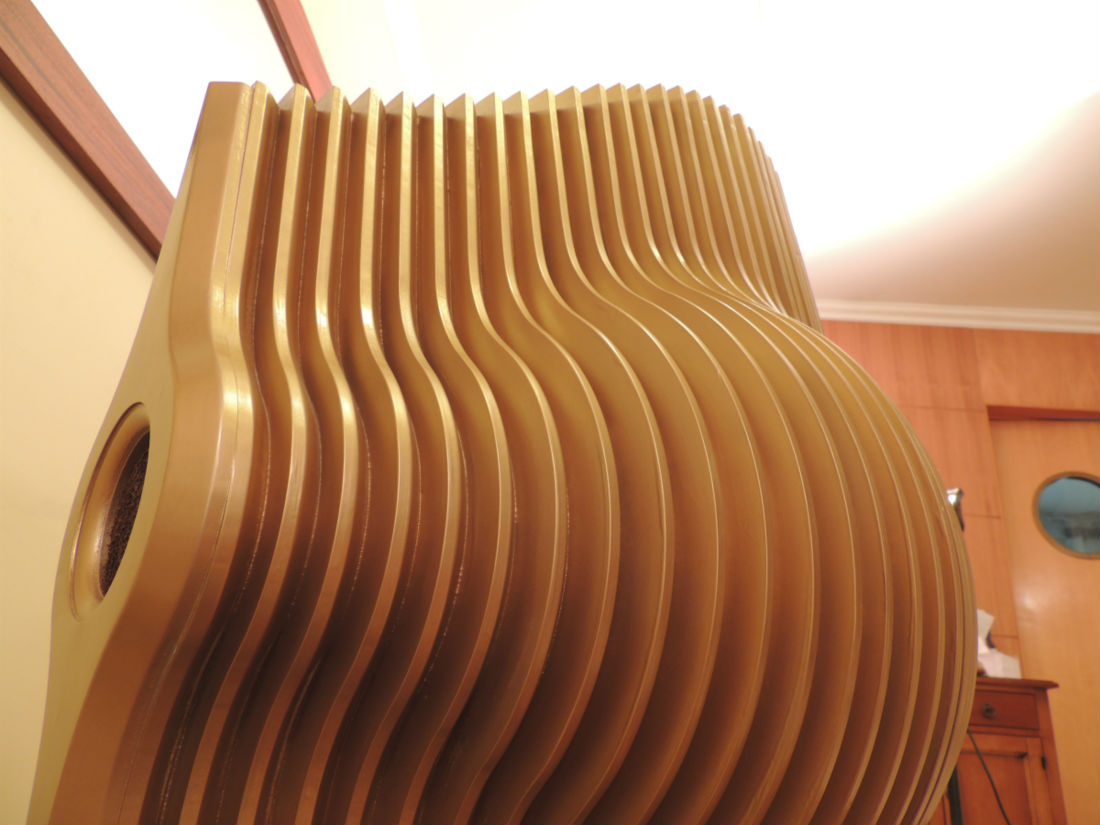

Below are photo set of the production and final outcome.
Specifications:
Speaker type: 3-way filter frequency, semi bass reflex (cushioned)
Maximum Permissible Power: 150W RMS
Cutting frequencies Graves to 800Hz, 6000Hz to Mass, to limit tweeter Treble (22000Hz)
Building material: MDF fibers in thickness not less than 25mm.
Surface finish: Imitation cast brass (acrylic paint)
Weight: 32Kg
Dimensions (maximum levels):
Height: 990mm
wide: 440mm
depth: 490mm

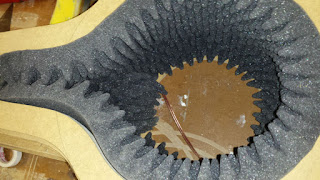

Internal absorption system: polyurethane foam 50mm
External insulation system: four points decoupling Dynavox brass
Link: here.
