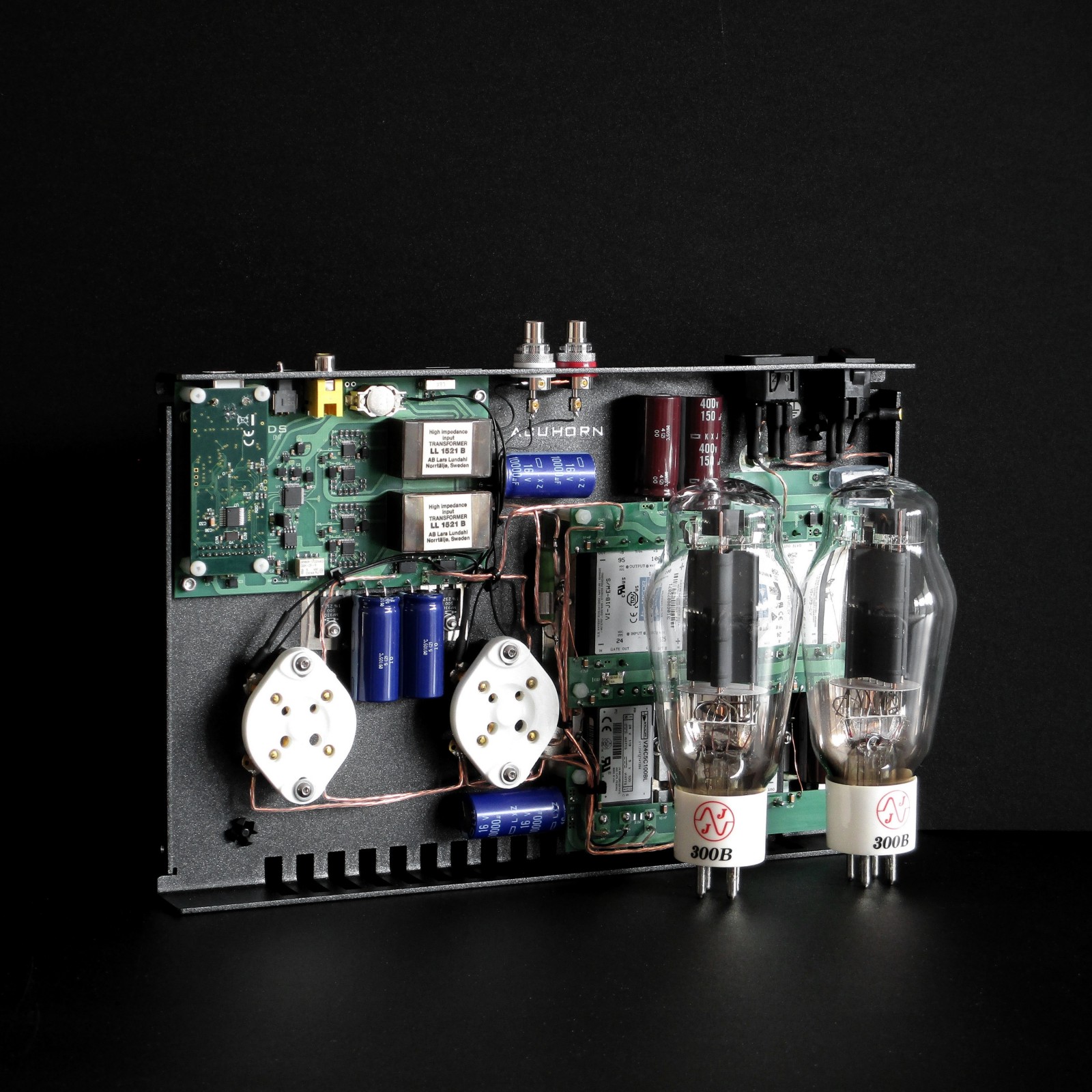

The Acuhorn LUSSO DSD differential discrete DAC features an analog filter with high-quality 0.1% thin-film Nichrome chip resistors. A Lundahl LL1521 high-impedance line-input transformer handles differential-to-single-ended signal conversion. The unit includes the AK4137 Asahi Kasei premium 32-bit digital sample-rate converter (SRC).
THD+N: up to –150 dB
Dynamic Range: 186 dB
There are two ways to use PCM-to-DSD conversion. All digital audio formats can be converted either by computer software or by the onboard hardware processor. HQPlayer, Foobar2000, and other high-resolution audio players are supported for DSD playback. The DAC is compatible with all major music formats, including WAV, FLAC, ALAC, DSF, and with lossless audio-streaming platforms such as Amazon, Apple Music, Deezer, Qobuz, Spotify, TIDAL, and others.
Manual controls allow switching between the USB audio device and S/PDIF inputs.
The USB Type-B digital input uses the Amanero Combo384 audio adapter, compatible with Android, macOS, Linux, and Windows.
The S/PDIF coaxial input uses the WM8804 digital interface transceiver.
Supported output formats (32-bit): PCM up to 384 kHz (USB) and 192 kHz (S/PDIF).
SRC bypass mode supports DSD64, DSD128, and DSD256.
The pure Class-A single-ended tube stage supports 300B, PX25, PX4, 45, and 2A3 directly heated power triodes. Matched NOS tubes for the UX4 (U4A) socket are available. European tubes with a 4-pin B4 (A4A) base can be used with an adapter. The analog stage is built using Caddock high-performance film resistors.
Analog output: RCA single-ended tube output, 2.8 V RMS, Zout 600 ohm.
The power supply uses high-speed Vicor Power modules. These DC-DC converters provide high power density, low noise, and advanced power processing in a compact size, delivering up to 90% efficiency. Supports full-range 120–240 VAC operation for worldwide use.
Technical Specifications
- Input voltage (mains): full range 120–240 VAC
- Maximum input power: 40 W
- Discrete 1-bit DAC
- 4-pin U4A tube socket
- Directly heated triodes: 5 V, 4 V, or 2.5 V types
- 2 signal inputs: USB Type-B and S/PDIF coax
- 1 audio output: RCA
- Internal cabling: OCC copper
- Terminals: rhodium
- Weight: 1.6 kg
- Dimensions: W 320 × D 200 × H 28 mm
