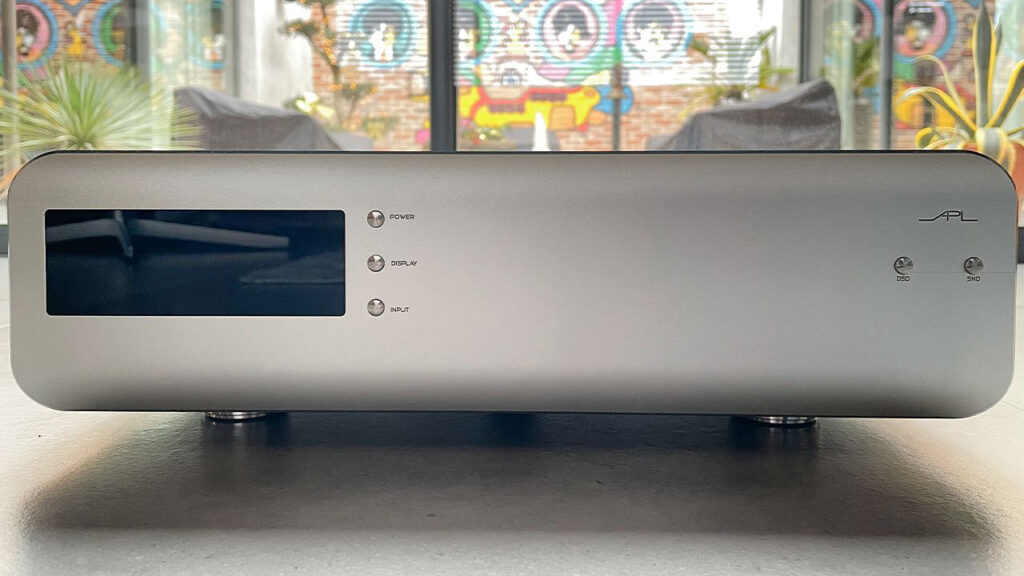

APL HIFI Pure DSD Galactic Reference DAC

Matej Isak

APL HIFI Pure DSD Galactic Reference is Digital to Analog converter with balanced, transformer-coupled tube output stage. Inspired by reference vinyl sound quality, the DSD-GR delivers a unique sonic character. From DSD512 processing to differential Class-A tube output, the DSD-GR exemplifies technological refinement.

  • It is an all-hand-made boutique, designed and built with the best possible audio quality in mind, cost-no-object.
  • Inspired by pure analog sound quality, the DSD-GR pleases with a very natural sonic character that is truly unique.
  • From the DSD512 processing rate to the differential transformer-coupled Class-A tube output stage, the DSD-GR proves technology and refinement of the highest level.
  • The DSD-GR is based on a modular design, allowing a cost-effective future upgradability of any internal stage.

Digital Processing

  • Proprietary asynchronous USB input module accepting PCM up to 384kHz/32 bit, and up to DSD512 in NativeDSD format.
  • Both 44.1kHz and 48kHz – based DSD data is accepted.
  • Proprietary 64 bit PCM to DSD converter module with DSD256 and DSD512 capabilities, user selectable from the remote control.
  • Proprietary 64 bit Normal and Slow linear phase filters, user selectable for PCM processing.
  • Zero filter mode available for Non Oversampling (NOS) mode.
  • Pure DSD Digital to Analog conversion without any additional Digital processing.
  • Proprietary Pure DSD Digital to Analog conversion module using non-magnetic resistors of the highest possible quality.
  • Two Sound modes for the DSD modulator.
  • Ultra-low-phase noise, Femto-jitter Master Clocks.
  • Proprietary RJ-45 input woking in balanced I2S mode for connecting with our digital sources.

Analog Output Stage

  • Custom Lundahl interstage and output transformers with Oxygen Free Copper windings.
  • Pure Class-A, Differential tube stage featuring ECC99 tubes.
  • Entirely passive current to voltage conversion and DSD analog filtering.
  • Zero Negative Feedback.
  • Non-magnetic resistors.
  • No Op Amps.
  • No mechanical switches or relays on the signal path.
  • Oxygen Free Copper internal wiring featuring Esprit Audio, France cables for the critical signal paths.

Power Supply

  • Oversized Custom R-Core balanced main power transformer with OFC windings.
  • Delayed High-Voltage supply, after tubes warm-up, for increased tubes life.
  • High quality Lundahl choke for the tube power supply.
  • High grade, specially selected rectifiers and passive components.

Convenience and mechanical

  • Large FLD display made by Noritake in Japan.
  • Custom selectable color filters for the display. Red, Blue or Green.
  • Microprocessor control with last settings memory.
  • Aluminum Infrared Remote Control.
  • All-Aluminum enclosure with machined 20 millimeters thick front panel.
