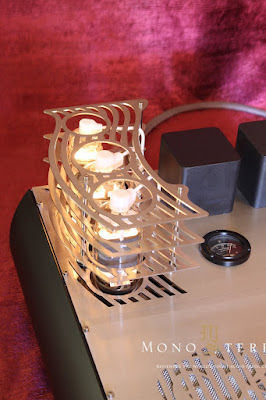

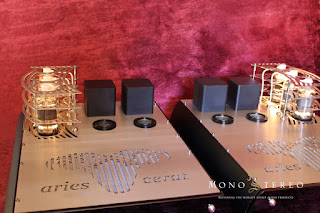

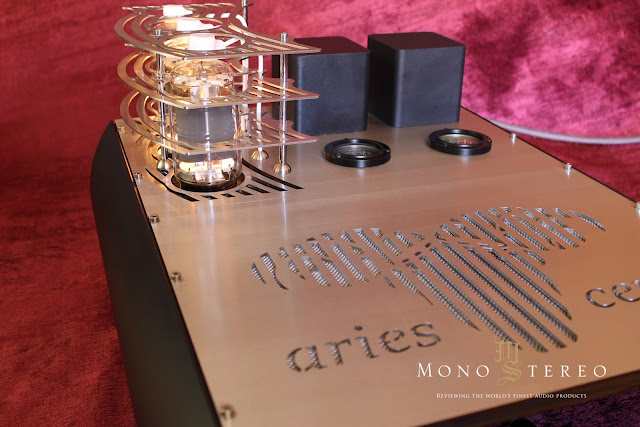

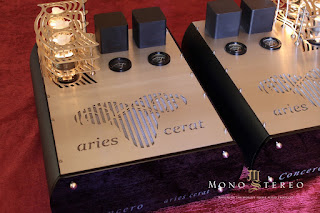

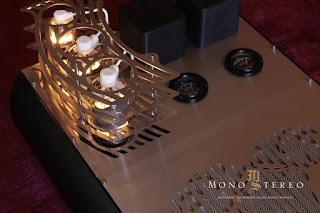

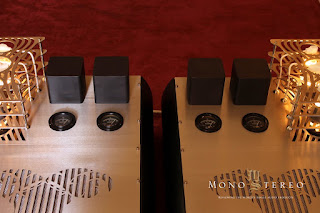

Photo set of the NEW facelift, Aries Cerat Concero 65 power amplifiers, that will debuted at this week’s Belgium Audio show,
Some technical info:
Power: 65W @ 8-4-2-1 ohm with impedance match selector

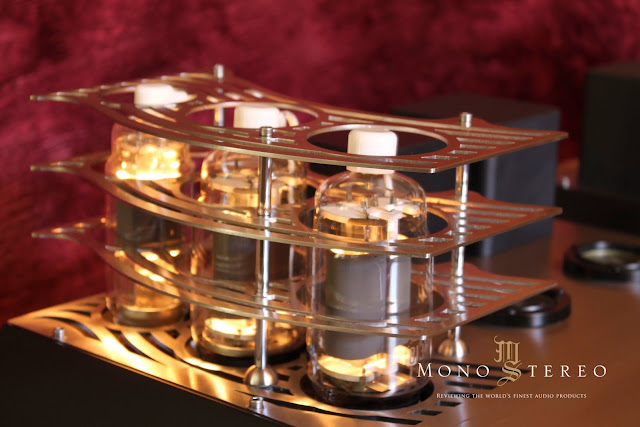

Tubes used: 2 X 813 RCA 1 X 814 RCA
Transformer coupled,all DHT design
Film Supercapacitors used for both output and driver stage. 100 less ESR and ESL than any other electrolytic/film used in audio.
Critically tuned LC power reserves,over 1500Joule of energy storage
Total capacitance for primary and secondary circuits: >700.000uF
1400W total power transformer rating
AC link input and AC link driver circuits
Triple pi-filters for all tube filaments.
Bias change on the fly,fine-tuning both driver and output tubes.
Automated soft start power-up procedure
Noise floor: < -105db unweighted
Dimensions : 500mmW X 590mmD X 370mmH
