Aura Fidelity writes: “Our AUDIOPHILE RIAA stands for a totally new way of design. Here you can forget the usual load resistor. The MC input operates in slave modus, with a 100K resistor to ground. It leave the pick-up in master mode and do the job on it’s own. The amp is non inverting and the RIAA correction is obtained in direct signal line, and not ,” as usual” with a feedback signal. The MC / HEAD-AMP roles can be easily changed, if desired. It must be heard – to read the spec. is not enough.”
Frequency range:
20 – 28 KHz
SN MC:
78dB
SN MM:
85 dB
Loading MC:
0.15 – 1 mv
Loading MM:
4-15 mv
THD:
< 0.0005 %
Output MC:
0.2 – 1.5 mV
Output MM:
5 – 15 mV
Output voltage :
2.6V
1 dedicated unbalanced RCA input (MC)
1 dedicated unbalanced RCA input (MM)
1 unbalanced RCA output
1 balanced XLR output

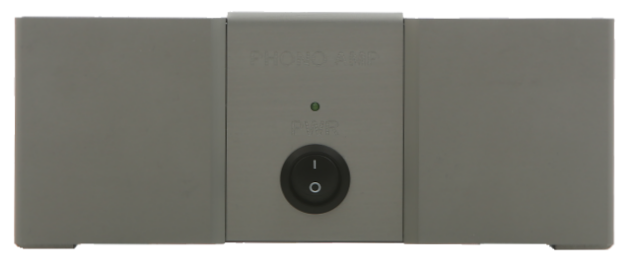

It comes in an exclusive enclosure at WHL:
200 x 70 x 200
Finish: Silver, Black
