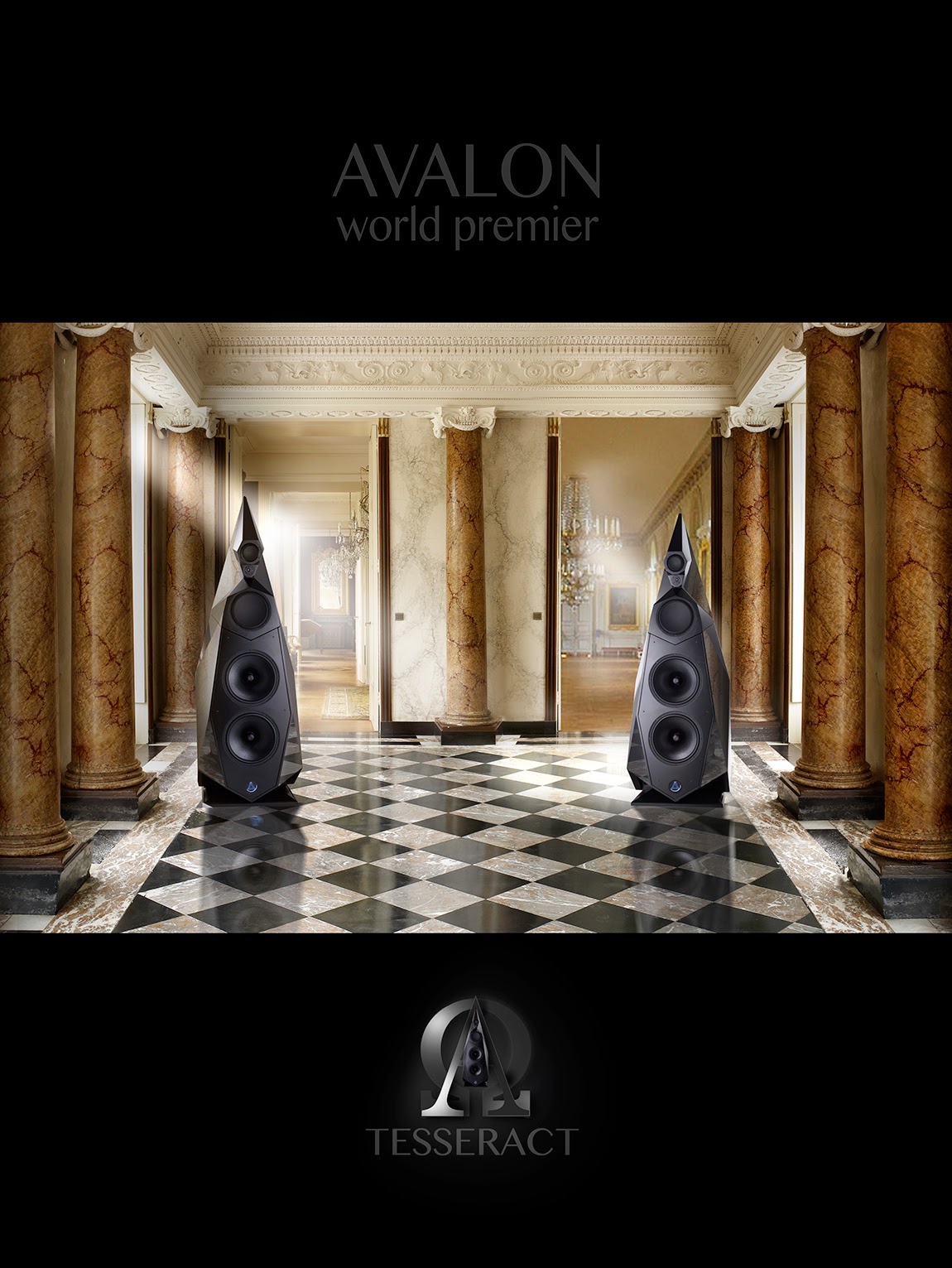

Avalon Acoustics Tesseract speakers high-res pictures and info

Avalon Acoustics is pleased to announce the culmination of 5 years of research and design, the world premiere of an extraordinary and inspirational Musical Masterpiece. This handmade technological sculpture has been created utilizing the rarest elements for their strength and electrical properties: Diamond, ceramic, gold, copper, platinum, and silver. We believe you will find it stunning in visual beauty and unprecedented in technical achievement.
Entirely handcrafted in the foothills of the Colorado Rocky Mountains, Tesseract will be available exclusively through specially certified representatives drawn from within our distribution network in the Pacific Rim, Europe, and the United States.

  • Frequency Response: 16 Hz to 50K Hz (+/- 0.5 dB anechoic, +/- 1 dB in room response typical)
  • In room low frequency response: (-1.5 dB @ 16Hz, -3 dB @ 13Hz typical, dependent upon room volume)
  • Efficiency: 93.5 dB (1 watt @ 1 meter)
  • Harmonic distortion: < 0.30 % throughout the bandwidth at rated efficiency
  • Inter-driver phase deviation: < 3 degrees within all cross bands
  • Noise floor: < 68 dB from signal level (maximum noise level), < 76dB Typical
  • Group delay distortion: < 3 milliseconds 100 Hz to 16 Hz. < 1 millisecond 100 Hz to 20 KHz.
  • Impedance: 6 ohms nominal (4 ohms minimum @ 80 Hz)
  • Recommended amplifier power: 15 to 500 Watts
  • Sonic Holography: Superlative 3 dimensional imaging capability with two-channel source material
  • Proprietary Quad driver internally powered Isobaric transmission line system
  • Symmetrical impedance characteristics
  • Constant driver to driver Q
  • Purely Pistonic driver behavior throughout the bandwidth
  • Point source focus
  • Phase linear filter topologies
  • Fully damped non-reactive amplifier load
  • Stealth Technology: Acoustic radiation control for launch surface and room ambience return energy
  • Linear octave to octave radiation balance
  • Power: 3.2 Kilowatts per channel
  • Automatic signal sensing and gain matching
  • Master Gain: +/- 2.5 dB (fixed resistor elements of 0.25 dB increments)
  • Toggle switch for selecting low frequency contouring: Maximum extension or Transient Speed
  • Tempered-scale aperiodic tuning
  • Fully Analog symmetrical circuitry
  • No digital signal conversion or manipulation
  • 4 x 15″ low Q high force factor sub-woofers
  • 1 x 11″ ceramic/honeycomb underhung voice-coil midbass
  • 1 x 4.5″ ceramic underhung voice-coil midrange
  • 1 x .78 ” diamond underhung voice-coil tweeter
  • Four independent cabinets, two per channel vertically integrated
  • Overall Height: 87″ (221 cm)
  • Width: 29″ (74 cm)
  • Depth: 32″ (82 cm)
  • Weight: 827 lbs. per channel (375 kilos), 1653 lbs. total (750 Kilos)
  • Shipping weight: 2002 lbs. (908 kilos)
  • Retail price: 327,000 U.S. Dollars
