De Baer SAPHIR Turntable from Switzerland…
A De Baer record player differs in many points from conventional record players:
The bearing for the platter is a journal bearing with highest precision. Two magnets operate axially which results in a floating turntable. Two hard chrome plated running surfaces undertake the guidance radially. The bearing bushings are made out of porous sinter material with less than 0.01 mm clearance.The bearing housing is filled with oil in order to guarantee lifetime lubrication.
The bearing for the platter and the base for the tonearm are connected with the chassis through hardened steel balls. This results in maximum stiffness with minimal contact area, thus an excellent decoupling is guaranteed. What is usually fitted on one single basis, is distributed over 5 planes in the De Baer record player.

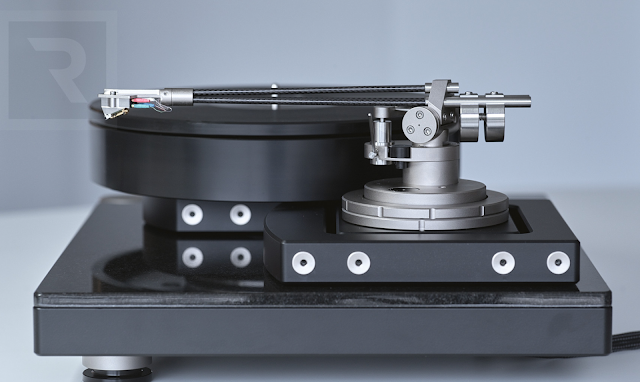

The tonearm is mounted with magnets and high precision ball bearings. The preloaded carbon tubes counteract the oscillation of the pickup.
The VTA is a complex construction with analogous gauge of the position of the height which allows the adjustment during play-back.
The design hides the amount of installed components. A whole drive consists of 138 fabricated components.
The SAPHIR (eng. Sapphire) turntable astonishes with its exceptional design and technology. Due to its quintuplicate decoupling system the vibration transmission is reduced to a minimum which renders an outstanding sonority.
Adjustment Options
VTA for the DeBaer Tonearm ONYX
battery power supply in place of standard power supply
back to the top
In the package
basis for a SME or Linn tonearm
a black chassis consisting of a baseplate (Nero Assoluto), a turntable with belt drive and a seating for the tonearm
standard power supply
