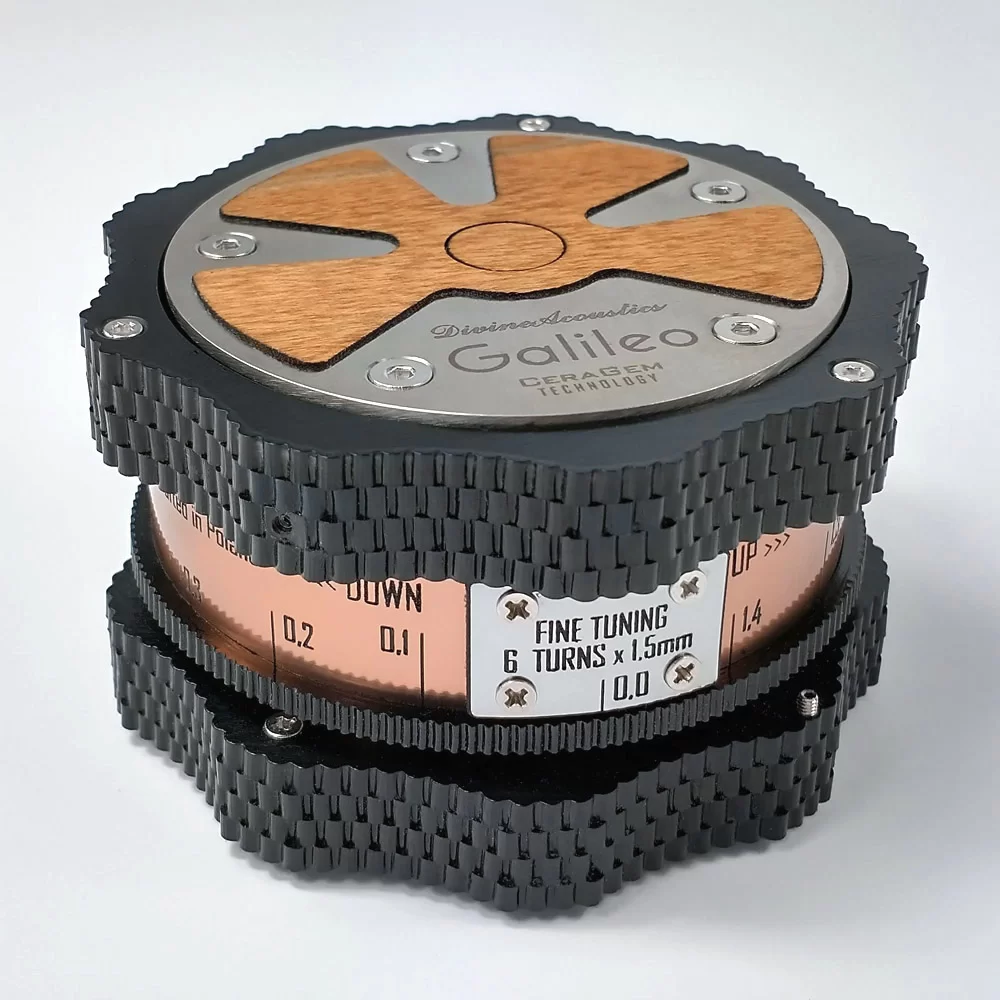

Divine Acoustics Galileo Galileo consists of six main modules. They form the housing and frame of the damping packages, as well as the height adjustment mechanism, allowing for resonance correction. The central part features a threaded core mounted on a ring with a precisely determined mass distribution. A total of 21 damping layers are spread in packages between the upper and lower parts of the foot. The elements around the circumference have been arranged according to the golden ratio principle. The housing is made of stainless steel and high-quality acrylic.
HOW GALILEO WORKS?

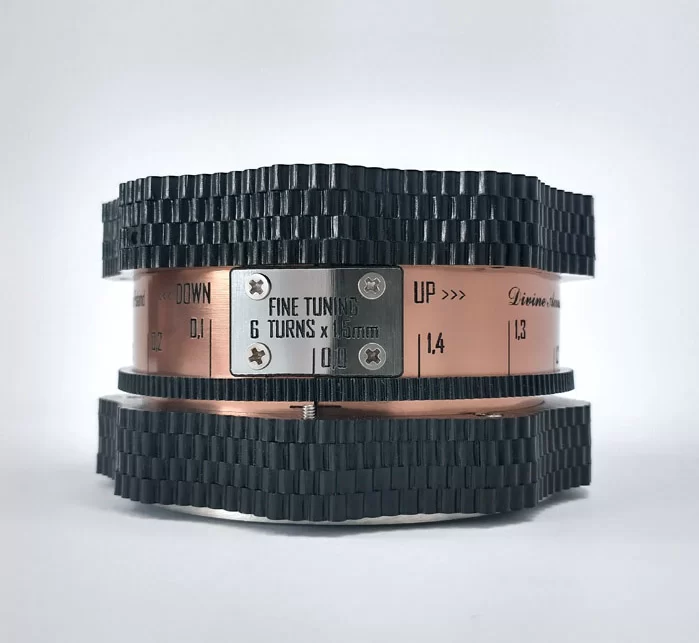

The resonance of a device is influenced by its mass, shape, external dimensions, as well as the materials from which it is made, and the arrangement of internal components such as the positioning of the transformer, mechanism, etc. Considering so many variables, in order for the anti vibrations feet to fulfill their function, they need to be “fine-tuned” to the device. The resonance adjustment in Galileo is provided by the regulation of the central pin. Its height can be adjusted by 8 millimeters through 6 complete rotations of the thread. Generally, the heavier the device, the lower the Galileo should be set. However, due to many other properties that also affect the inherent resonance of the devices, the final height of Galileo should be determined during listening sessions. More information on setting up and fine-tuning of Galileo can be found in the user manual.
TECHNICAL DATA
- Outer diameter: 82mm;
- Weight of the foot: 360g;
- Minimum height: 40mm;
- Maximum height: 56mm;
- Maximum load capacity per foot: 25kg;
FUNCTIONAL ADVANTAGES OF THE DESIGN:
- Large contact surface with the floor/countertop for improved stability;
- Easy height adjustment;
- Available in sets of 3 or 4 pieces.
