Affordable top performance DAC that offers true analogue sound without “digital” sound signature!?
The Mosaic T multibit DAC contains our new discrete digital to analogue converter. Our digital to analogue conversion uses i2s decoding and a balanced passive resistor matrix to produce the analogue output signal. After the conversion there are no active components and the DAC has a DC coupled output.
By using Toslink as digital input, ground loops are avoided. Our DAC and passive clock design reduces noise and jitter to extreme low levels.
Discrete multibit DAC with Toslink input
Fully passive DC coupled output
Available as 16 bit or 24 bit version
44.1 kHz to 192 kHz
Custom aluminium/perspex housing
Linear power supply
Features
Discrete multibit DAC with Toslink input
The heart of the Mosaic T is our new discrete multibit DAC that was developed in-house from scratch. This design uses some unconventional logic designs to correct flaws that exist in all existing DAC chips and derived discrete DAC designs. By using Toslink as digital input, ground loops are avoided. Our DAC and passive clock design reduces noise and jitter to extreme low levels.
The Mosaic T converts a digital sample into an analog voltage using resistors only. No active components are used after the conversion. The DAC is DC coupled, so there are no capacitors in the signal path.
16 bit / 24 bit
The Mosaic T is available as:
Mosaic 16 T, 16 bit DAC
Mosaic 24 T, 24 bit DAC
Sample rates
The Mosaic T supports 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz / 176.4 kHz / 192 kHz.

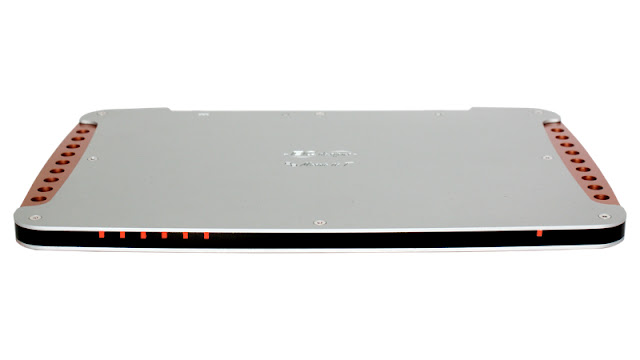

There are 6 leds that indicate the host samlpe rate:
LED 1 = 44.1 kHz
LED 1..2 = 48 kHz
LED 1..3 = 88.1 kHz
LED 1..4 = 96 kHz
LED 1..5 = 176.4 kHz
LED 1..6 = 192 kHz
Housing
Custom aluminium/perspex housing.
Power supply
The Mosaic T is supplied with an external 2x12V linear power supply.
Retail price 16 bit version: € 1500
Retail price 24 bit version: € 2000
