The Fjord Audio P150 power amplifier incorporates a unique DFD (Direct Full Difference Circuit) and a Zero Feedback circuit, delivering a one-of-a-kind transparent sound.
Highlights
- Special unique DFD (Direct Full Difference Circuit) circuit method,
- Perfectly balanced vacuum tube power amplifier design 90W output through Pure Class A amplification method
- Highly transparent sound completion through Zero Feedback circuit
- High-quality PCB that meets military specifications and has a long life and high temperature use of parts
- Adoption of dedicated large-capacity toroidal transformer corresponding to Pure Class A
- By incorporating the tower style, the transformer, power section, and signal amplification section are installed. Perfectly separated structure design
- 3 colors available: High-Gloss oak wood, Matte oak wood, Light wood
Specifications
○ Model Name : P150
○ Circuit Type : Vacuum Tube power amplifier
○ Circuit Design : Full Balanced Para Single Power Amplifier
○ Number of Channels : 1
○ Operating Mode : Class A
○ NFB : Zero Feedback

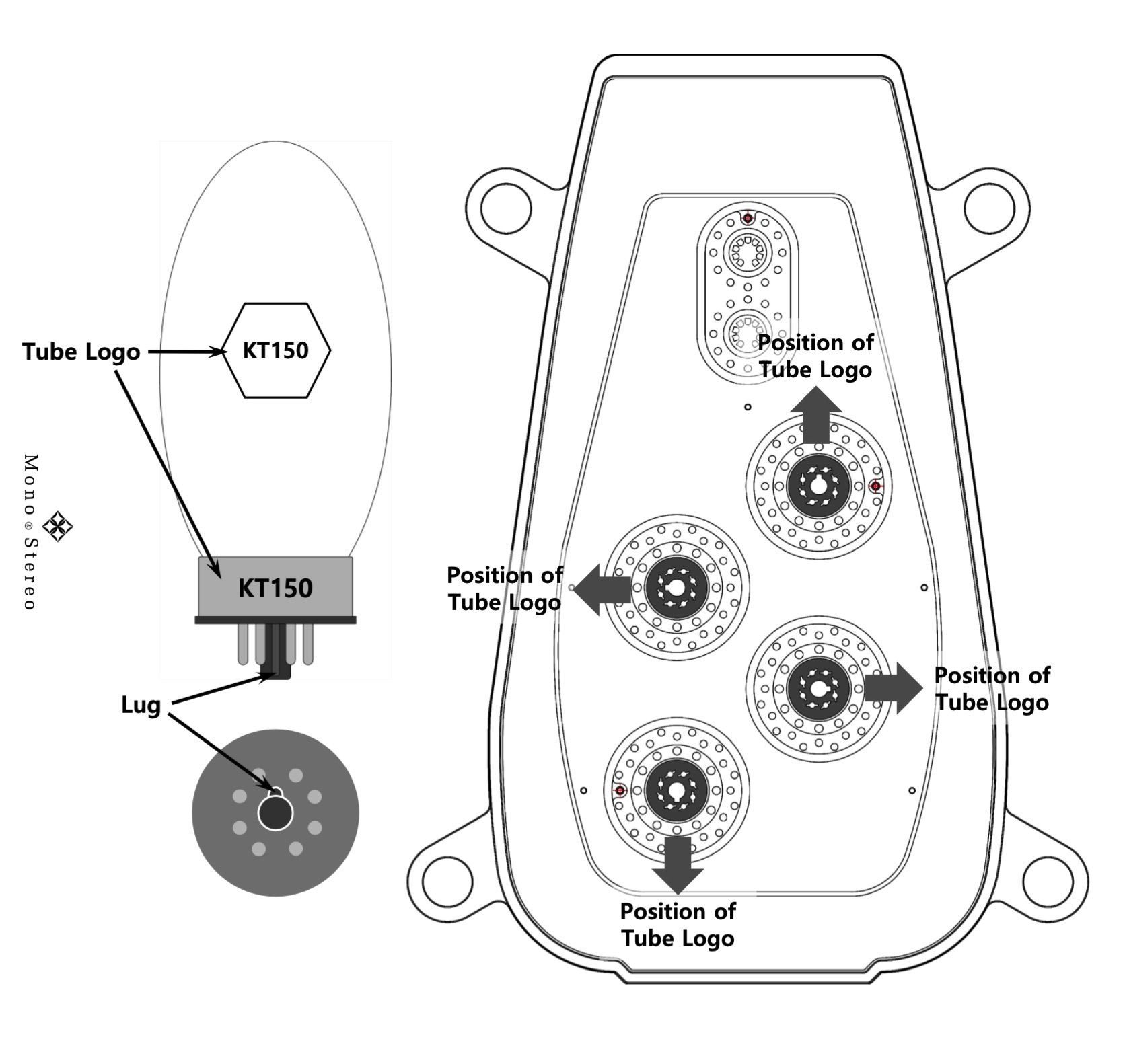

○ Used Tubes : KT150 × 4, 12AU7 × 2
○ Peak Output Power : 90W
○ Input Sensitivity : 920mV
○ T.H.D : 0.1%
○ SNR : 91dB
○ Frequency Response : 10Hz ~ 20kHz (-3dB)
○ Power Consumption : 980W
○ Input : 1 XLR
○ Output : 1 x Speaker Terminal
○ Main AC Power in : 220VAC ( 210~230VAC available )
○ Size (W x H x D)mm : 336 × 542 × 457
○ Weight : 35 kg (each)
