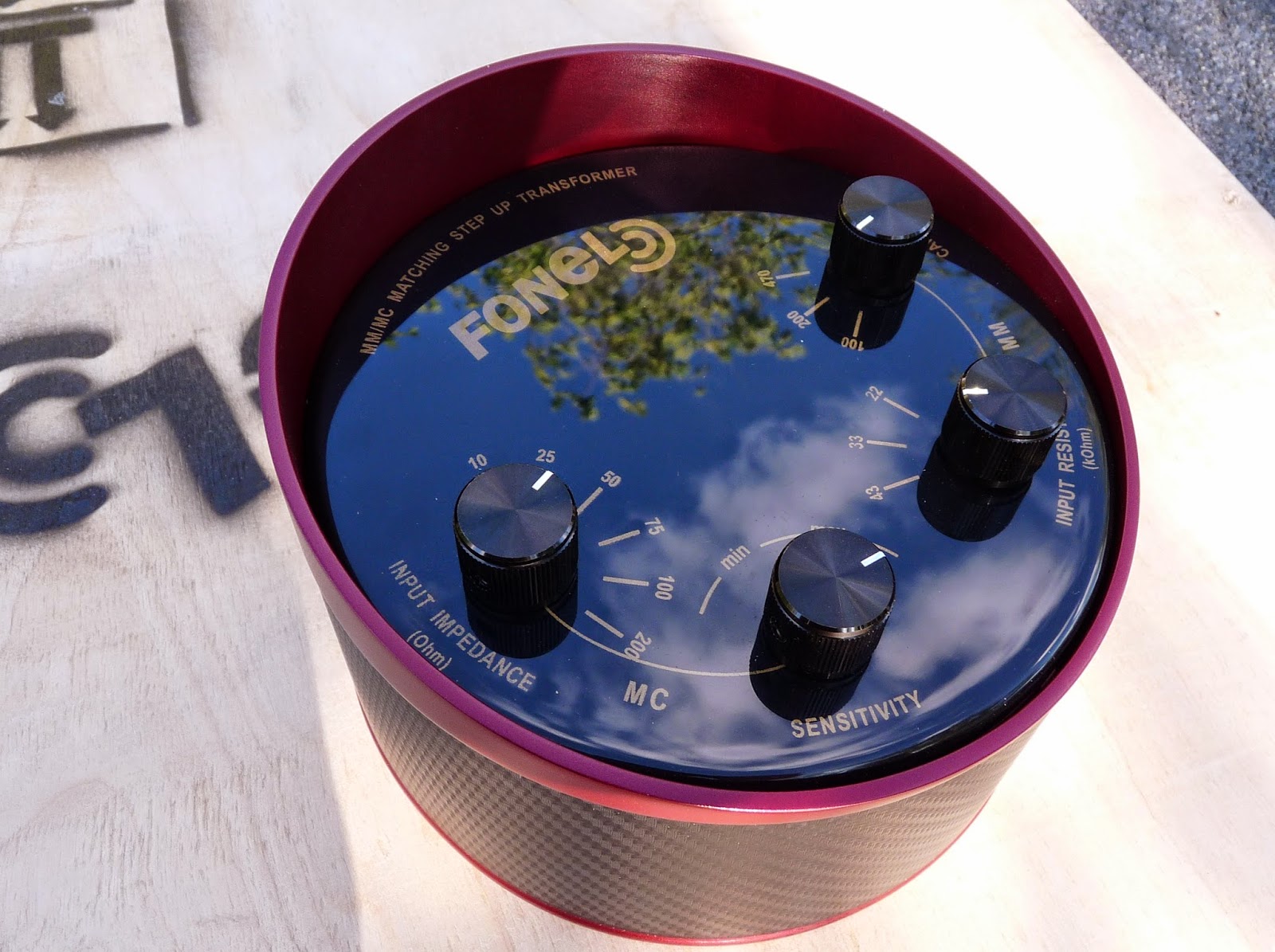

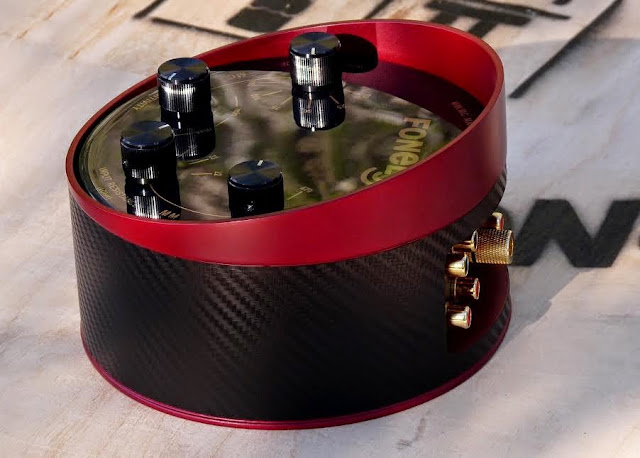

Fonel audio just sent in the official more in depth info about their NEW High-End MM/MC Matching Step up Transformer Victor. It spots following features:
– The Passive Attenuator for the best matching of MM / MC cartridges and Phono Preamps.
– 2 independent channels of adjustment:
MM channel with impedance of cartridges selection for optimal parameters and minimize of cables influence;
MC channel for the best matching of MM cartridges level and MM Phono Pre…
– Absence of active components and internal sources of distortion.
– The energetic and lively sounding the whole frequency range provided by carefully selected high-test copper wire and high-tech core.
– High linearity and minimal phase distortion in the whole frequency range.
– High efficiency of gain and slew rate.
– Excellent scene and great performance signal / noise ratio.
– Triple shielding and massive iron casing of the transformer get minimal distortion, noises and great lively sound.
Specification:
MM channel.
Range of input impedance: 47, 33, 22 (kOhm).
Range of input capacity: 10, 100, 330 (pF).
Transfer Ratio – 1.
MC channel.
Number of input impedance stages – 6
Range of input resistance: 5 … 50 ohms (Ohm).
Number of gain stages – 6
Maximum gain – 20 dB
Chassis: Triple massive iron casing
Transformator core: with a special nano – structure
Dimensions: 160 x 100 (mm)
Weight: 2.5 kg
r.p. 1750€
