Here is something vey interesting, that is of interest to all of us using the USB for digital audio. Over 15 years of R & D…
World’s first in-the-box solution to galvanically isolate the USB 2.0 bus in all speed modes. Low Speed, Full Speed and High Speed.
The Innovation
Previous isolators where limited to Full Speed (12 MBit/s) and Low Speed (1.5 MBit/s) transmission. This new product is capable of transmitting USB Hi-Speed (480 MBit/s) while providing full galvanic isolation of both the data and the power lines.

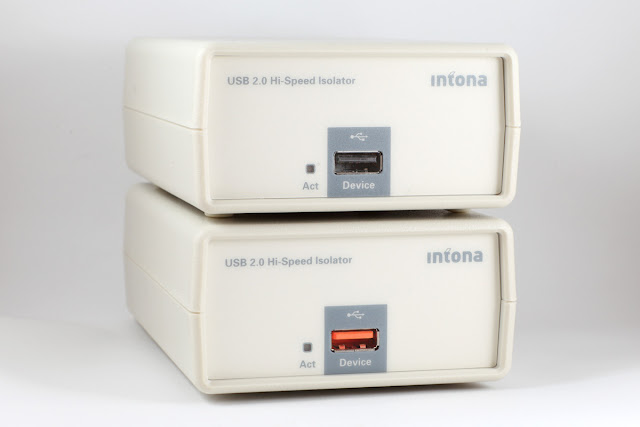

USB 2.0 Hi-Speed Isolator withstands up to 2.5kVRMS
This product is an ideal solution to break ground loops, avoid noise coupling and protect ports from power surges and voltage spikes in applications which require high speed USB transfers. The galvanic isolation barrier withstands potential difference up to 2500VRMS.
Features
Provides galvanic isolation to the USB bus
Compliant to USB 2.0 Hi-Speed (480 MBit/s)
Backwards compatible to Full Speed and Low Speed
Isolation withstands up to 2.5kVRMS
Advanced ESD protection (15kV IEC Air-gap Discharge)
Works out of the box, no drivers needed
Transparent to host and device: wide compatibility to all operating systems, embedded systems and devices
Works also with hubs and extenders
Supports all USB-specific transfers and modes
No additional round-trip latency
Powered by USB bus, no separate power supply
Ultra-quiet power rail isolation, linear regulation
300mA nominal (500mA max.) output current on isolated side
Connectors: host-side USB-B; device-side USB-A
Status LED for each port showing bus state and speed
Impedance controlled high-speed circuit design
National compliances: FCC, CE, RCM, ICES-003
IP 54 ABS housing
Dimensions: 105 x 76 x 36 mm
Engineered and manufactured in Germany
Applications
Industrial automation systems
Measurement devices
Environments requiring safety insulation
Machine protection
Broadcast and Studio
All applications requiring clean and stable USB connections with separate grounds
