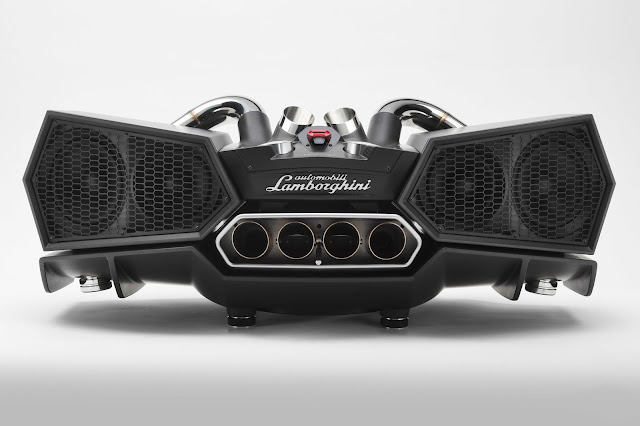

ESAVOX has been designed on the idea that style follows instinct. Meticulous research of the Lamborghini design has led to the creation of an object that immediately recalls the style of this renowned car designer. The original Lamborghini exhaust harmonises the dimensions of the docks, creating hexagonal effects and enhancing the selection of various materials. The design is based on single block cabinets in carbon and wood, recalling the most iconic features of Lamborghini cars.

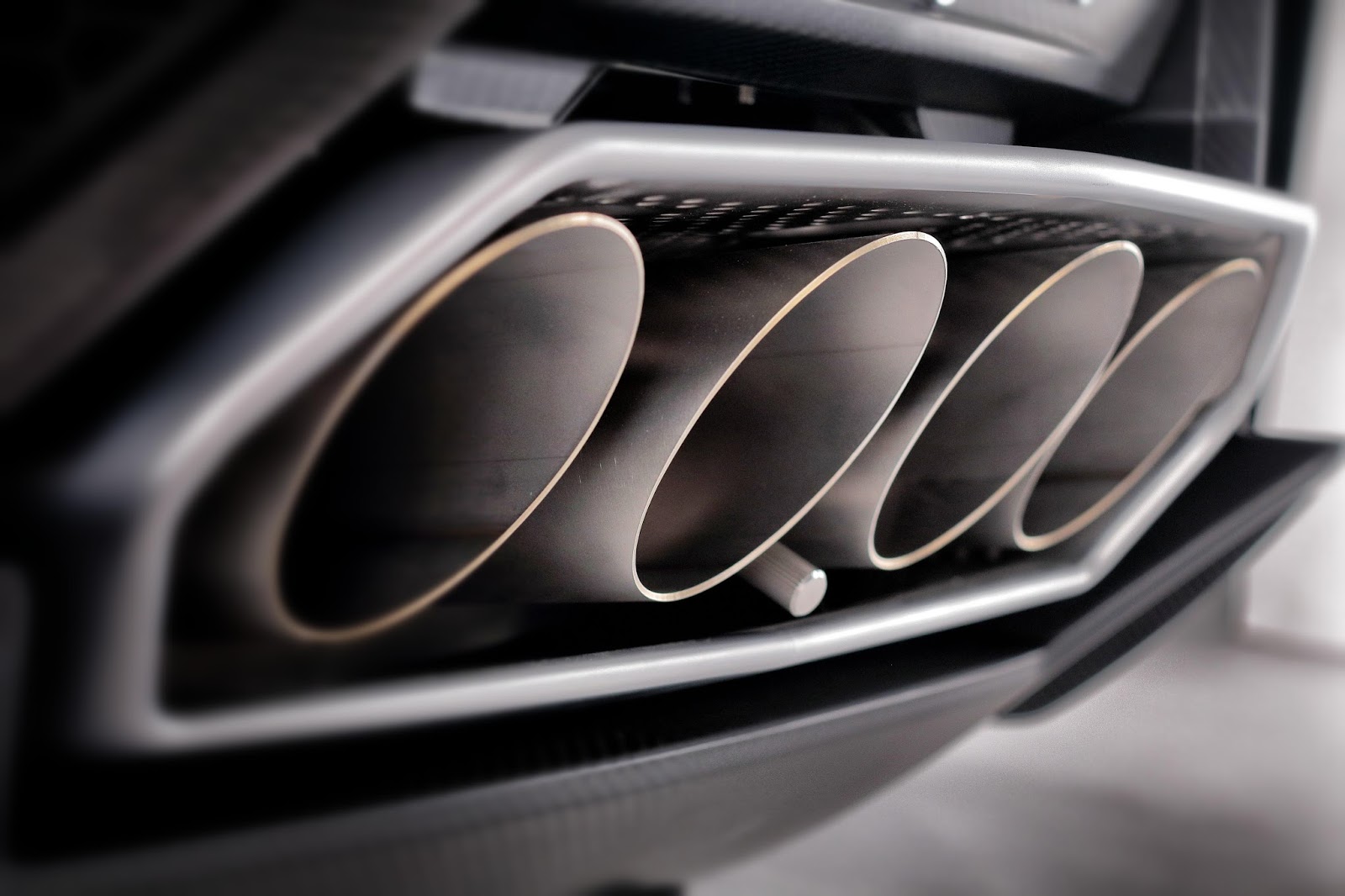

The central element is the original exhaust, which puts all elements into proportion, giving the impression of a real car.
TECHNIQUE
ESAVOX has been designed like an extreme car:
monocoque chassis in carbon Twill 245 3k, polymerised in autoclave at 6 bar, exhaust system with variable aperture to control pressure of the sub woofer, passive shock absorber system to dampen vibrations and tapered supports with variable height.

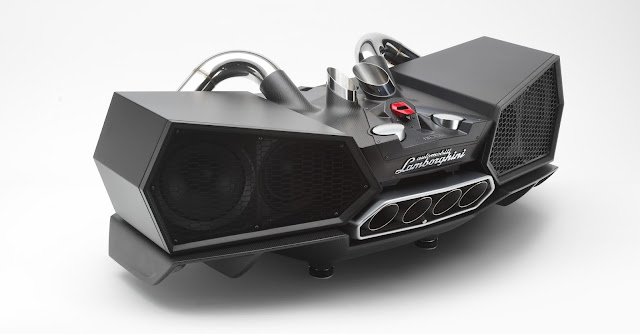

Two side cabinets, hand made with a hexagonal form and housing a 6.5-inch full range and 8-inch woofer in carbon, offering a solid base for a stereo experience that fills the entire room. The heart of the unit lies in a down firing subwoofer of 15 inches with high sensitivity, in Neodymium. Two 1-inch tweeters in Mylar complete the system, located inside the original exhaust unit.
Two stereo valve preamplifiers on input, an amplifier of 600 Watt and one of 200 Watt dedicated to the subwoofer all constitute the driving force of EsaVox. Frequency control is managed by 2 DSPs of 24 bit to optimise audio filtering.
By integrating Bluetooth® 4.0 technology with the traditional AUX connection, ESAVOX enables you to control music stored on your smartphone, tablet, or computer simply and in complete freedom.
FEATURES

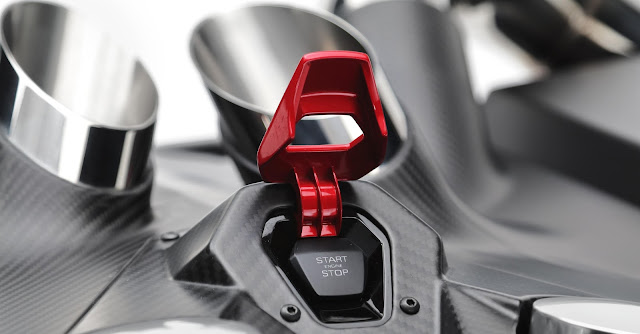

Automobili Lamborghini push button start
Master volume control
Subwoofer’s volume control
Bass reflex pressure control
Manual switch Bluetooth® – RCA
Thermal protection
DESIGNER
Mirco Pecorari
www.aircraftstudiodesign.com
WEIGHT & DIMENSIONS
53kg

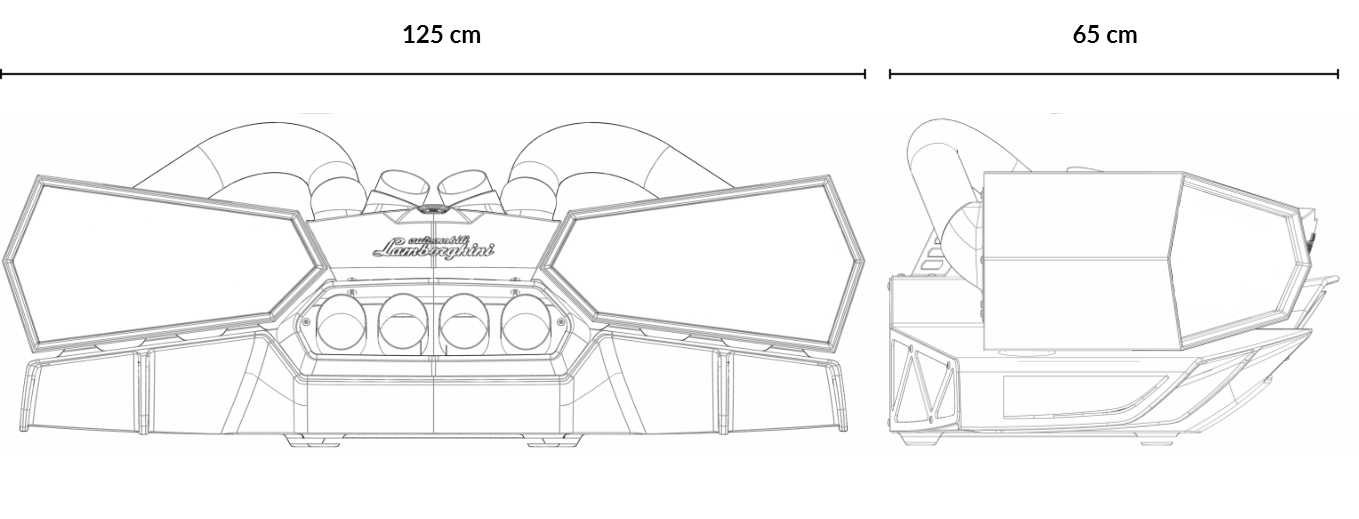

125 x 50 x 65cm W x H x D
POWER SUPPLY
100V – 240V ~ 50/60Hz – PCF
No load power consumption <0 .5w="" p="">
CONNECTIONS
Bluetooth® 4.0 – aptX® decoding
RCA
POWER AMPLIFIERS
2 valve pre-amplifiers for each channel
1 600 watt amplifier for tweeter, midrange and woofer
1 200 watt amplifier for the subwoofer
DIFFUSER DRIVER
2 tweeter 1″
2 full range 6.5″
2 woofer 8″
1 subwoofer 15″
REAL FREQUENCY RANGE
20 – 22.000 Hz
