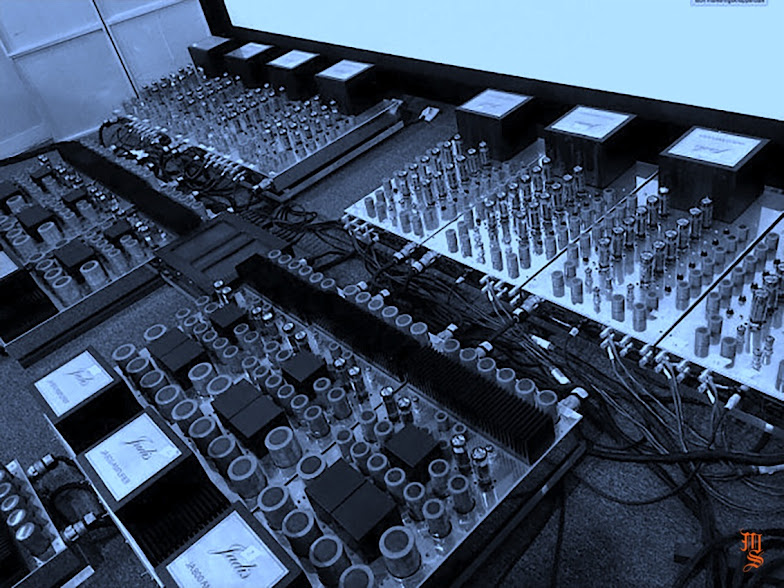

The mighty ($80,000) Jadis JA 800 six-chassis tube power amplifier with 400 W per channel. The two amplifiers can be bridged together to produce 800 watts of power per channel.
SPECIFICATIONS
– TUBE AMPLIFIER 400 W per channel (KT90)
– BRIDGED SYMMETRICAL MOUNTING 2 x 800 W
– Load impedance : adjustable 1 to 16 ohms
– Output power at 1 KHz :4 x 400 W or 2 x 800 W class AB
– Bandwidth at 160W at -3 dB : 5Hz to 20KHz
– Bandwidth at 1W at 0 dB : 5Hz to 60KHz
– Bias: automatic bias no adjustment
– Input sensitivity nominal: 900 mV
– Input impedance : >100Kohms
– Power supply AC input voltage corresponding to the country
– Power Consumption : 1500 Watts
– Maximum output power 2600 Watts
TUBES / CHANNEL
– 12 x KT90
– 1 x 12AX7/ECC83/7025
– 3 x 12AU7/ECC82
TUBES/ POWER SUPPLY
– 4 x KT90
– 2 x EF86
DIMENSIONS
51,5 x 21,5 x 22 cm
WEIGHT
420 Kg
