M2Tech just announced the release of two new DAC’s in the Evo Two series.
Evo DAC Two

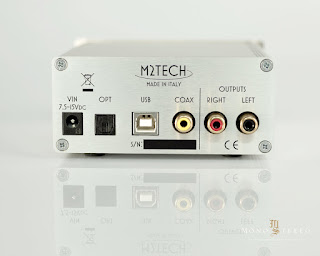

The Evo DAC Two is a very cost-effective, high performance D-to-A converter with USB 2.0 Audio Class compliat port. Based on the high performance ESS Sabre ES9010K2M conversion IC, the DAC Evo Two also sports a coax input and a ToslinkTM optical input.
The Evo DAC Two handles up to 384/32 PCM and up to DSD256 on the USB connection (192/24 PCM on coax and 96/24 on optical). The Sabre exclusive de-jitter feature allows for exceptionally high performance with every input and format.
The analog stage is made around a low-noise opamp, using polypropylene capacitors.
The Evo DAC Two may be powered by the USB bus or by any external power supply with 7.5VDC to 15VDC output. The M2Tech Evo Supply Two is recommended.
The Evo DAC two is remote controlled, with a cute display showing all the relevant information. The remote control allows for setting volume, balance and mute, along with input selection. Moreover, various operation parameters can be set by the menu.
The Evo DAC Two is HID compliant, allowing the user to control the player app on the computer by the DAC’s remote control.
Sampling frequency: 44.1kHz to 384kHz (PCM); 64x to 256x (DSD) PCM resolution: 16 to 32 bits
Output voltage: 2.5Vrms
THD+N: 0.008%
SNR: 105dB (20Hz-20kHz, @1kHz, A weighted) Supply voltage: 7.5VDC to 15VDC
Supply current: 250mA
Size: 105(w) x 46(h) x 104(d) mm
Evo DAC Two Plus
The Evo DAC Two Plus is a cost-effective, very high performance D-to-A converter with USB 2.0 Audio Class compliat port. Based on the high performance ESS Sabre ES9018K2M conversion IC, the DAC Evo Two Plus also sports a coax input, a ToslinkTM optical input and an I2S input in PS Audio standard on HDMI connector. Moreover, an external clock input on 75 Ohms BNC connector is available.
The Evo DAC Two Plus handles up to 384/32 PCM and up to DSD256 on the USB ans I2S connections (192/24 PCM on coax and 96/24 on optical). The Sabre exclusive de-jitter feature allows for exceptionally high performance with every input and format.
The analog stage is made around high-performance, low-noise opamps made for audio, using polypropylene capacitors.
The external clock input recognizes every standard clock and uses a dedicated no-jitter PLL receiver to avoid the clock degradation. A dedicated optical output feeding clock information allows for a seamless connection with the Evo Clock Two.
The Evo DAC Two Plus may be powered by the USB bus, by the stock 9VDC wall adaptor or by any external power supply with 7.5VDC to 15VDC output. The M2Tech Evo Supply Two is recommended.
The Evo DAC Plus two is remote controlled, with a cute display showing all the relevant information. The remote control allows for setting volume, balance and mute, along with input selection. Moreover, various operation parameters can be set by the menu.
The Evo DAC Two Plus, together with the Evo Clock Two and the Evo Supply Two, makes for a high-end digital setup at an affordable price.
The Evo DAC Two Plus is HID compliant, allowing the user to control the player app on the computer by the DAC’s remote control.
Evo DAC Two Plus specifications:
Sampling frequency: 44.1kHz to 384kHz (PCM); 64x to 256x (DSD) PCM resolution: 16 to 32 bits
Output voltage: 2.5Vrms
THD+N: 0.0005%
SNR: 120dB (20Hz-20kHz, @1kHz, A weighted)
External clock: 44.1kHz to 24.576MHz (3.3Vpp @ 75 Ohms) Supply voltage: 7.5VDC to 15VDC
Supply current: 350mA
Size: 105(w) x 46(h) x 104(d) mm
