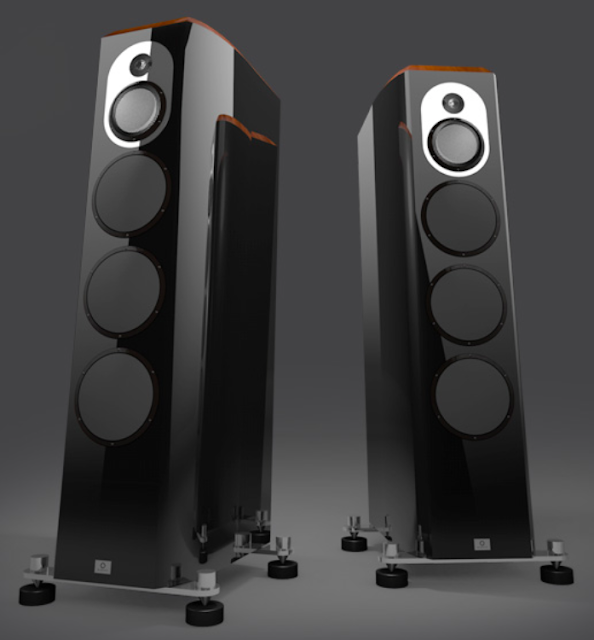

Marten Supreme Edition of the Minugs line, might not be well known to everyone. It uses quite some trickled down technology from the Marten Coltrane Supreme 2…
“Mingus Supreme Edition is a special version of our model Mingus Quintet. It features all the great qualities that Mingus Quintet has but it also has the Jorma Design flagship series Statement cables inside. The cabinet is also different in the way that it has a solid wood top which provides for extreme rigidity.
The First order crossover – in combination with the driver units – gives 100% time- and phase coherence and coincident.
The extreme rigid and resonance free cabinet have the same shape and similar performance as Coltrane Supreme 2.
You get 90% of the Coltrane Supreme 2 performance to a fraction of the price.
The Cell Concept driver units are the same as in Coltrane Supreme 2.
The damping, polished stainless steel plate around tweeter and midrange unit is making use of the same technology as Coltrane Supreme 2.
The beautiful walnut wood veneer and the polished piano laqueer finish is handcrafted to perfection.
The stands made of polished stainless steel. The cones and pucks are made by Marten. The Bird SE model is delivered in wooden crates.”
Cell Concept
CELL concept drivers
Our joint venture with Accuton represents a new milestone in hi-fi history. Accuton developed the unique CELL concept drivers used within the Coltrane Supreme 2. Tweeters, midrange and bass drivers have identical acoustic centres, delivering flawless phase and time coherency. The domes in the units are perfectly rigid, for impeccable signal settle and piston behaviour. And there is incredibly low distortion, in the magnitude of electronic devices, even at high levels.
• Steady decay of higher order harmonics
• High bandwidth.
TECHNICAL SPECIFICATIONS
Frequency range / 24-100000 Hz +-2dB
Power rating / 300 W
Sensitivity / 87 dB / 1 m / 2.83V
Impedance / 6 ohm (3.4 Ohm min)
Type / 3-way bass reflex
Drive units /
3×7” aluminium sandwich , 1×5” ceramic, 1×0.75” diamond
Crossover frequency / first order: 370 & 4000 Hz
Terminals / WBT
Internal wiring / Jorma Design
Cabinet / 25-40 mm:s fibre laminate cabinet
Stands / Brushed stainless steel with Black Diamond Racing pucks and cones
Dimensions (WxHxD) /
28 cm x 107 cm x 38 cm (11″ x 42.1″ x 15″)
Net weight / 60 Kg (132 lbs)
FINISHES
Piano Walnut, Piano Black
