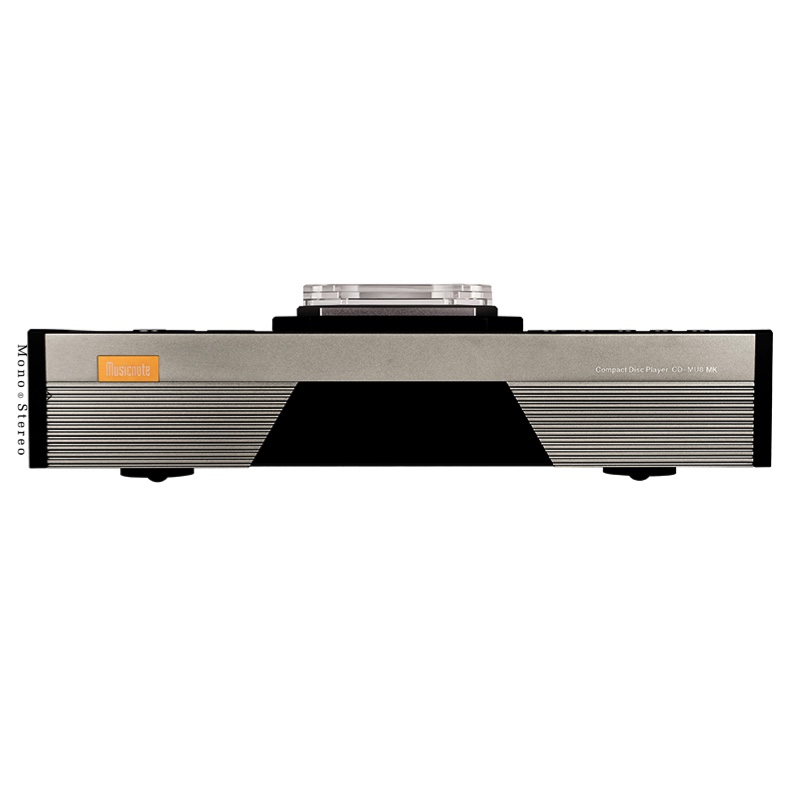

The Musicnote CD-MU8 is crafted using carefully selected materials, featuring dual ES9038Q2M chips known for their excellent resolution. The op-amp employs the high-quality OPA2604, which offers a significant performance improvement over alternatives like the LME49720 and OPA2134. This op-amp is also notably more expensive, reflecting its superior quality.
For capacitors, the CD-MU8 uses Nichicon’s renowned green, gold-letter KG, KZ, and other MUSE capacitors. These high-grade components contribute to exceptional performance, delivering outstanding high-frequency transparency, deep low-frequency extension, and rich midrange fullness—characteristics made possible by using premium industrial-grade capacitors.
The amplifier output stage implements a 6H3 tube, that ensures a smooth, immersive listening experience.
Basic parameters
- System: CD Digital Audio System
- Power supply: AC 220V 50HZ
- Power consumption: 35W (for user reference only)
- Size: 430 (width) X110 (height) X 330 (width) mm
- Net weight: 12 kg
- Working temperature: +5~+35℃
- Working humidity: 5-90% (no condensation)
- Output level: 2.0V
- Reading time: ≤5 seconds
- Digital coaxial output characteristics: in line with S/PDIF standards
- Frequency response: 20HZ-20KHZ, ±0.5dB
- Signal to noise ratio: 110dB
- Dynamic range: 110dB
- Total harmonic distortion: 0.0025%
