The brand new (USD 6,300) DENAFRIPS TERMINATOR -PLUS DAC builds on the success of the TERMINATOR DAC. DENAFRIPS push the boundaries further in all aspects to reach new heights.

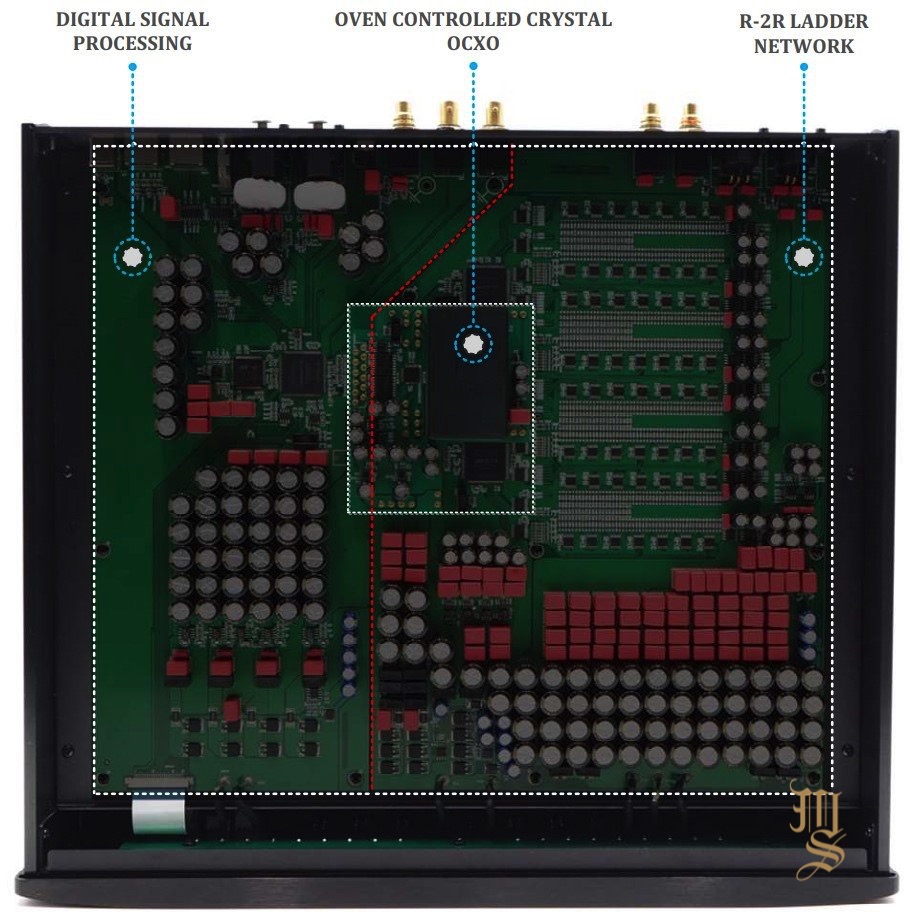

The TERMINATOR-PLUS Digital Processing Board and R-2R ladder network arrays are completely isolated. The two boards are physically linked by the OCXO module. The physical isolation yields even lowered noise-floor and achieved higher signal to noise ratio.
OVEN CONTROLLED CRYSTALS – OCXO
“The BEST clocks are the clocks inside the DAC”.
The TERMINATOR-PLUS is equipped with two OCXO at audio frequencies 45.1548Mhz, 49.152Mhz. Encapsulated in a metal casing, located at the centre of the DAC, these OCXO are specially designed for high-end audio applications with ultra-low phase-noise and ultra-accuracy. The OCXO are powered by the complete redesigned power supply circuitry (encapsulated, shielded, underneath the main boards), supplying constant current to the OCXO. These power reserves ensure linearity and stability of the OCXO.
ADAPTIVE FIFO BUFFER RECLOCKING
The DENAFRIPS approach to address the jitters issue by the FIFO BUFFER RECLOCKING. The adaptive FIFO buffer store the digital audio data in the memory. These data are read from the memory using the ultra-low phase noise, ultra-accuracy OCXO, located right in the DAC.
The data bits are converted to analogue signal by the true balanced R-2R ladder network arrays. The linearity of the conversion is guaranteed by the high-precision thin film resistors, with low thermal effect temperature coefficient of the low 10/15ppm.
The top-quality performance of the TERMINATOR-PLUS DAC is for the serious audiophile who seek the very last bit of ultimate-refinement.
It is a state-of-the-art Digital to Analog Converter, one of the finest available on the market.
Description Parameters
R-2R DAC
Proprietary R2R + DSD Architecture
True balanced 26BIT R2R + 6BIT DSD (32 steps FIR Filters)
Matched Precision Thin Film 0.005% R-2R Network Arrays
Highlight
Encapsulated Ultra Low Noise Power Supply
High-end Oven Controlled Crystals OCXO
Total isolation of Digital and R-2R Boards
DSD1024, PCM1536 Supports On USB & I²S Input
Proprietary USB Audio Solution via STM32F446 Advanced AMR Based MCU
Licensed Thesycon USB Driver For Windows Platform
Driverless On Mac & Linux
Dual AES/EBU Input Supports
Sharp/Slow Filters Option
I²S Pinout Configuration
I²S DSD Channel Swap Configuration
DSD
DSD64-DoP On All Input
DSD1024 On USB & I²S Input Only
PCM
24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz On All Input
1536kHz On USB & I²S Input

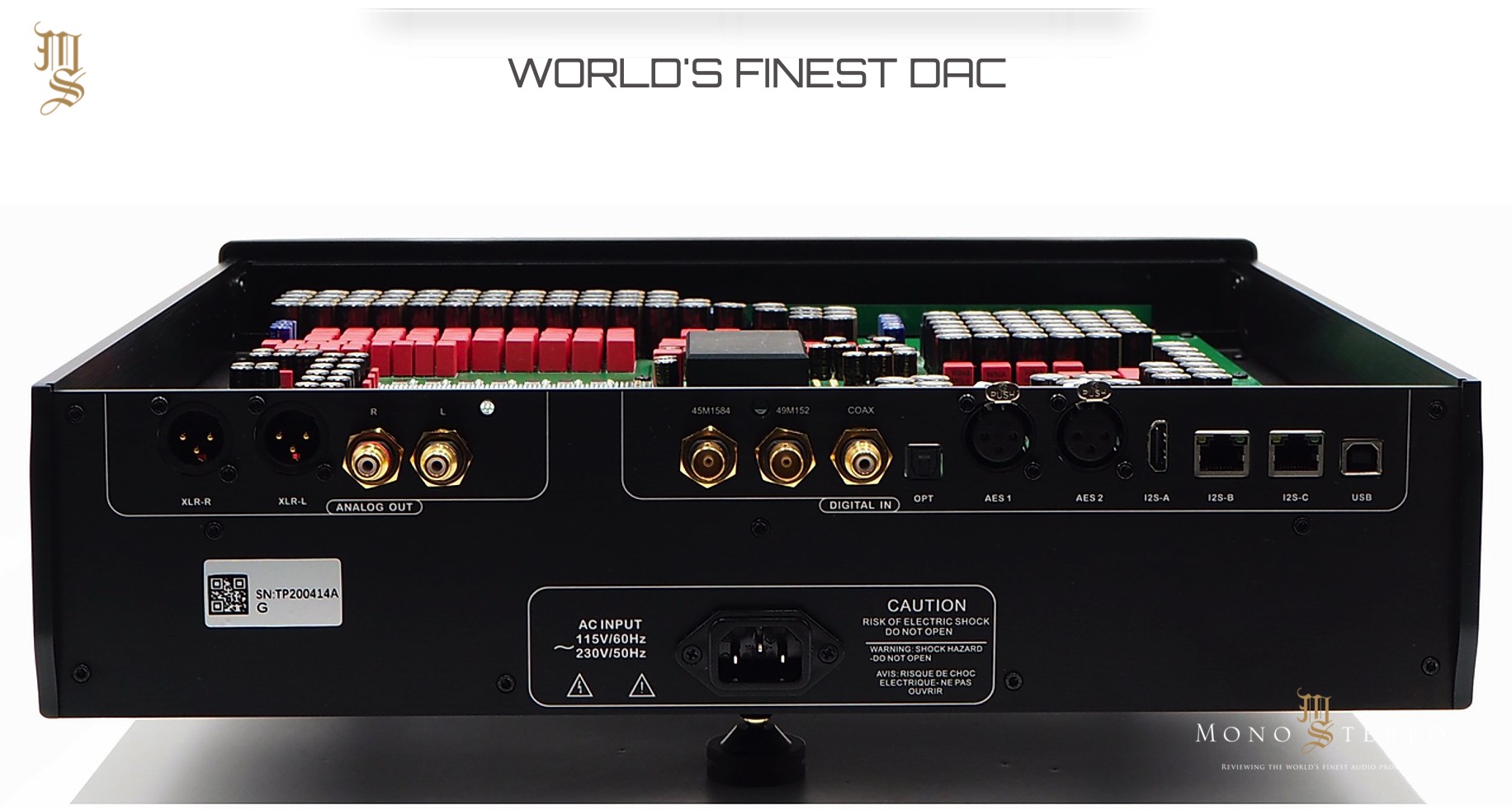

Digital Input
Coax via RCA
TOSLink x 1
AES/EBU x 2 (Dual AES/EBU L/R Channel Input Supported)
USB
I²S via HDMI LVDS
I²S via RJ45 LVDS
I²S via RJ45 LVCMOS
Analog Output
RCA at 2.2Vrms, 625 Ω
XLR at 4.4Vrms, 1250 Ω
Sampling Mode
Non-Oversampling NOS
Oversampling OS
AC Power Requirement 110-240VAC, 50/60Hz
Power Consumption ≤20W
Frequency Response 20-40KHz -0.2dB
THD+N 0.0010%
S/N Ratio 127dB
Dynamic Range >132dB
Stereo Crosstalk -110dB
Dimension 430 x 380 x 105 mm
Weight 19 Kg
Color Silver / Black
Warranty 36 Months
