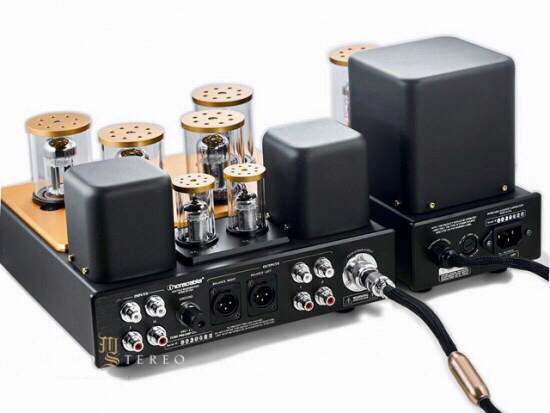

New (USD$6,000) Increcable Class A TPC-1HP tube preamplifier with proprietary CC circuit, GZ34 tube rectifier etc.
- Seperated Power Supplier
- GZ34 rectifier tube power supply
- Comprehensive manual supplied
- Hand wired point to point
- Class A Triode front end Output circuit
- Wide Frequency Respnose / Low Distortion Tertiary custom output transformers (10Hz to 65KHz)
- Exclusive “Closing Coupled Circuit” for our tailor-made output transformers
- 3 potted transformers to reduce transformer noise
- Japan ALPS Blue volume pot
- Jensen Hi Fi quality audio capacitors
- DCT3 SIP Silver Ion Plated 6N OCC power cord
- DCT3 Pure Silver or SIP Silver Ion Plated PTFE audio cable
- Double silver plated, double rhodium plated DCT INPUT & OUTPUT, GROUNDING terminals
- DCT INPUT RCA x 2 and OUTPUT RCA terminals x 2 and XLR x 1 which are 4N OFHC with inner silver layer is 1.5 microns thickness and the outer rhodium layer is 0.5 microns thickness
- 1.2 Watts power output for Headphone
- DCT IEC power input
- High technology soldering process with LEAD-FREE 2% SILVER SOLDER ensures consistency
- CE ROHS
TPC-1HP TECHNICAL SPECIFICATIONS
- Frequency Response
- +0, -0.5dB from 20Hz to 20,000Hz
- +0, -3dB from 10Hz to 100,000Hz
- Total Harmonic Distortion
- 0.005% maximun from 20Hz to 20,000Hz
- Rated Output
- 5V Balanced, 2.5V
- Maximum Voltage Output
- 20V RMS Balanced, 10V RMS Unbalanced
- Sensitivity (for rated output)
- High Level, 450mV Unbalanced, 900mV Balanced
- Signal To Noise Ratio (A-Weighted)
- High Level – 107dB (Below rated output)
- Sensitivity
- High Level: 450mV for 2.5V rated output
- Power Amp. Input: 2.5V for rated output
- A-Weighted Signal To Noise Ratio
- High Level: 97dB below rated output
- Power Amp.: 110dB below rated output
- Input Impedance
- High Level – 44K ohms Balanced 22K ohms Unbalanced
- Input Impedance
- High Level, 100K ohms
- Maximum Input Signal
- High Level, 20V Balanced, 10V Unbalanced
- Voltage Gain
- High Level to XLR, 1&2: 15dB
