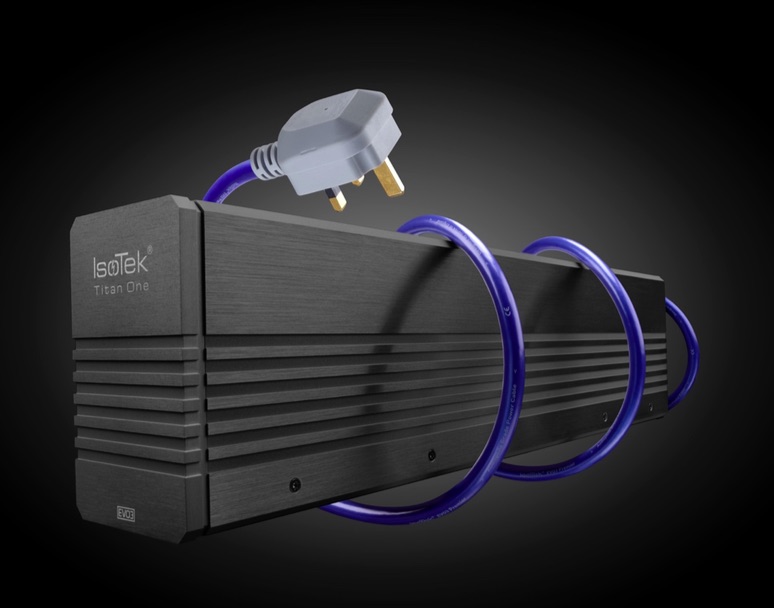

IsoTek has launched the EVO3 Titan One from the Multi-awarding winning Mosaic Series. The Titan One is a highly compact state of the art high current low impedance power cleaner designed for high amperage equipment, such as power amplifiers, subwoofers and active loudspeakers. It features the award-winning Direct-Coupled© Design network trickled down from IsoTek’s Ultimate Series Super Titan, but reconfigured in a more practical and compact form factor. Although less powerful than its bigger brother Titan One is still capable of delivering 3680W of continuous power to a single rear outlet. Multiple Titan One units can be linked together and positioned side by side on an equipment support rack using the “link cable”, allowing you to avoid the need for multiple power cables from wall sockets for every unit.
Priced at £1,795.00 the Titan One is housed in an extruded and machined aluminium chassis, it has a dedicated single outlet that delivers a clean high current, low impedance and low distortion mains supply.
Key Features and benefits:
• Dedicated single outlet delivers totally clean low impedance, high current power for power amps, monoblocks, etc.
• Removes both Common Mode and Differential Mode mains noise
• Dedicated single outlet delivers a clean high current, low impedance, low distortion mains supply
• Unique single cell mains cleaning system that reduces Radio Frequency Interference (RFI) by
82dB (50 ohms standard) down to 5Hz frequency range
• Internal wiring; solid core silver plated Pure Copper by Ohno Continuous Casting (PCOCC) with
virtually an air dielectric encased in an outer sleeve of FEP (Fluorinated ethylene propylene)
• Suitable for all audio or AV systems
• Compact and elegant design measuring just 125mm in height and 75mm in width which allows six
units to be placed side by side on an equipment rack
• Combine Titan One with Genesis One for a Full system upgrade
• Link units together so that only one input power cable is needed from the wall socket
• Supplied with IsoTek’s award-winning Premier power cable
• A total of six Titan or Genesis Ones can be positioned side by side to create a rack width unit
• Available with UK, EU, US, Australian, Swiss and South African outlets.
Technical Specification:
Number of outlets
1+ linking outlet
Outlet (sine wave generation)
100W
Mains inlet
10A IEC C14
Mains voltage
100 to 240V depending upon model
Mains frequency
50 to 60Hz depending upon model
Dimensions
75 x 125 x 470mm (W x H x D)
Weight (boxed)
10Kg
About Direct Coupled Design©
Direct Coupled Design© concept, initially developed for the Titan and further enhanced for Super Titan to ensure optimal high-current filtering. Put simply, if a test meter were connected to Titan One, the reading would be akin to a very low resistance piece of wire from input to output. Other manufacturers use isolation transformers as part of their mains conditioning solutions, but IsoTek’s Direct Coupled Design© eschews these devices because they break the cardinal rule of maintaining transient power.
IsoTek’s proprietary KERP© technology secures a pure, symmetrical signal path through the unit, using the Titan One for each piece of equipment eliminates crosstalk and improves component-from- component isolation. In addition, a massive 135,000 Amps of instantaneous and repeatable surge protection safeguards valuable audio equipment against spikes and surges in the mains supply – no other device on the market can match this level of protection.
