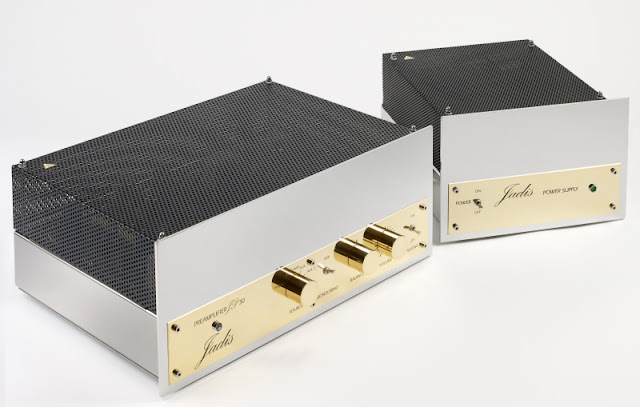

NEW JADIS JP30 MC MKIII TUBE PREAMPLIFIER

The NEW Jadis JP30 MC MkIII tube preamplifier brings many improvements like Lundhal step-up transformers for MC phono, high voltage tube regulation, newly designed PC board (double side, 70µ copper) and stage output capacitor specially designed for Jadis.

SPECIFICATIONS

Type: MM/MC/Line with separate power supply
GainLine input: 26dB/ MM: 59dB / MC: 80dB @ 1kHz
Input type: 1x MM, 1x MC, 3x Lines
Bandwidth: 5Hz->75 KHz, Phono: RIAA
Number of chassis: 2x
Tubes: 6 x ECC83, 1x EF86, 1x EL84
Dimensions: 26×31.8×17.1 cm Power Supply – 43 x31.8×17.1 cm M
Weight: 25 kg
Consumption: 37VA
