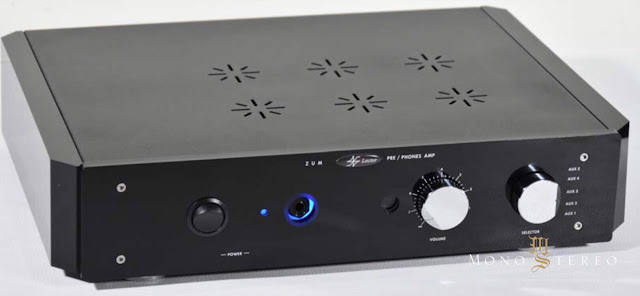

NEW LECTOR AUDIO ZUM-H HYBRID HEADPHONE AMPLIFIER

Lector Audio ZUM-H new hybrid headphones amplifier comes with the tube triode input and lateral mosfet output buffer. All circuits are pure class A and there is user selectable hi- power or low power output. The double power output was designed for low-efficiency headphones. Tube circuit is built around Lector exclusive optical bias cathode control.

Highlights

-Four independent power supply section for ultra low noise.
-All circuits from input to output are in pure class A.
-The ZUM-H can drive any type of headphones from low impedance to high impedance.
-Hi quality components selection and great value capacitance reservoir for mosfet output.

OPTIONAL & CONVENIENCE

– Remote control handset for volume control ( series) – Tube triode driver as 12BH7A ( series)
– 5 line inputs selection ( series)
– 2 line direct output line monitor ( series)
– 1 line output under volume control, line input passive output ( series) – 1 output power headphones connector as standard 6.3 mm
– Tube triode driver alternative as ECC-802S ( optional)
– Lateral panels as wood ( cherry) or black plexy ( optional)
– spikes feet x 3 pcs ( optional)
– AcMains:240-110-100Vac 50/60Hz 70V/A
– dimension:400(L)/440(Lwithpanels)x300(D)x85(H)mm; weight7Kgnet,gross8Kg.

www.lector-audio.com
