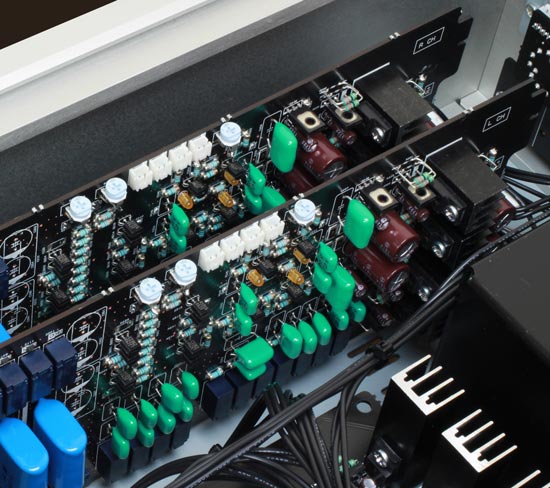

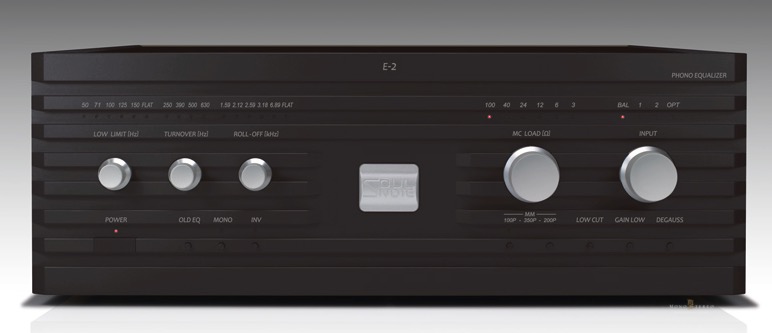

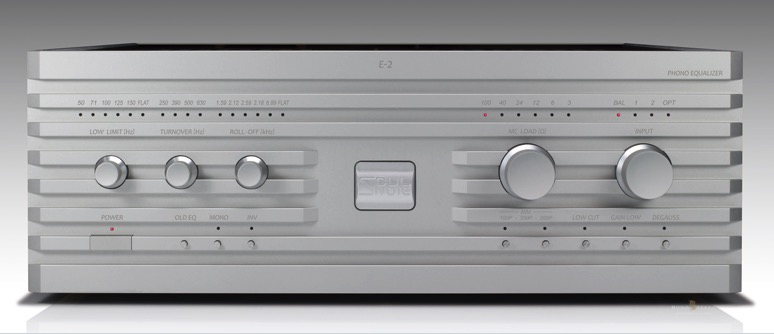

Interesting… SOULNOTE – Japan have just released all new phono preamplifier with dedicated optical input, that is directly compatible with DS Audio optical cartridges. E2 phono equaliser uses non-feedback differential emitter bypass circuit, that greatly reduces the impedance. Without the need for phase compensation and band limitation, fully balanced non-feedback circuit exploits the merits of photoelectric cartridges by introducing the excellent transient responsiveness and shockingly natural/vivid music atmosphere.
Specifications
Input sensitivity MC: 0.4 mV, MM: 4 mV, OPT: 50 mV
Gain MC: 72 dB, MM: 52 dB, OPT: 30 dB
Rated output voltage BALANCE: 2.8 V, UNBALANCE: 1.4 V
RIAA deviation ± 0.2 dB
MC load resistance 3 Ω, 6 Ω, 12 Ω, 24 Ω, 40 Ω, 100 Ω
MM load capacity 100 P, 200 P, 350 P
MM load resistance 47 KΩ
Equalizer frequency ROLL-OFF [KHz] 1.59, 2.12 (RIAA), 2.59, 3.18, 6.89, FLAT
Equalizer frequency TURNOVER [Hz] 250, 390, 500 (RIAA), 630
Equalizer frequency LOW LIMIT [Hz] 50 (RIAA), 71, 100, 125, 150, FLAT
Power supply voltage AC 100 V 50/60 Hz
Power consumption 50 W (J60065)
Maximum external dimensions Body: 430 (W) x 160 (H) x 410 (D) mm
Weight Approximately 20 kg
Accessory spike, power cable
JAN code premium · silver: 4580197834412 premium · black: 4580197834405
Price: 550 000 YEN
