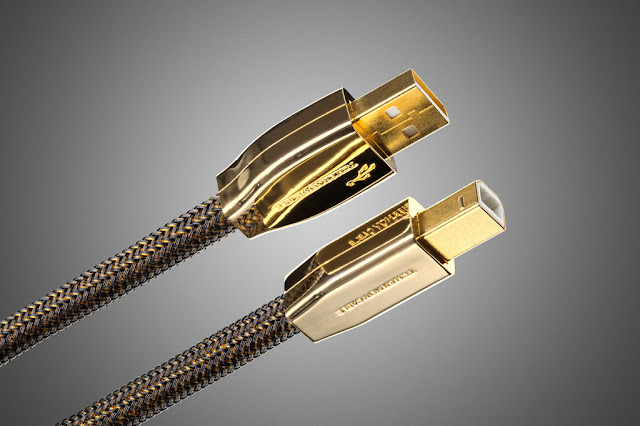

“Our new top-of-the-line Referenece USB A-B IC is designed and engineered with a desire to achieve the highest musical fidelity within the framework of our proprietary class-leading insulation and shielding techniques. It allows the full utilization of the USB Audio 2.0 capabilities including the transmission of a multichannel high resolution digital audio data flow.”
“The enlarged 0.5 mm² conductors and their advanced multi-stranded arrangement ensures less mechanical stress and lower and lower susceptibility to radio interference. The individual 3-layer CAFPE® conductor insulation with superior dielectric consistency significantly lessens the overall capacity and signal energy losses.
The reinforced common shielding with copper foil and BRC braid dramatically reduces the electromagnetic radiation especially at high transmission rates as well as protecting from external electromagnetic field influence over the digital signal data flow. Individual shielding of the signal and power conductor pairs decreases interference, eliminates transmission errors and provides noise free power for external USB devices. The further shielding evolution results in a widened frequency bandwidth and expanded dynamic range. The new Reference USB A-B IC is jacketed with a unique highly elastic thermoplastic polyurethane Elastollan® for unrivalled insulation and vibration absorption. The new Reference solid metal cased USB A-B connectors with fully gold plated beryllium copper contacts enhance shielding and further the meticulous product visualization. The Reference USB A-B IC sets new industry-leading standards for precision craftsmanship and sound quality without equal.”
TECHNICAL SPECIFICATIONS
Type: USB Audio 2.0 digital interconnect cable
Signal conductor: 2 x 0.50 mm² (19 х 0.18 mm) multi-stranded BRC conductors
Power conductor: 2 x 0.08 mm² (7 х 0.12 mm) multi-stranded BRC conductors
Insulation: 3-layer CAFPE®
Shielding: each signal and power conductor pair is separately shielded by copper foil with integral multi-stranded BRC drain wire; external common shield: inner layer – copper foil, outer layer – >90% BRC braid
Jacket: thermoplastic polyurethane (TPU) Elastollan®
Protective cover: nylon sleeve
Outer diameter: 8 mm
Тermination: USB A-B with precision-made solid metal cased Reference connectors
Available: in standard terminated lengths
Country of origin: designed and engineered in Russia, manufactured in China
Available Terminated Lenghts:
1 х 1.00 m
1 х 1.65 m
1 х 2.65 m
1 х 5.00 m
Retail price is 320 EUR with VAT for 1 m (in Europe)
