Step into the realm of sonic mastery. Orpheus Lab new amplifier epitomizes the marriage of power and precision, delivering a symphony of sound for a transcendent listening experience.
Crafted with passion and dedication to perfection, this amplifier strikes the ideal balance between raw power and refined control. From thunderous lows to crystalline highs, every note is reproduced with remarkable purity, revealing textures and layers of detail previously unheard. Create your own sound sanctuary, where music comes vividly to life.

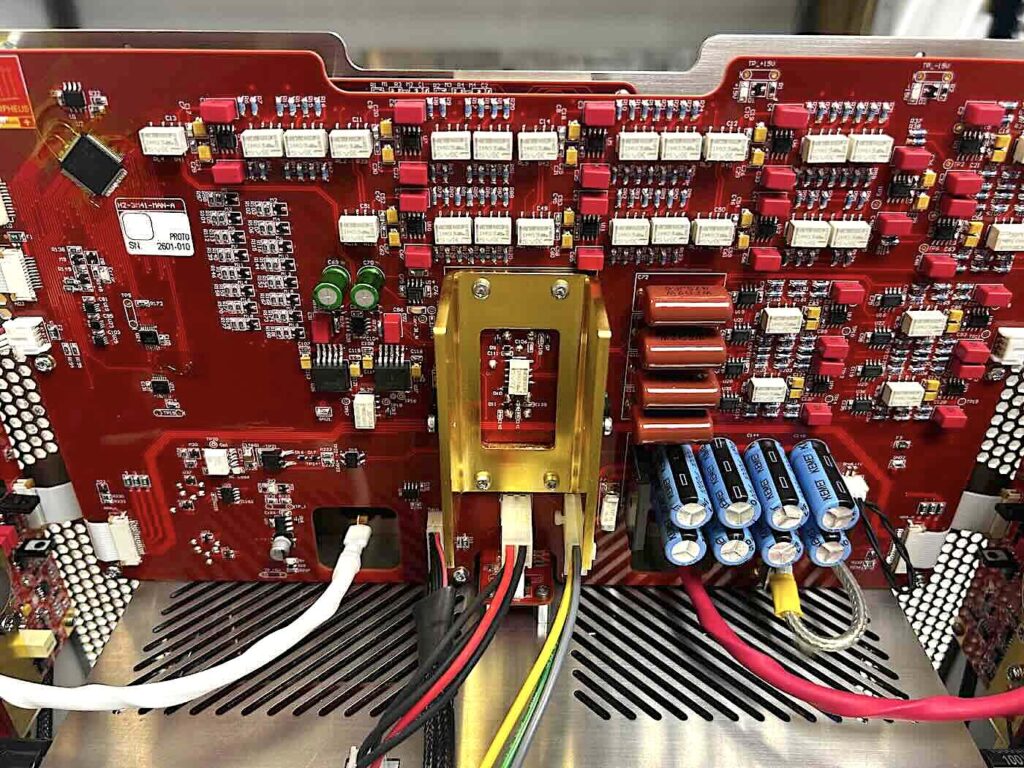

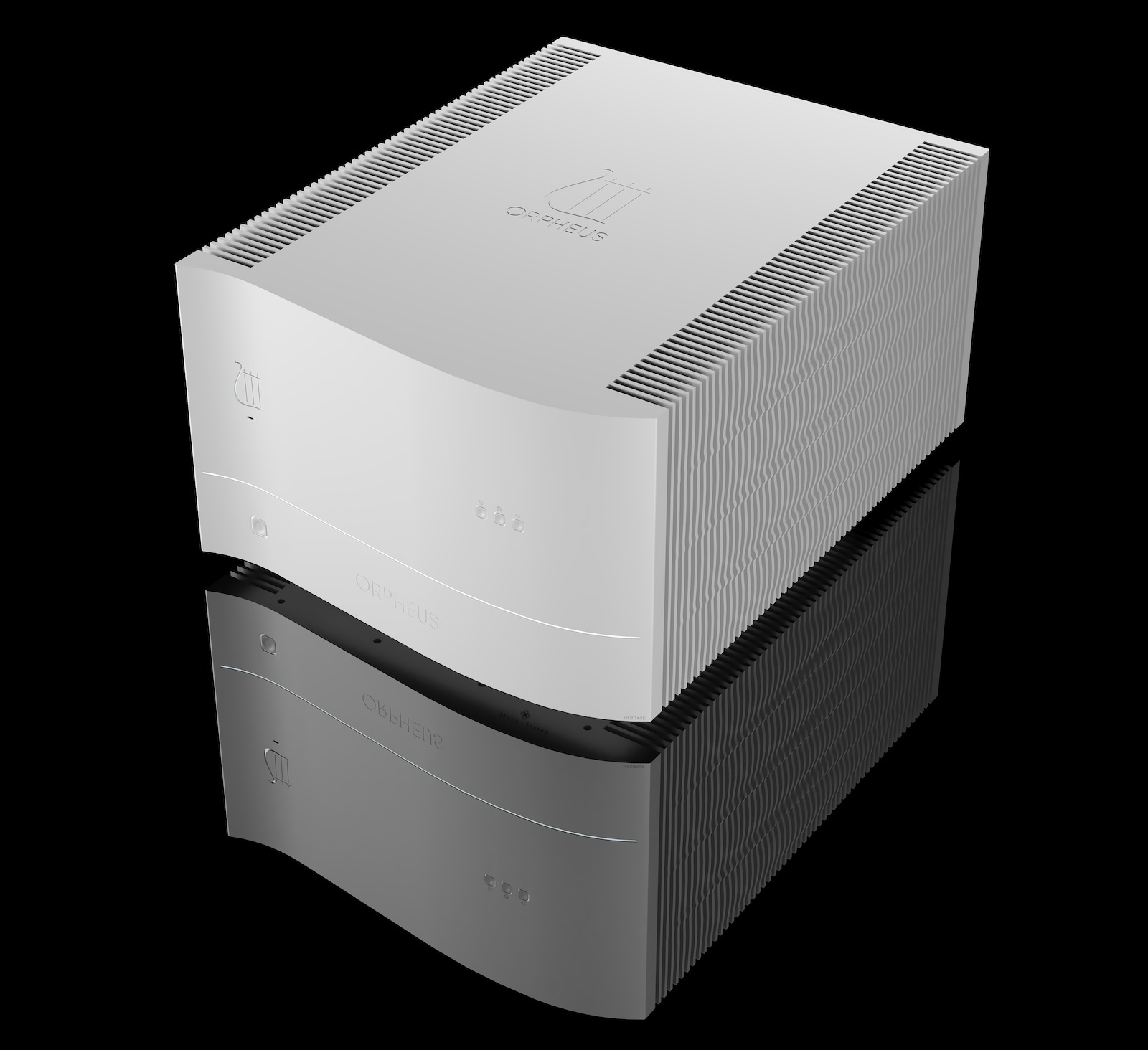

The Mono-Bloc Ultimate Amplifier H Three M1400, part of the Heritage Line, represents a new milestone in Orpheus engineering. Its current amplification stage is driven by forty-eight manually matched power MOSFETs, capable of delivering instantaneous current peaks of up to 192 amperes. Each MOSFET is controlled by a dedicated bipolar driver stage, ensuring exceptional precision throughout the amplification chain.
Combined with a multi-point feedback topology, this design applies the optimal amount of feedback to achieve a seamless balance between musicality and technical performance. As a result, the H Three M1400 delivers outstanding control and compatibility with virtually any loudspeaker.
The amplifier’s Class AB architecture is optimized with a carefully calibrated 2000 mA bias current, resulting in an idle power consumption of 520 W per channel and a stable operating temperature approximately 25°C above ambient. An advanced polarization circuit maintains optimal bias regardless of operating temperature, while the low-impedance BJT control architecture ensures consistent biasing under all load conditions, even during the highest current peaks.
Because true musicality cannot be measured by instruments alone, every aspect of the H Three M1400 has been refined through countless cycles of laboratory testing and critical listening. The result is an amplifier that delivers extraordinary dynamics, lightning-fast transient response, exceptional openness, and an immersive musical experience that faithfully captures every nuance of the performance.
Nominal audio power (AB class)
2300 Wrms @ 2 Ohm
1400 Wrms @ 4 Ohm
700 Wrms @ 8 Ohm
Continuous peak power 3600 Wpic (max 106.0 Vpic, 34 A pic)
Instantaneous power peak (<200 ms) 6360 Wpic (max 106.0 Vpic, 60 A pic)
Bias current 2000 mA
Thermal Idle power 520 WPC
Frequency range (+0 dB, -0.1 dB) 5 Hz to 90 kHz
Frequency range (-3 dB) 0.7 Hz to 165 kHz
THD+N @ 1400 W into 4 Ohm 0.0018 % (-95 dB) @ 1 kHz, analysis range 20 Hz to 40 kHz
THD+N unloaded 0.0007 % (-103 dB) @ 1 kHz, analysis range 20 Hz to 40 kHz
Clip to Noise Ratio (input Bal) -123 dB
Clip to Noise Ratio (input Unbal) -123 dB
Gain Unbalanced 33.1 dB (45.28 V/V)
Gain Balanced 27.1 dB (22.64 V/V)
Output impedance 0.0072 Ohm
Damping Factor @ 8 Ohm 1100
TECHNOLOGY USED
Unique bias circuit guarantees temperature-compensated bias current
Real dual mono topologies with 48 High resolution MOSFETs
Oversized power supply circuit, capacitive decoupling of mains voltage to eliminate interference
DC free output

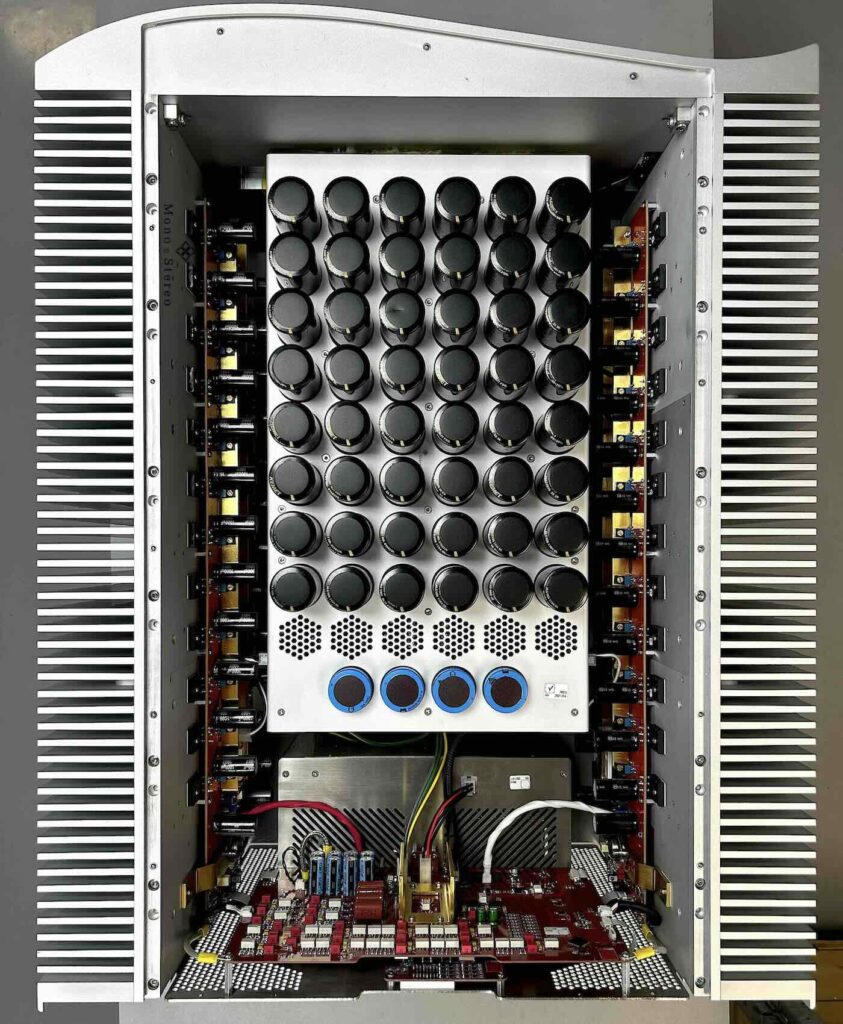

2400 VA toroidal transformers feed an impressive total of 503 mF of capacitance, ensuring unwavering power stability.
