Pitt & Giblin Cast speakers, created in collaboration with renowned Australian industrial designer Tom Fereday, feature four marine-grade aluminum castings, a large circular waveguide, and four 4” midrange drivers housed in a sealed plywood enclosure. Additionally, they include a large rear-firing 10” subwoofer, with the vented output controlled by a combination of absorptive materials and precise physical alignment.
ACTIVE 3-WAY.
A Hypex FusionAmp module powers three acoustic elements including a 10” subwoofer, four 4” midrange drivers, and the high frequency unit. Digital Signal Processing informs this type of loudspeaker architecture, by offering the control to re-align this 3-way geometry.
CONSTANT DIRECTIVITY.
Like all Pitt & Giblin products, the high frequency driver is loaded into a highly optimised waveguide. The geometry controls the consistency of tonal balance at the listening position, and also within the room. A powerful titanium compression driver plays from below 20kHz and beyond.

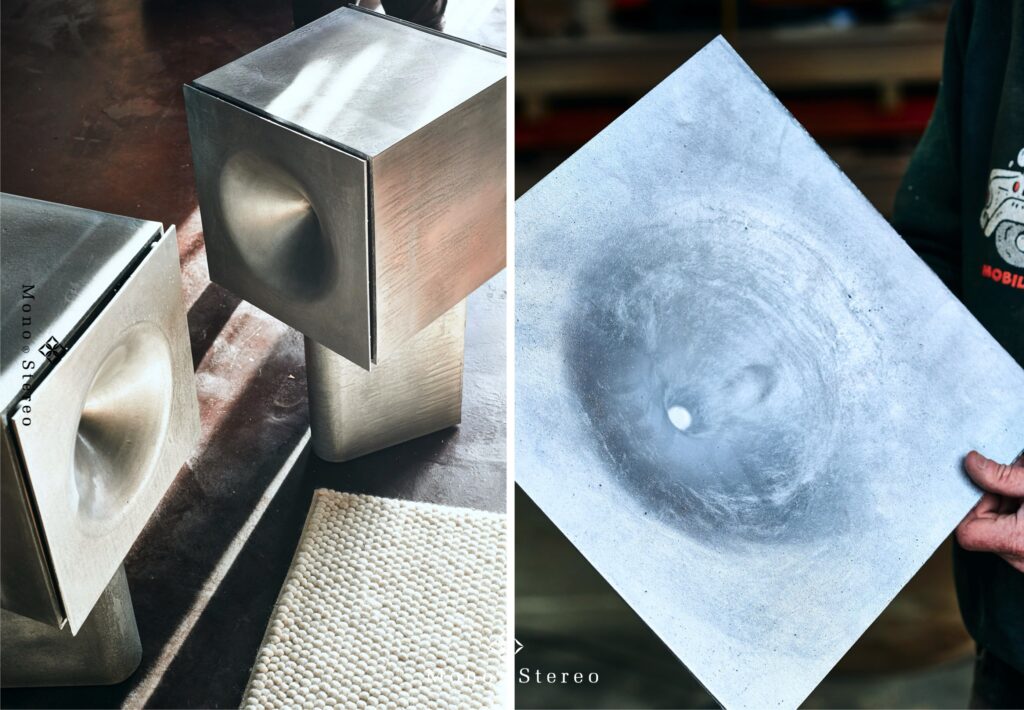

FOUR CAST ELEMENTS.
Cast in Hobart, four aluminium elements make up each Cast loudspeaker. The castings reveal a soft texture, while internal bracing and damping materials facilitate this material choice. All external surfaces are honed, hot waxed, and free of any fixings for a unique and uninterrupted sheen.
SINGLES OR MULTIPLES
Sold individually, each Cast can be linked up with other modules to create a stereo or multi-channel listening experience. The amplifier module features a range of analogue and digital inputs, perfectly suited to a streamer, turntable, or other audio source.
CIRCULAR WAVEGUIDE
What appears to be simple geometry is in fact a complex curve on a circular pattern. This casting provides the cubic framework for the rest of the form, and also the acoustic design. It’s adequate size allows for a very broad response, furthering the sensory phenomenon that appears to be point source sound.
$12,750 AUD (EXCLUDING GST)
- 3-WAY ACTIVE LOUDSPEAKER
- FULLY CAST BODY, WAVEGUIDE,
- BASE, AND REAR COVER
- HYPEX NCORE
- AMPLIFICATION & DSP
- HF 100W 1 X 1.75” TITANIUM
- MF 100W 4 X 4” POLY
- LF 125W 1 X 10” ALUMINIUM
- 35HZ – 20KHZ RESPONSE
- ANALOGUE AND DIGITAL INPUTS
- TO BE USED AS SINGLE OR
- MULTIPLES
- AUTO INPUT & ON/OFF
- -5dB 0dB +5dB TRIM SETTINGS
