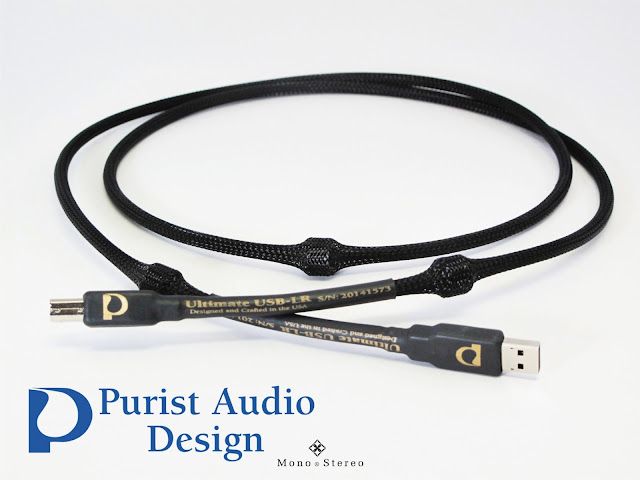

Purist Audio Design Ultimate USB Audio Cable

Purist Audio Design Ultimate USB Audio cable is specifically designed for computer audio applications. The design improves upon our previous cable by including passive filtering and a totally new cable design. The Ultimate uses the largest gauge conductors allowed by USB standards to allow for accurate signal transfer up to 5 meters compared with other computer USB cables, which are limited to a few meters. This allows computers can be located away from audio components without compromising performance.

The Purist Audio Design Ultimate USB Cable utilizes precision construction techniques and superior noise rejection result in a richer, more natural sound compared with computer USB cables. The cable also incorporates low noise dielectrics and double shielding providing superior noise performance for better resolution of musical details and a wider dynamic range.

Note: Some computer USB outputs cannot drive longer lengths of typical USB audio cables. Purist Audio Design USB Audio Cable is a high resolution, high speed cable that will pass a high quality DAC signal over longer lengths than expected with a wide assortment of computer interfaces.

  • Configuration: USB A to USB B; USB A to USB Mini
  • Available Lengths:1.0 M to 5.0 M

Ultimate USB Specifications

  • Conductors Copper
  • Metals Copper
  • Shielding 100% Foil, 65% Braid
  • Dielectric Material PVC
  • Gauge, Data 28 AWG Twisted Pair
  • Gauge, Power 20 AWG
  • Gauge, Drain 28 AWG
  • Resistance Data 0.234 Ω/m (conductor)
  • Resistance Power 0.033Ω/m (conductor)
  • USB Specification 2.0
  • Cable Diameter 0.60″ OD (at tuned Ferrite)
  • Connector Type USB A to USB B
  • Material Treatment Triple (3x) Cryomag©
