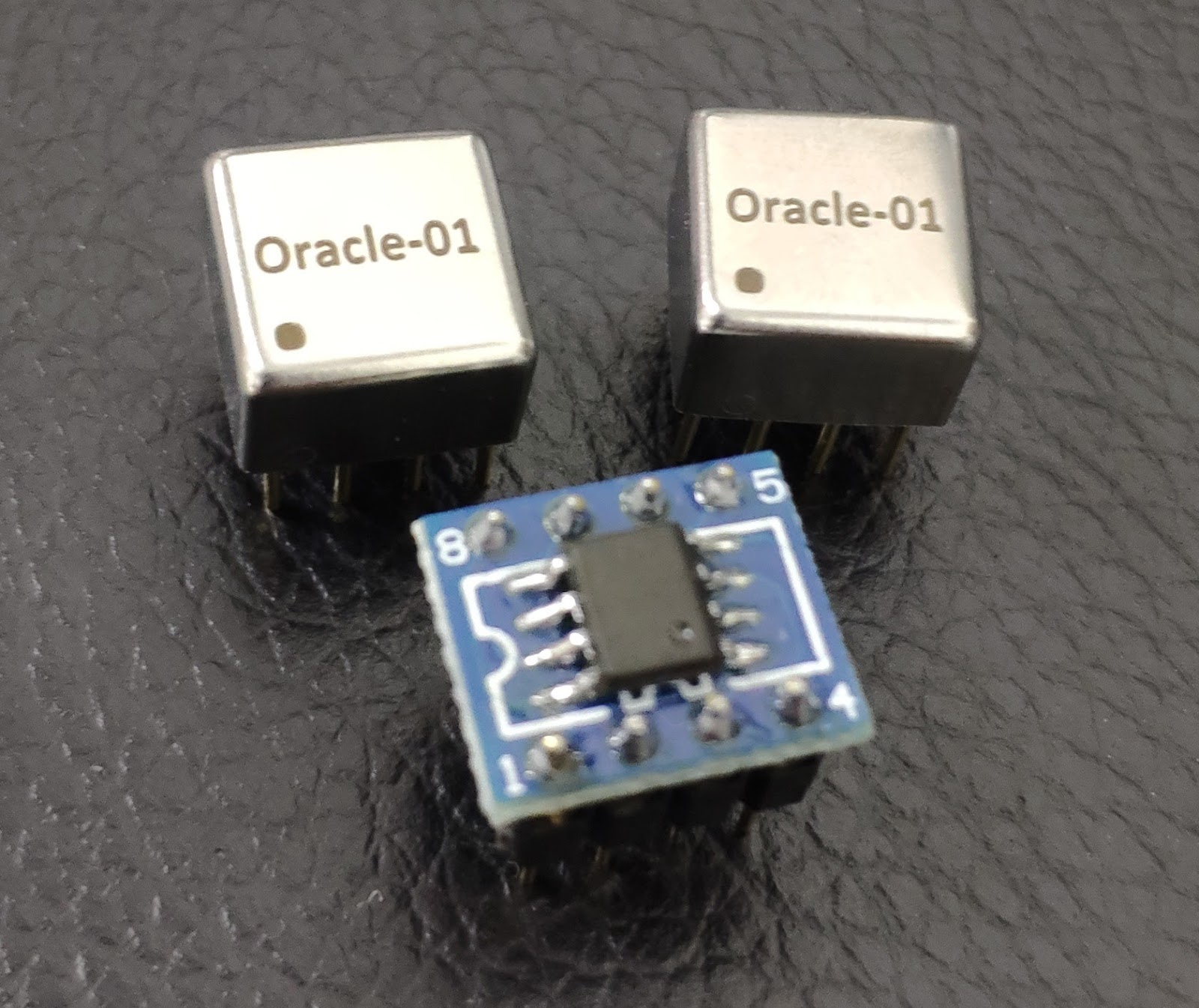

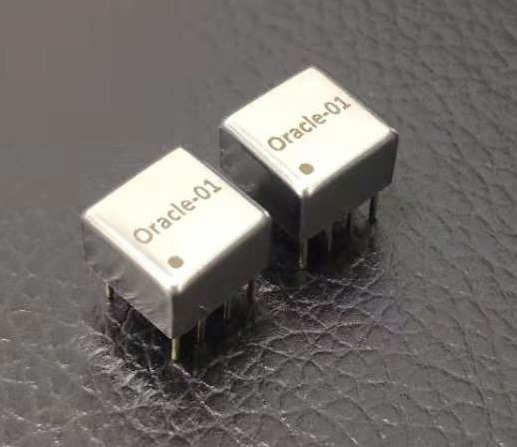

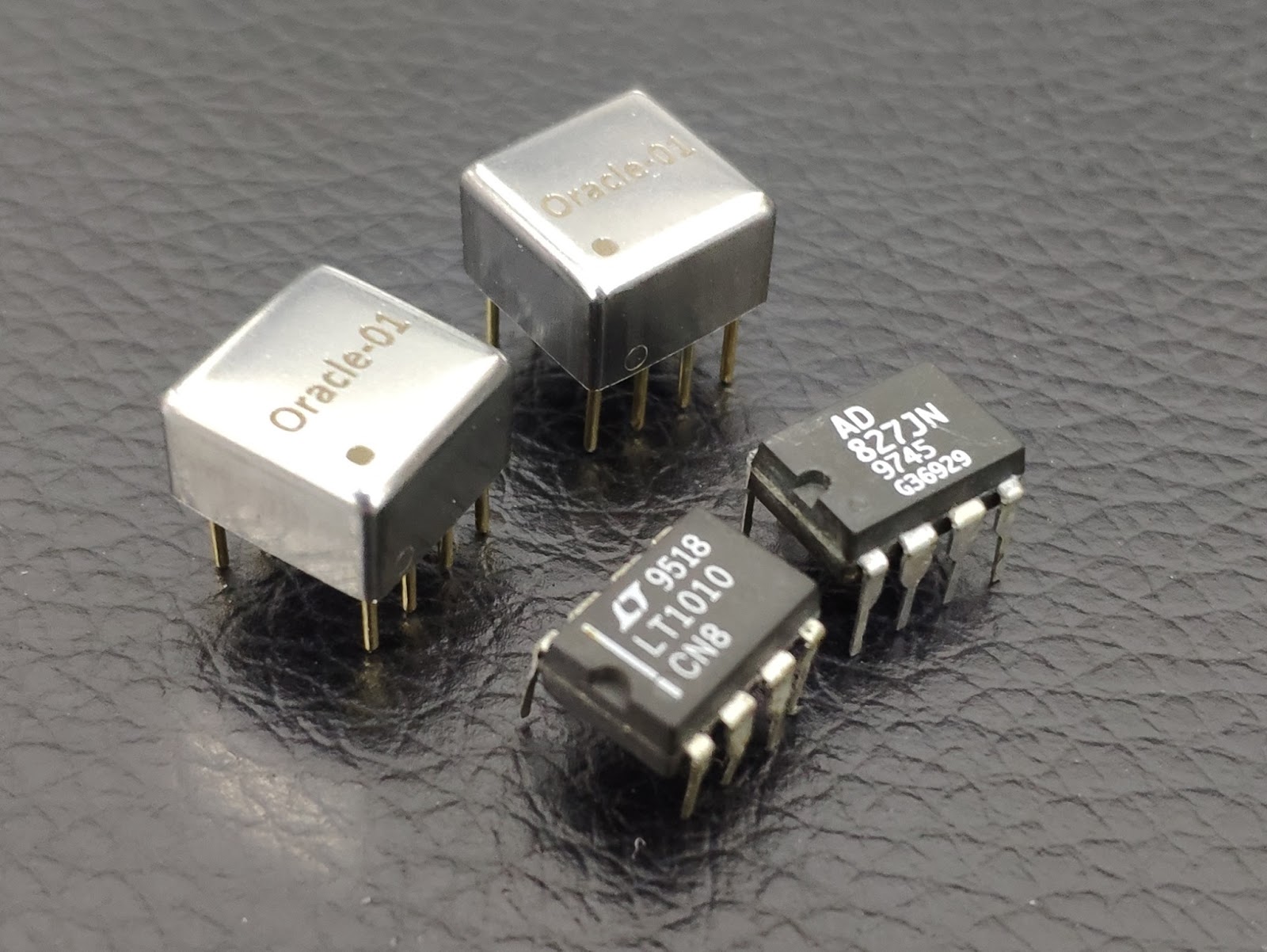

Sonic Scientific Oracle-01single operational amplifiers

Sonic Scientific’s single operational amplifiers, Oracle-01, from Oracle family are ready for the market now. “Oracle -01 is the single version of the Oracle -02 op amps. They are identical from the specifications point of view. However, the -01 version has two times of the effective heat dissipation capability, and also doubled the efficacious noise elimination and the ability to generate the needed instant power.”

“They are pin-to-pin compatible with all general purpose single audio op amps and have been thoroughly verified to be plug-n-play in most audio circuits. Once again, Oracles are the world fastest audiophile grade operation amplifiers with the highest possible driving capability, thus there are still opportunity that they will oscillate in some audio applications. Therefore, the proper signal integrity practice might still be required for those circuits that are actually unstable. We are initially offering the single DIP-8 package at the moment at the worldwide introductory price USD$ 25 to have all the audio enthusiasts to try them out. We encourage all qualified agents, representatives and distributors around the world to be our partners. If any of you are interested, please feel free to contact us directly for further details.”

Specifications

• Power supply range: +/- 5V to +/- 16 V
• Full power bandwidth: ≥ 20MHz
• Maximum output current: ≥ 600mA
• Signal to noise ratio: ≥ 120dB A-Weighted
• Total harmonic distortion plus noise: ≥ 100 dB
• Slew rate: ≥ 1000V/us
• Typical Offset voltage: ≤ 10µV
• Quiescent current draw: ≤ 15mA
• Dimensions (L x W x H): 10 x 10 x 6 mm
