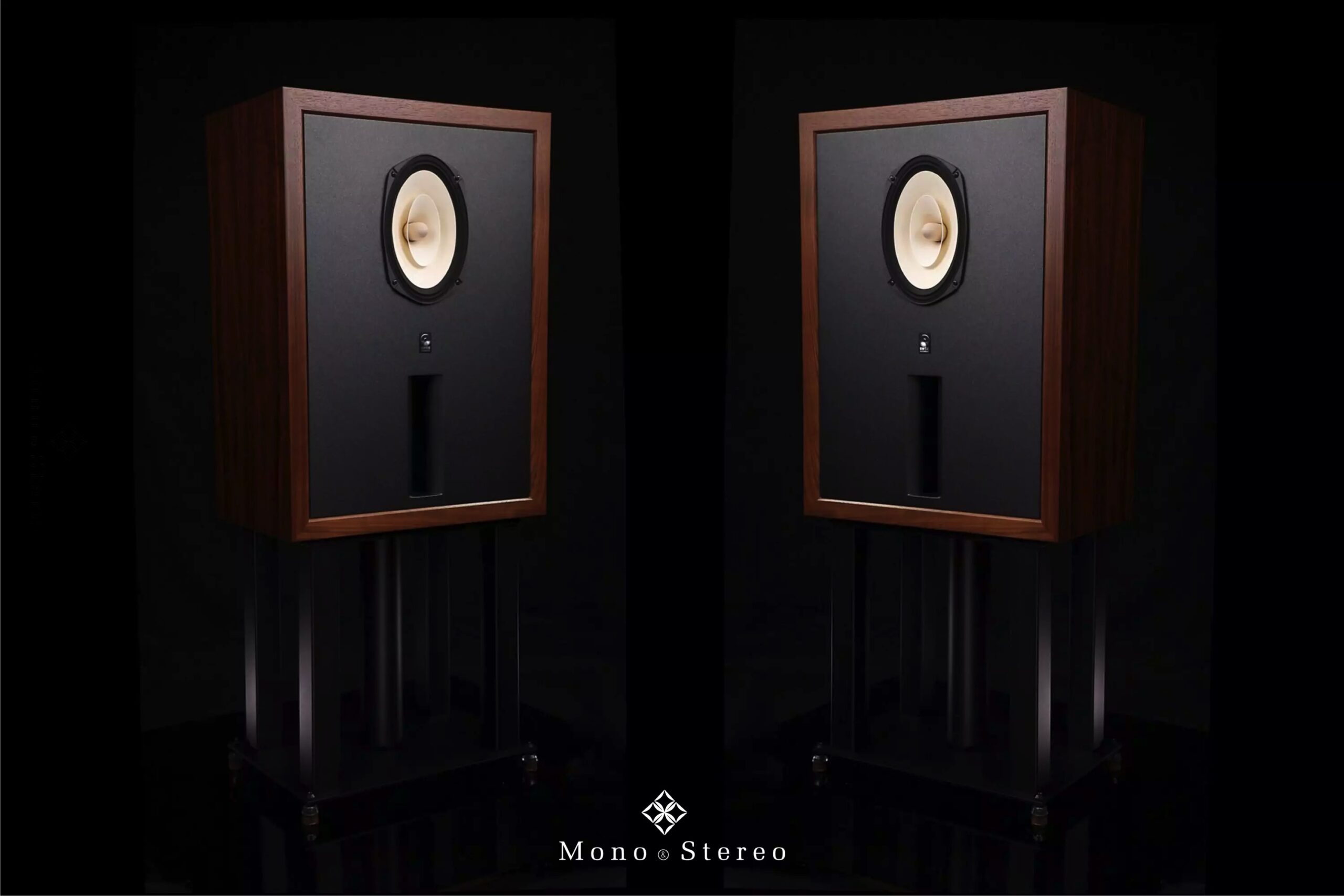

SW1X Audio Design™ MTR 963

SW1X Audio Design writes: “Are you looking for musical, articulate and most coherent loudspeakers to match a relatively Low Powered Valve Amplifier? If the answer is yes then you found the solution. The main design goal was to create musically uncompromised, super coherent sounding speakers to match Low Powered, Single ended, Class A, Tube Amplifiers.

The Near- Medium Field monitors were designed to be timelessly elegant made of great sounding, zero-expense-spared materials & to fullfil following criteria:

  • X-over-less and therefore without any Passive Components in order to maximize
  • Musicality, Transparency & Dynamics
  • Easy to drive by Low Power, Single Ended, Class A amplifiers

SW1X Audio Design™ MTR 963 Monitors Features:

  • Near- Medium Field Monitors ideal for smaller to medium size rooms
  • Zero passive components, Cross-over-less Design

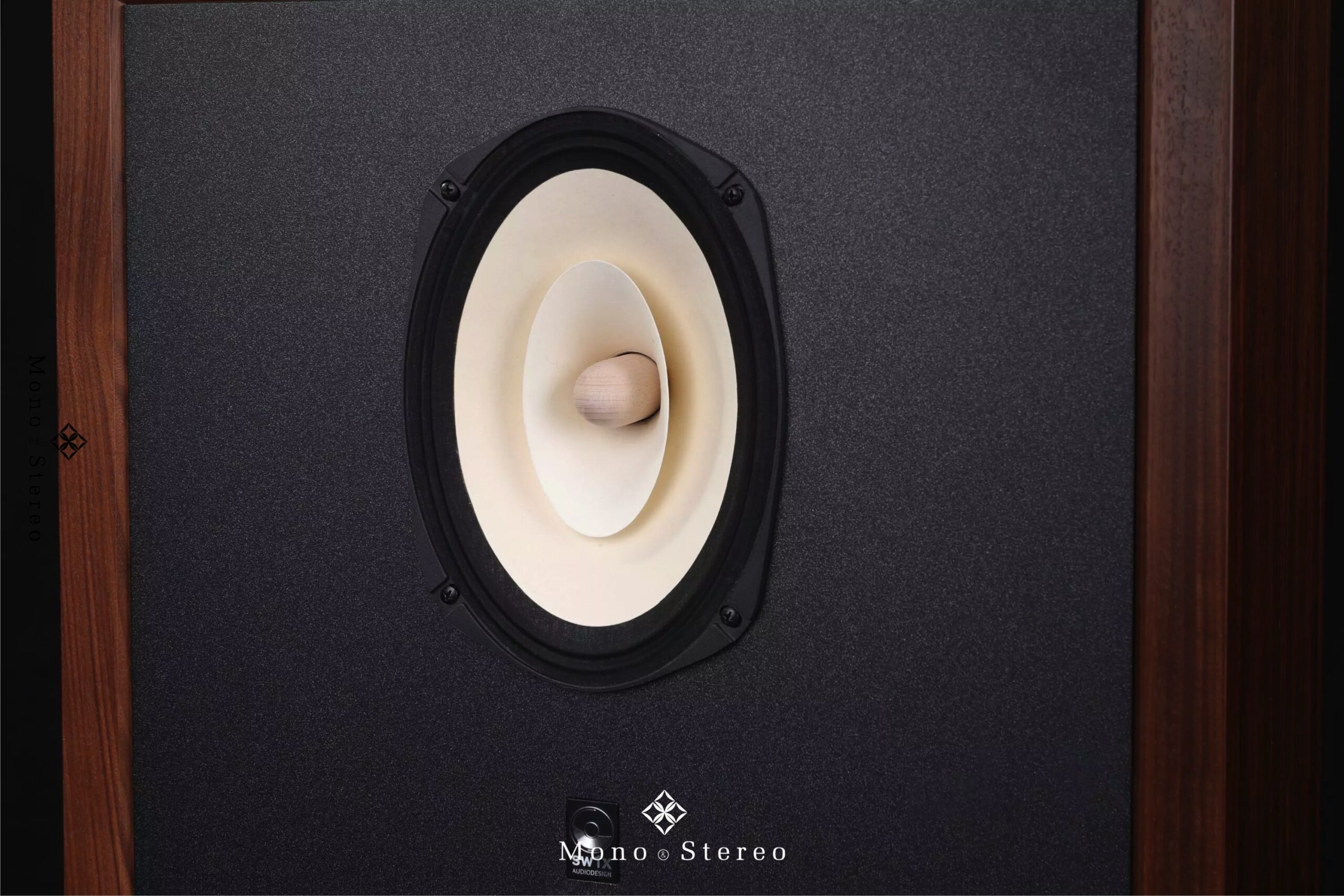

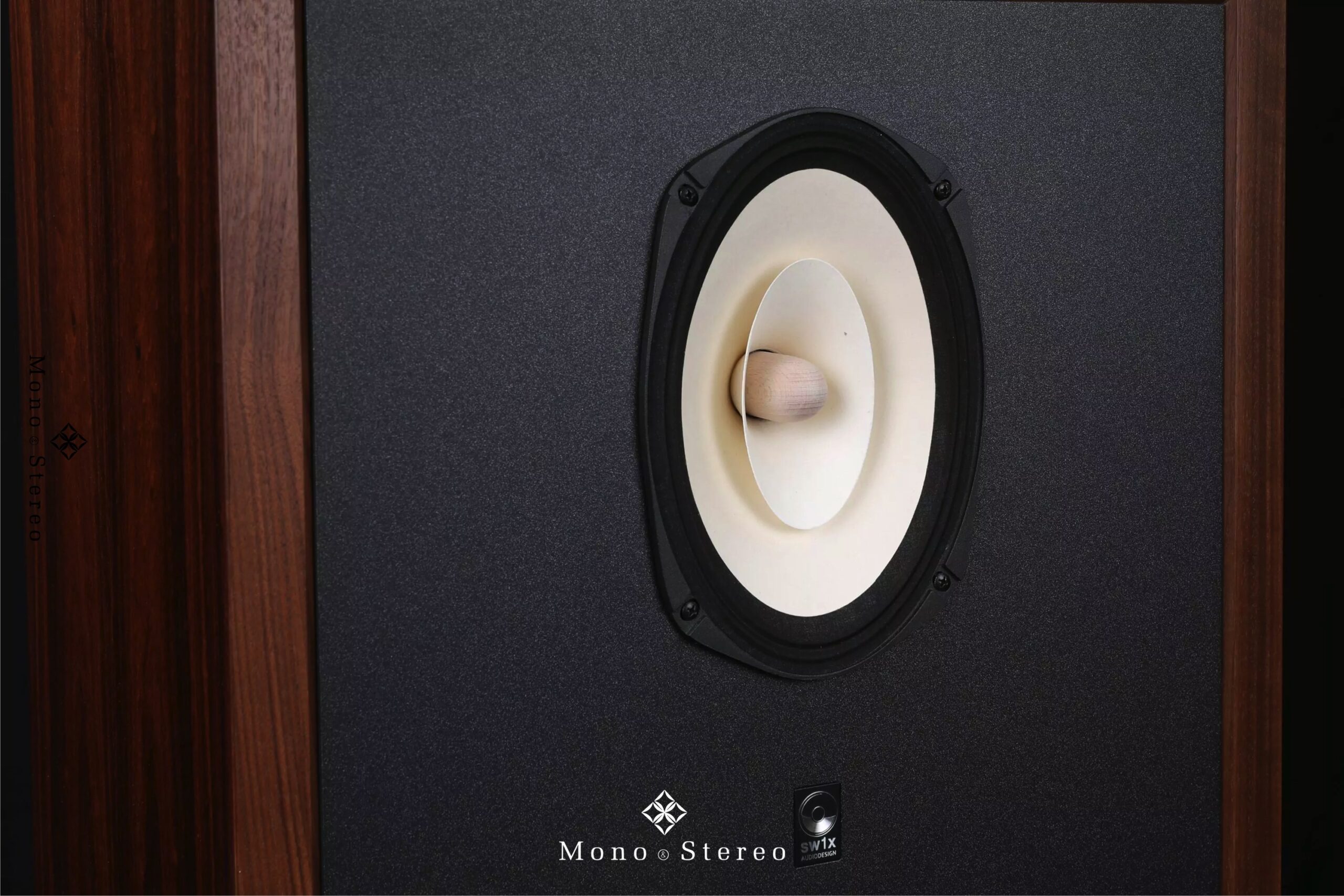

  • Custom 3 in one (9″, 6″ and 3″ diameter) Concentric, Oval Fullrange drivers with Paper Cones, Cloth Suspension and Solid Wood Phase Inverter
  • Drivers avaiable in 2 versions: with AlNiCo magnets or forthcoming Field Coils

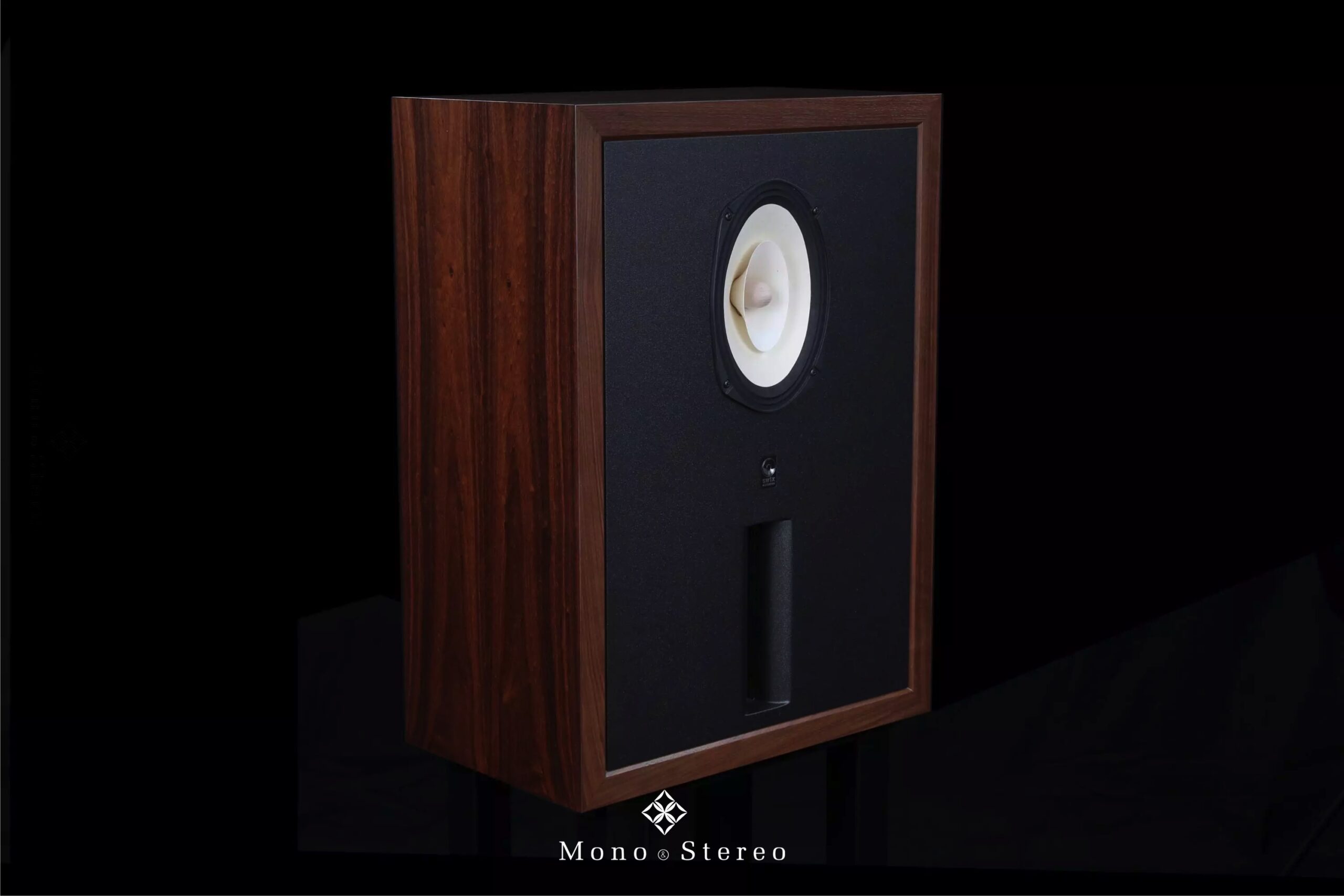

  • Housed in massive cabinet, every wooden part manufactured from piano instrument grade Birch plywood, 35mm thickness
  • Fine tuned Cabinet is made with 5-axis CNC machinery for maximum consistency

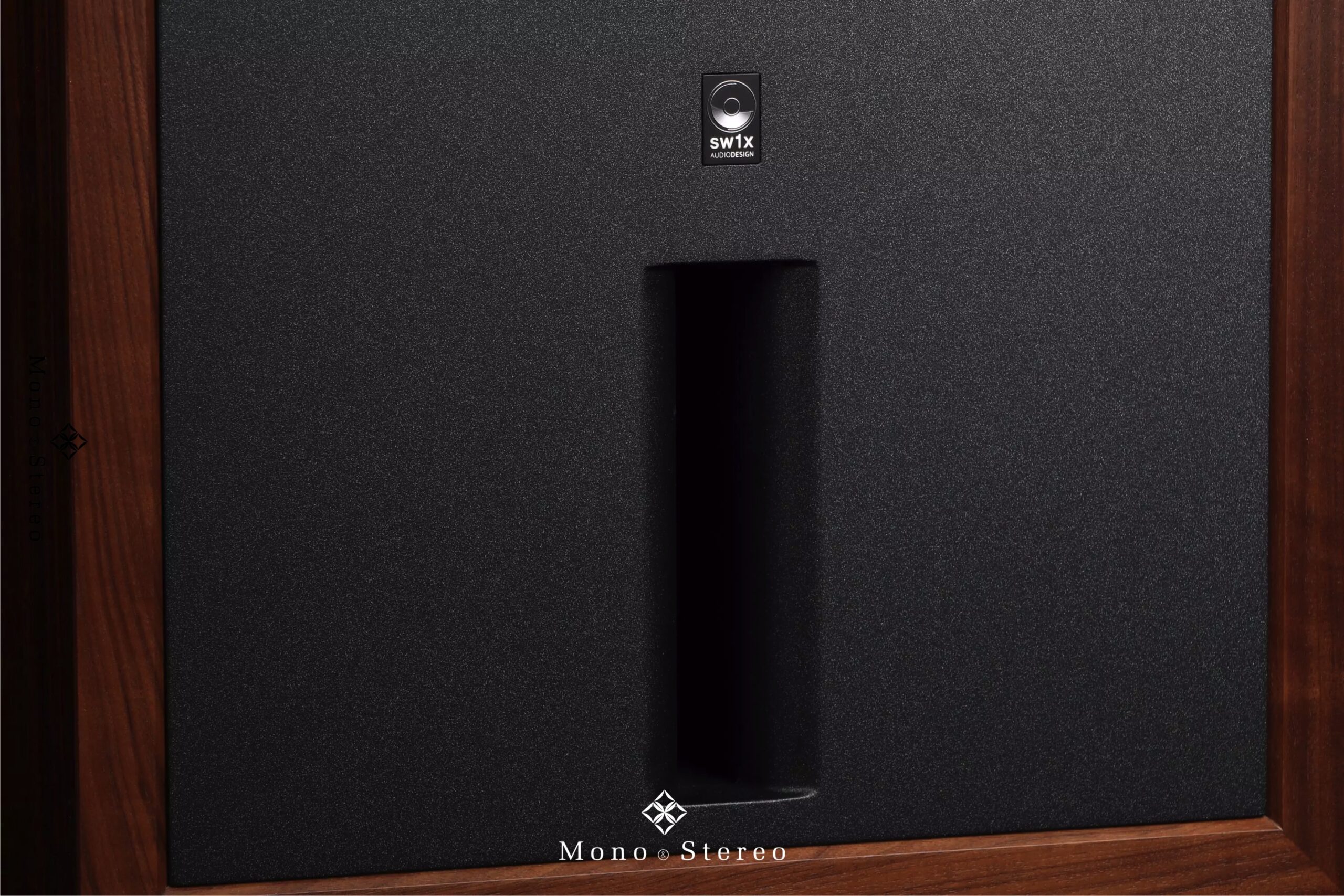

  • Bass ports constructed from Birch plywood are hand-finished
  • Optimized Damping inside made from Organic Sheepwool
  • Cabinet is glued throughout, only 4 metal screws to fix the drivers are employed
  • Internally wired exclusively with our SW1X Magnum, Genesis and Opus Copper or Silver (on request) conductors
  • Cabinets covered with natural wood veneer, rigorously selected for its beauty and durability
  • Non-synthetic lacquer coated Rosewood veneer satin finish as standard, other wood finishes are possible on request

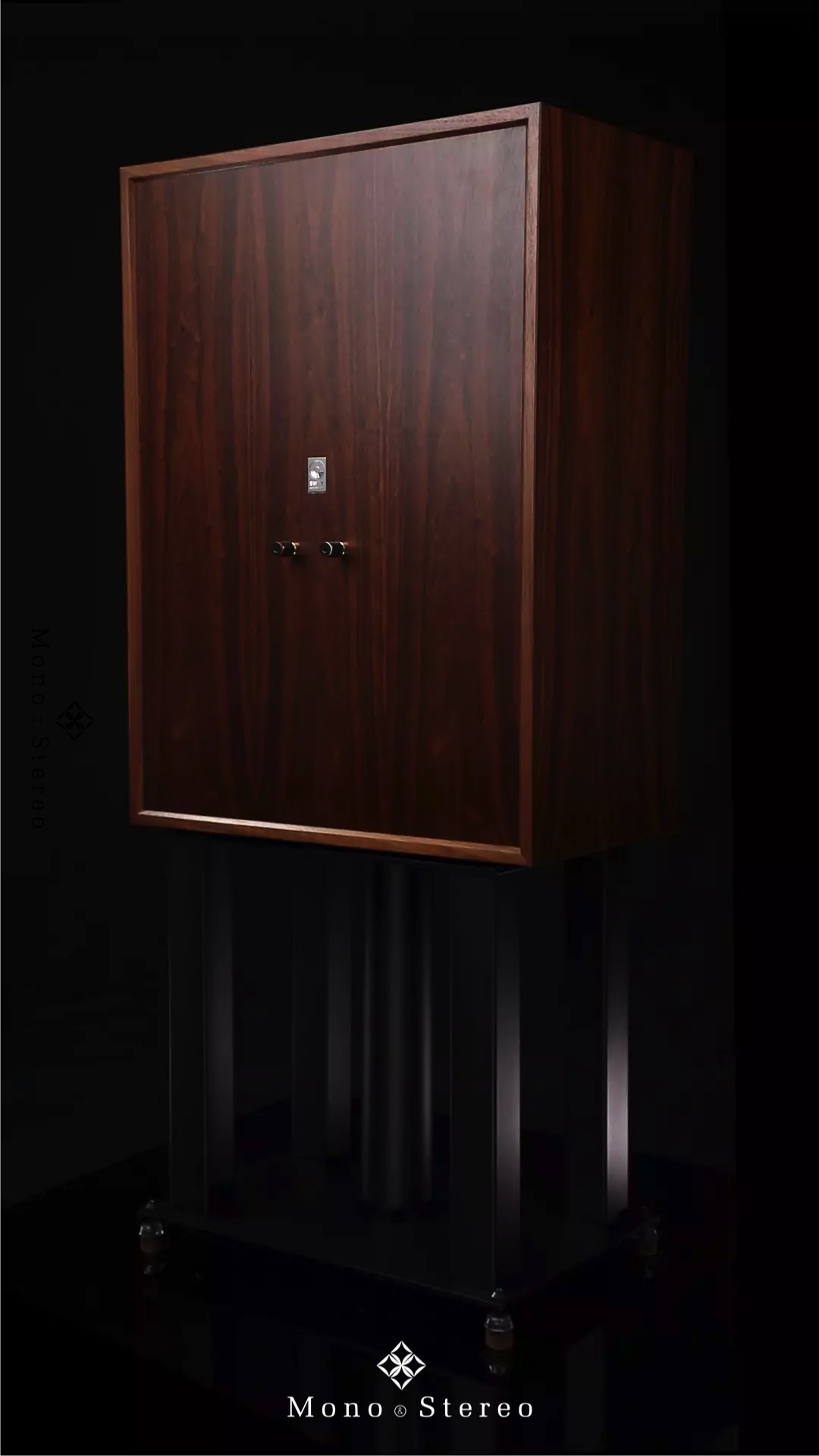

  • Custom Solid Steel Monitor Stands with spikes and bottom pads made from Panzerholz wood

Specifications

  • Minimum recommended Power Amplifier Output (W): 3
  • Average Sensitivity (dB/W/m): 94 or 96 depending on the model of a driver
  • Minimum Impedance (Ohm): 8
  • Frequency Response: 20kHz-35Hz
  • Dimensions: Height (mm) 700 (1100 with stands) x Width (mm) 500 x Depth (mm) 300
  • Weight (kg): 45 each cabinet (without stands)
