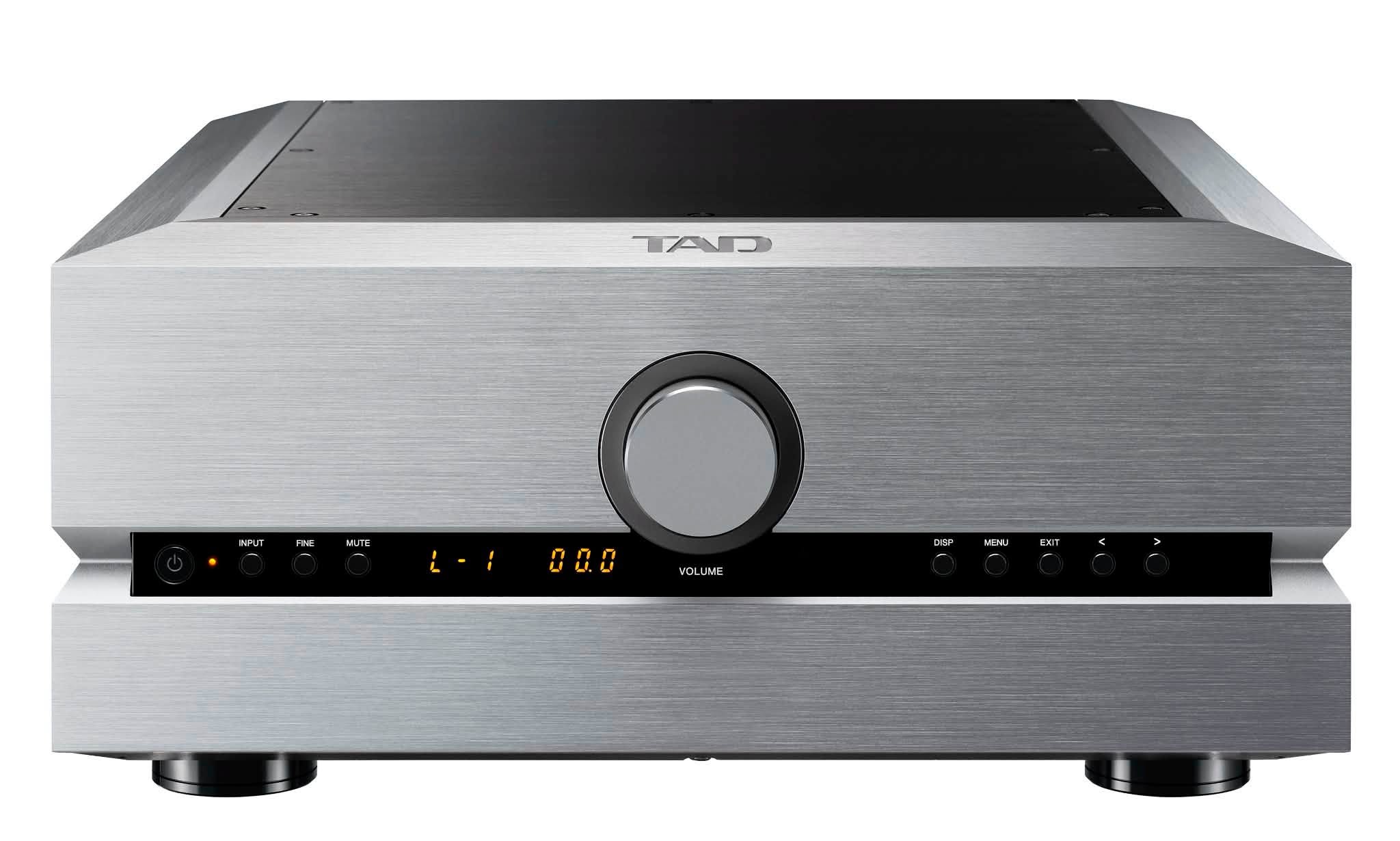

Technical Audio Devices Laboratories, Inc. (TADL) today announced the TAD-A1000D integrated amplifier as the latest addition to its Evolution Series of hi-fi audio components. The TAD-A1000D is a derivative of the TAD-A1000 analog integrated amplifier, which was introduced globally in 2025 to critical acclaim. It has been enhanced with digital inputs, inheriting the meticulously designed analog amplification circuitry from the TAD-A1000 while incorporating TAD’s renowned digital signal-processing and digital-to-analog (DAC) conversion technologies. This combination enables the true-to-life reproduction of music in both analog and digital formats.
The addition of the TAD-A1000D to our integrated amplifier lineup expands the range of options available to demanding audiophiles. Whether seeking pristine analog music reproduction or the reproduction of the highest-quality digital audio sources, TAD integrated amplifiers cater to diverse preferences. The TAD-A1000D harmoniously complements our Evolution Series of speaker systems, ensuring powerful and articulate sound, which is a hallmark of our decades of legacy.
Ultimate symmetry in circuitry and layout
The precise alignment of positive and negative currents that go through a speaker unit’s voice coils is paramount for driving its diaphragm with unparalleled accuracy. To achieve this, the TAD-A1000D employs a bridge-tied load (BTL) design that connects two distinct amplifiers in a balanced configuration for the left and right channels, spanning the input through output stages. This design ensures absolute symmetry between positive and negative power supplies. Furthermore, transformer coils, as well as rectifying, smoothing, and stabilizing circuits, are provided separately for each channel. This configuration achieves symmetry between the two channels in the circuit board layout and pattern—and even in wiring length. Our meticulous efforts to attain ultimate symmetry between left and right channels and between positive and negative signals extend further. The TAD-A1000D enhances its performance by incorporating separate grounding points for its preamplification, power amplification, and digital input stages.
High-capacity transformer with greater purity and efficiency
The TAD-A1000D’s power supply is supported by a high-capacity toroidal transformer coupled with a linear regulator. To enhance the purity of the power supply, the internal coils of the transformer are directly connected to the power supply circuit, thereby minimizing their contact points with leading wires. Furthermore, terminals for directly connected coils, mounting terminals for circuit boards, and clamping screws are all fabricated from pure copper and coated with nonmagnetic materials to eliminate even the slightest magnetic distortions. The cross-sectional design of the transformer core was crafted into a circular shape, which improves the contact between the core and coils, thereby minimizing unwanted leakage magnetic flux and vibrations. This transformer provides power to the power amplifier, preamplifier, and control circuits, resulting in a robust power supply characterized by enhanced purity and responsiveness, which contributes to the exceptionally accurate driving of speaker diaphragms.
Third-generation UPCG with an ultra-high C/N master clock
The TAD-A1000D is equipped with the Ultra-High-Precision Crystal Generator (UPCG), which was originally developed for the TAD-D700 Reference Series CD/SACD player and boasts an ultra-high carrier-to-noise (C/N) ratio. The UPCG features TAD’s proprietary oscillator with an SC-cut crystal to reduce phase noise and minimize the level of temperature deviation for oscillation at room temperature by avoiding thermal shock. The oscillator delivers consistently high C/N performance over an extended period of time and is responsible for smooth and dynamic reproduction of music with superb spatial characteristics.
TAD’s proprietary asynchronous USB transfer circuit
TAD’s proprietary asynchronous USB transfer circuit built into the TAD-A1000D significantly reduces delays in the operation of the field-programmable gate array (FPGA), thereby virtually eliminating distortions at low levels. This USB transfer circuit handles the sampling frequency of 11.2 MHz employed by DSD256, and, in conjunction with the UPCG, delivers high-quality performance.
Simplified, high-purity DAC circuit
The TAD-A1000D utilizes TAD’s proprietary current-feedback amplifier in its current-to-voltage (I/V) converter. This amplifier feeds back current from D/A converters directly without altering it, thereby ensuring simplified and high-purity signal conversion. This design achieves lower impedance and enhanced noise resistance, contributing to the transmission of pure signals to the preamplification stage.
Immaculate preamplification circuit
The TAD-A1000D’s flat amplifier in the preamplification stage features a high-performance, single-stage current-feedback amplifier, initially developed for Reference Series preamplifiers. To optimize signal complementarity, we evaluated the performance characteristics of each FET device and selected matching pairs for positive and negative elements in the TAD-A1000D. This attention to detail has substantially enhanced the stability of its preamplification circuit.
Center-mounted, ball-bearing-supported volume knob
The TAD-A1000D’s volume knob exudes an exquisite aesthetic and tactile experience. Its installation atop high-precision ball bearings ensures an exceptionally smooth rotation. The center-mounted design embodies the symmetrical layout of the internal circuits, conferring upon the TAD-A1000D a refined, elegant appearance in the tradition of the Evolution Series of hi-fi components.
Elaborate vibration-control design
The TAD-A1000D’s preamplification stage, power amplification stage, transformer, control circuit, and digital input stage are physically separated into five distinct chambers within the case. This five-chambered internal construction effectively shields the entire unit against external vibrations and provides a robust and stable ground potential. Notably, its power supply section is mechanically and electrically shielded to minimize noise and enhance signal purity. The TAD-A1000D’s sturdy body is supported by three feet, each equipped with an internally inverted spike. This design physically isolates the chassis from external vibrations transmitted through the floor. The minimal contact between the TAD-A1000D and the surface prevents external vibrations from affecting internal circuits and components. This comprehensive vibration-control design enables more condensed and energetic audio reproduction, preserving the spatial nuances of the music. The rear panel features heavy-duty, extra-large speaker terminals, similar to those found in the Reference Series power amplifiers. These terminals reduce mechanical and electrical stress on connected speaker cables, enhancing their stability and optimizing their performance.
TAD’s custom-made parts and components
We have incorporated a variety of our custom-made components and parts into the design of the TAD-A1000D to elevate its audio quality to unprecedented heights. TAD’s custom-designed electronic volume control features ladder-resistant switching, delivering exceptionally precise attenuation performance and an ultra-low distortion of less than 0.0005% at 1 Vrms input. Nonmagnetic capacitors and resistors are employed in the audio circuit to minimize magnetic effects. To prevent magnetic distortions from compromising sound quality, gold-plated OFC leading wires without nickel base-plating are utilized for resistors and low-distortion film capacitors that handle all-critical analog audio signals, and chip resistors with nonmagnetic electrodes reduce current loops. In addition, the high-purity DAC output circuit incorporates reliable non-magnetic carbon film feedback resistors in its I/V converter. The input stage of the post-D/A-conversion I/V circuit and the preamplification stage utilize FET devices meticulously selected and paired by our certified artisans. Furthermore, four large-capacity 33,000㎌electrolytic smoothing capacitors are employed in the power amplification stage. These capacitors are of TAD’s proprietary design, developed through rigorous testing and listening evaluations.
