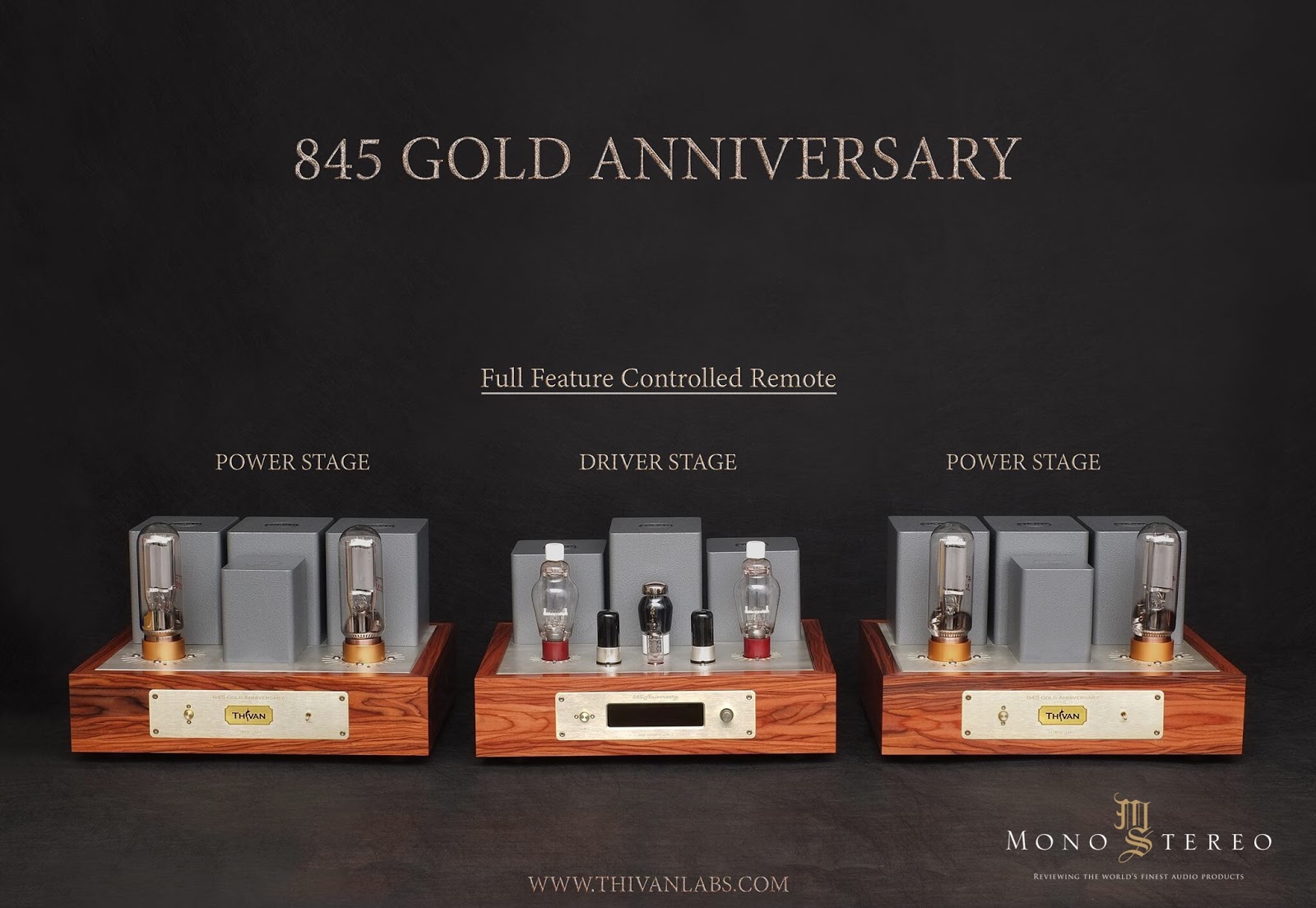

845 Gold Anniversary push pull Class A tube system from Thivan Labs…. Remotely controlled preamplifier stage and two power amplifiers…
Inputs : 2 x RCA; 1 x XLR
Speakers : 4,6,8,16 Ohms
Vacuum tube Complement :
– Output tubes: 4 x 845
– Pre & Driver tubes: 1 x 12AU7 ; 1 x 6SN7; 2 x 6V6 ; 2 x 811
Output Power (per channel) : 120W peak (60W RMS)
Frequency response : 10Hz – 28kHz (+/-3dB)
Signal-to-Noise Ratio : – 90dB
Input Sensitivity : 0.6 V
Input Impedance : 100kOhms
Power Requirement : 220V (POSSIBLE TO SET 100/110/117/240V/ 50,60Hz BY DIFFERENT MARKETS)
Power Consumption : 450W (total 3 modules)
Dimensions (cm) (W x D x H) : 45 x 40 x 29
Weight : 32kgs x 3 = 96kgs
