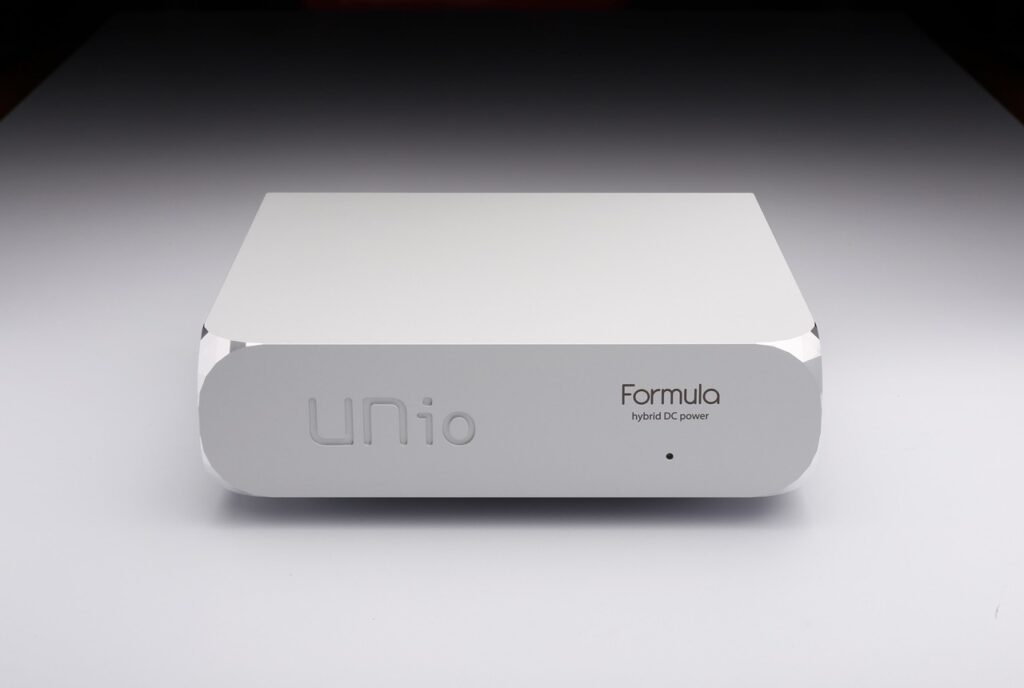

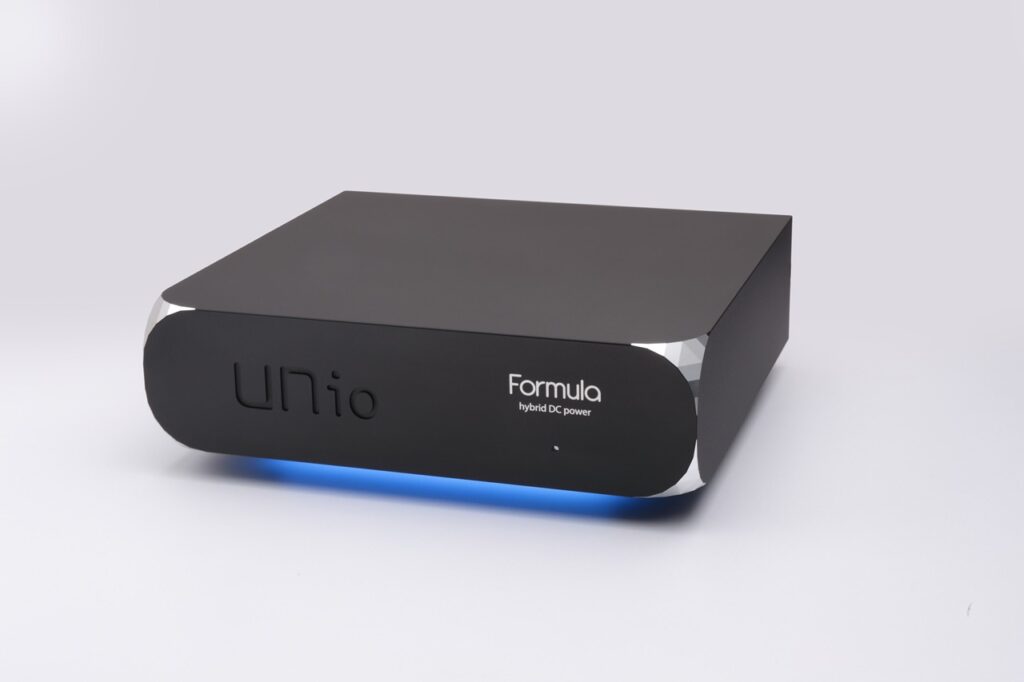

Hong Kong brand UNio launches the latest hybrid power supply, Formula 12. Since the launch of Poki network switch, UNio comes back with a new product for audiophiles. Hybrid power supply Formula 12 can support the Poki with extreme power supply design. It can also be matching with different digital equipment like the router, network switch and so on… Formula 5(v) and 15(v) with different voltage option will launch in the future as well.
UNio Formula core technology:
Dual Stage Hybrid DC Power: the “MBU” (Magnetic Block Unit) processes AC sine waves, and the core AC-to-DC conversion component, the “Formula Power Architecture”
It provides ultra low noise, stable power supply for network streaming devices such as Poki network switch and routers, as well as other DC equipment.

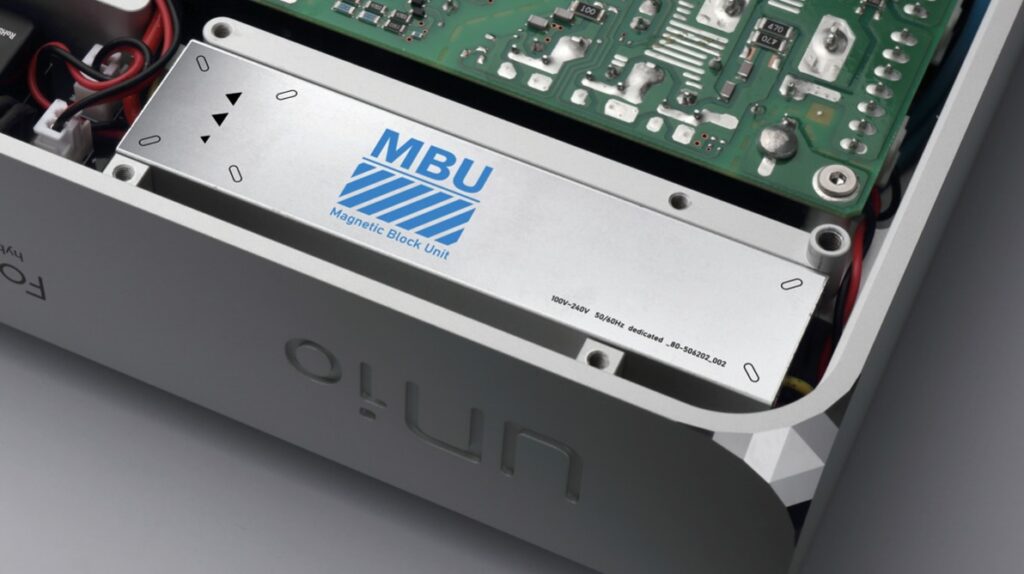

MBU(Magnetic Block Unit)
In the first stage of AC put, the MBU corrects and reduces noise in the power supply.
It ensures voltage peaks and inrush currents do not occur, protecting the power supply architecture and stabilize full power output.
Superior 12 Amp / 144 Watt Power Supply Capability
Under the dual-stage hybrid processing, the Formula PSU provides an extremely stable power output of 12A / 144 Watts—delivering twice the ample high-current output compared to conventional power supply products.
90% – Exceptionally High Conversion Efficiency
Compared to traditional linear power supplies where a significant amount of electricity is wasted as heat energy, the Formula achieves an ultra-high conversion efficiency close to 90%. This totally reduces unnecessary power loss, precisely transforming every unit of input power into the precise supply required by your equipment. This high-cost architecture ensures the output of extremely pure, near-zero-noise power while maintaining a stable, high-power supply free of any spikes. High-frequency noise can never contaminate the sensitive circuitry within the Poki network switch, presenting an incomparably deep, pitch-black background that allows every microscopic nuance of the music to spring vividly to life.

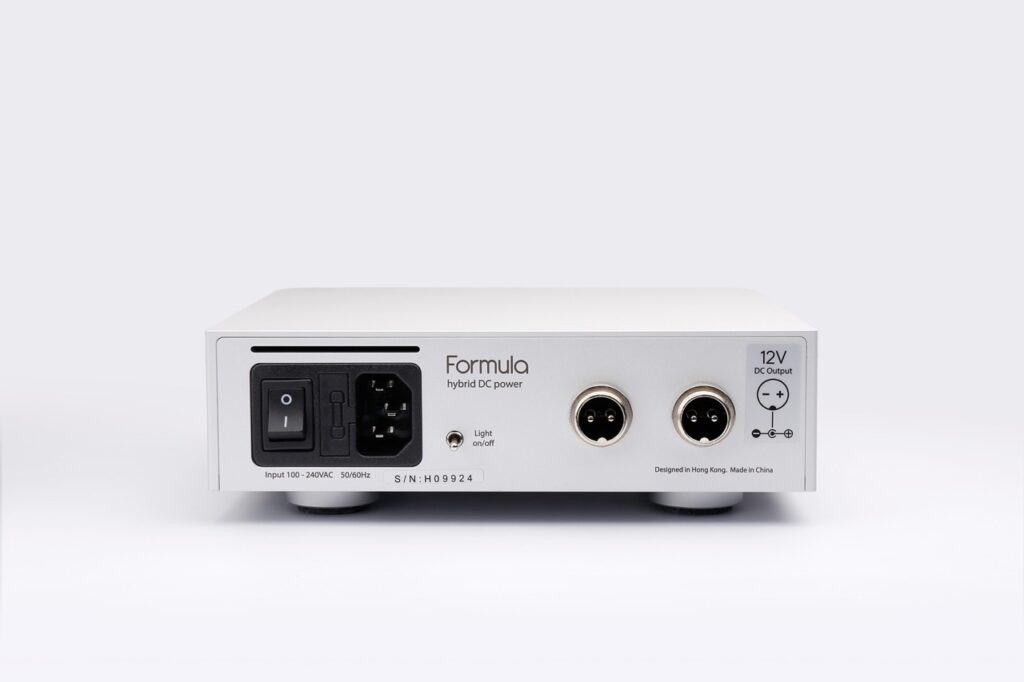

Formula 12 Dual Stage Hybrid DC Power Specifications: Power input: 100-240V AC / 50-60 Hz Mains: IEC power inlet, power on/off DC out cable: 1M x 1 piece, 2M x 1 piece ( 5.5 x 2.1 mm DC plug ), audio grade core and shielding DC output voltage: 12V ( 2 outputs shared ) Total output current: 12A Max. continuous output power: 144W ( 2 outputs combined ) Max. continuous output current: 12A ( 2 outputs combined ) Operating Temperature Range: -5°C ~ 65°C (with derating) Dimensions (W x D x H): 18 x 17.5 x 6.9 cm / 7.1 x 6.9 x 2.7 inch Net weight: 2 kg / 4.41 lbs
UNio Formula 12 website: https://ungnoi.com/html/UNio_formula.html
Price: EUR 699 (ex VAT)
