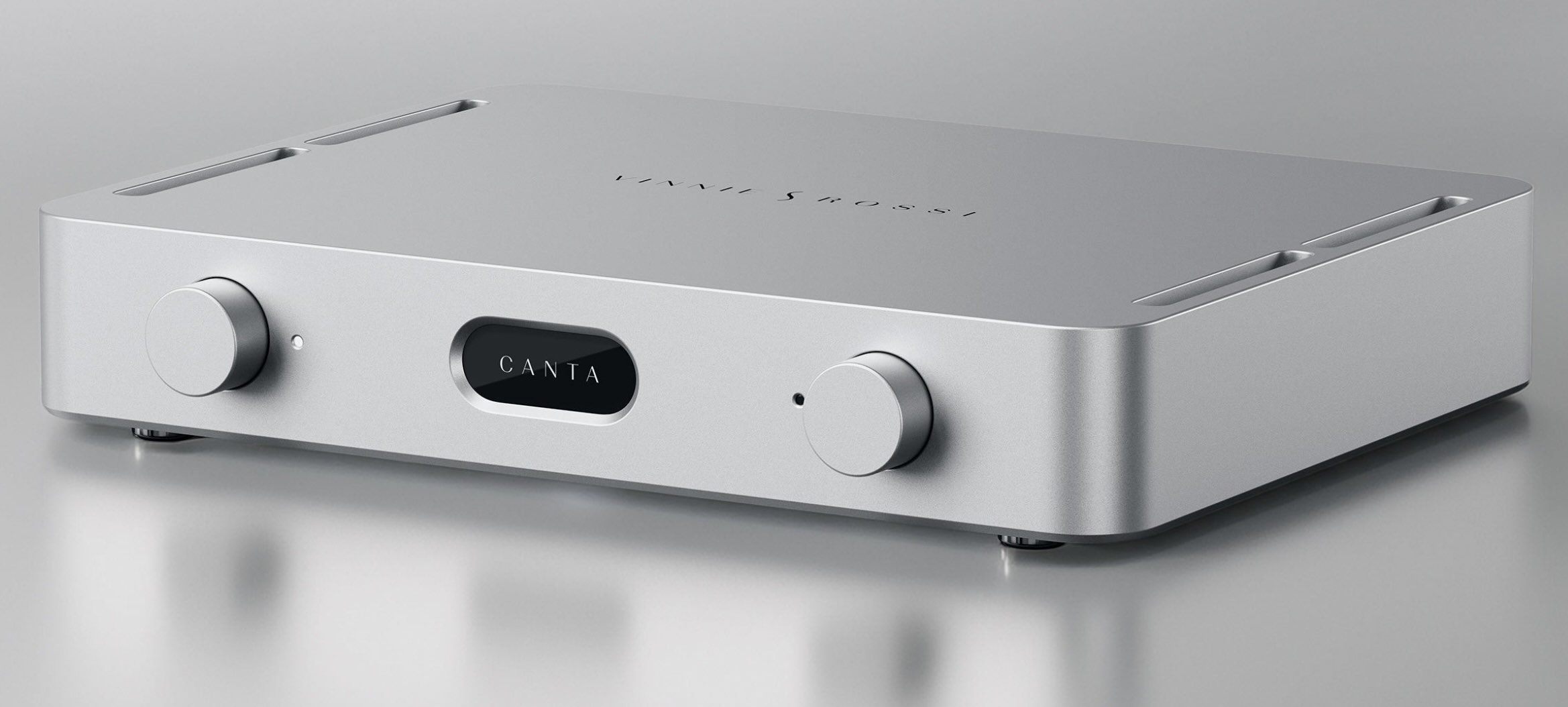

The Vinnie Rossi CANTA Integrated Amplifier brings together the tonal richness and dimensionality of Class A 6SN7 triodes with the effortless control and authority of a high-current MOSFET output stage. Built around extremely short signal and power paths, a custom power supply, and a beautifully crafted solid aluminum chassis, every element has been thoughtfully engineered to work as one. The result is a powerful yet refined integrated amplifier designed for deeper engagement with your music.
It begins with 6SN7 triodes
At the heart of the CANTA Integrated Amplifier is a dual mono Class A linestage, withbone 6SN7 per channel specifically used for voltage gain. Simple and direct by design,this stage brings the natural tone, dimensionality, and musical expression of triodes to the very first stage of amplification.
6SN7 TRIODE LINESTAGE
Class A, dual mono. One 6SN7 triode per channel.
MOSFET POWER OUTPUT
Class AB, dual mono. 250W per channel into 4 ohms.
ULTRA LOW NOISE POWER SUPPLY
1000W peak output power, with Belleson super-regulation.
The dual mono Class AB output stage uses just two precision-matched lateral MOSFETs per rail to deliver 250 watts RMS per channel into 4 ohms. With abundant current and a deliberately simple output topology, it combines effortless loudspeaker control with the speed, transparency, and finesse that define the VinnieRossi® approach to solid-state power amplification.
Powering the performance
CANTA’s power supply combines power factor correction with our custom switch-mode power supply architecture and Belleson super-regulated outputs. Engineered for ultralow noise and stable operation regardless of fluctuations in AC mains conditions, it provides clean, tightly regulated power to the sensitive audio circuitry while delivering the high current demanded by the output stage.
Sculpted from solid aluminum
The CANTA chassis begins as a solid block of aluminum, precision CNC machined into its final form, then fine bead blasted and anodized. Beyond its clean, seamless appearance, this substantial construction provides excellent shielding, resonance control, and thermal management. Its rigidity and mass further reinforce the design. The result is an enclosure where form and function are inseparable.
Sophisticated, yet simple
CANTA’s front-panel LCD provides an intuitive interface for adjusting gain and balance independently for each input, engaging Home Theater Bypass, setting display brightness, and accessing additional system preferences. Frequently used functions remain immediately accessible, while deeper settings stay neatly out of sight until needed.
Designed to belong
Machined from a solid block of aluminum, the CANTA infrared remote carries the same attention to materials, proportions, and tactile feel as the amplifier itself. Essential listening functions are always close at hand, with a simple, purposeful design that feels like a natural extension of CANTA.
