An autobiography is a personal chronicle. It is a record of lived experience shaped by time, intention, discovery, exploration, and refinement. It is a memoir- not simply of events, but of evolution. In that spirit, the Wilson Audio Autobiography stands as a sculpted narrative of the company’s history, pursuit of musical truth, and dedication to the refinement in craftsmanship.
Not just a personal chronicle, but a personnel chronicle
Autobiography is the culmination of over half a century of education and uncompromising execution by the world’s most dedicated guild of loudspeaker craftspeople. Every element, every curve, and every acoustic decision reflects a journey that began with Wilson Audio’s founder, David A. Wilson, and his earliest experiments into time alignment, resonance control, and emotional connection with music. This loudspeaker does not reference the past as nostalgia. It distills experience into clarity, preserving what matters while advancing what is possible.
This paradigm shifting design journals the path Wilson Audio has traveled, from the earliest original WAMM and WATT experiments to presenting a forward looking statement that could only exist today. Autobiography is not a compilation of prior solutions. It is the result of understanding why those solutions succeeded, and how they could be refined, reimagined, and elevated.
This is Wilson Audio’s story told through engineering, through waves of music. It is a memoir of memory, rendered in sound. Wilson Audio’s Autobiography is not a statement of arrival. It is a moment of pure reflection on a beautiful journey still unfolding.
Transducers- Crafted Anew

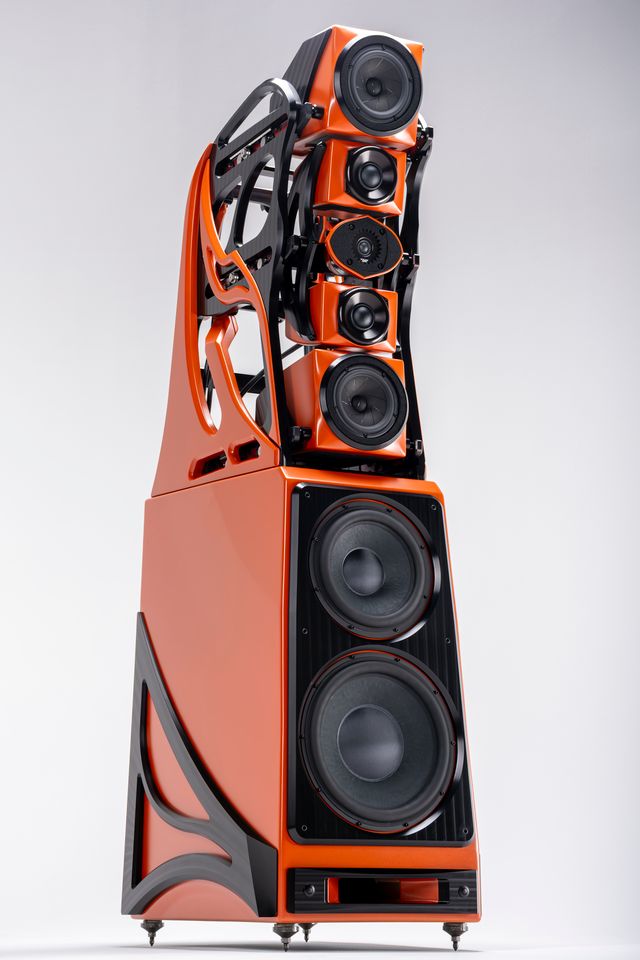

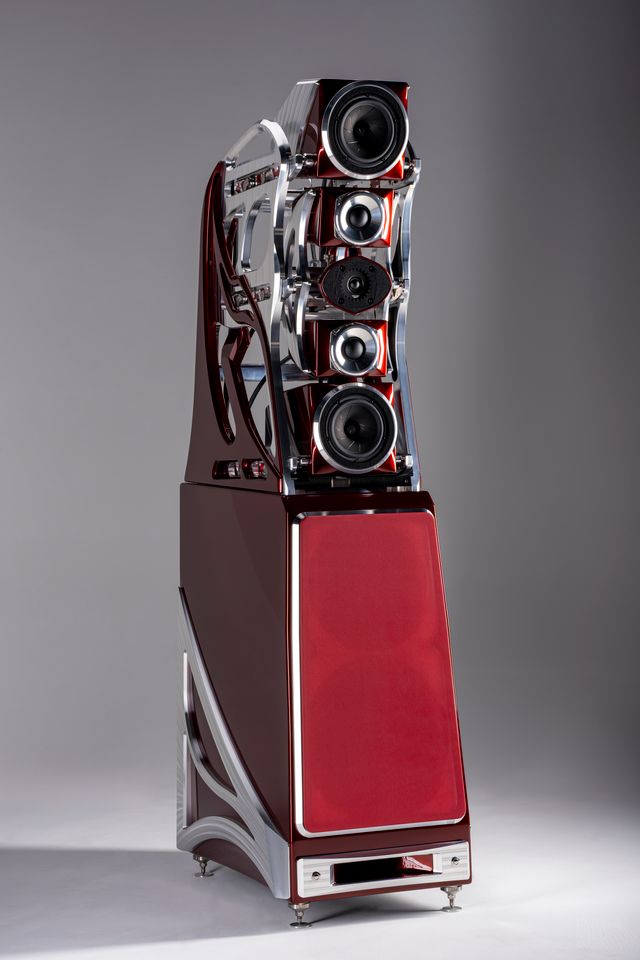

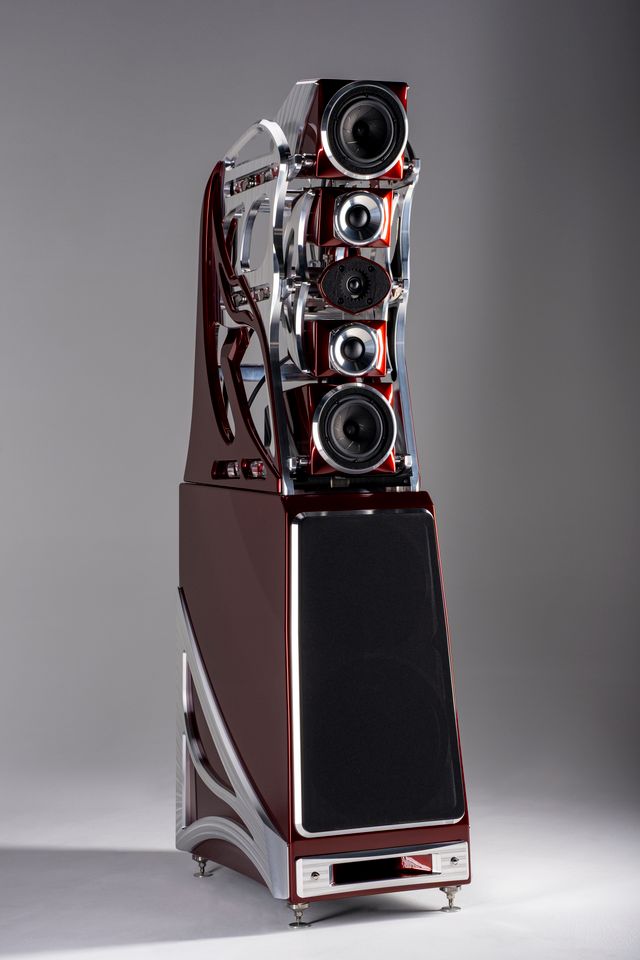

At the core of Autobiography lies a completely new driver complement. This is a five-way loudspeaker configured in an M(MTM)M array, with every transducer making its first appearance in this system. Each driver was conceived specifically for Autobiography, not developed as an isolated component, but as part of a unified acoustic architecture.

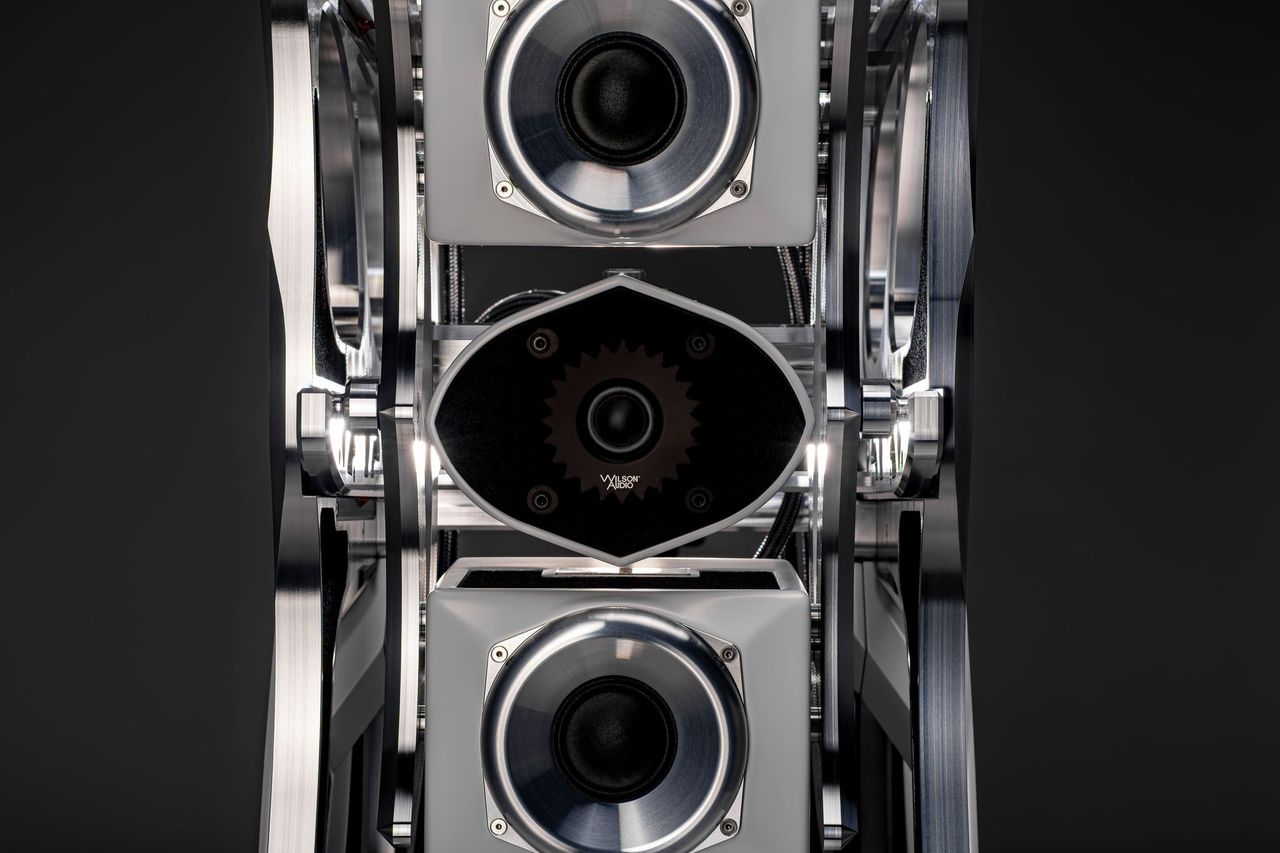

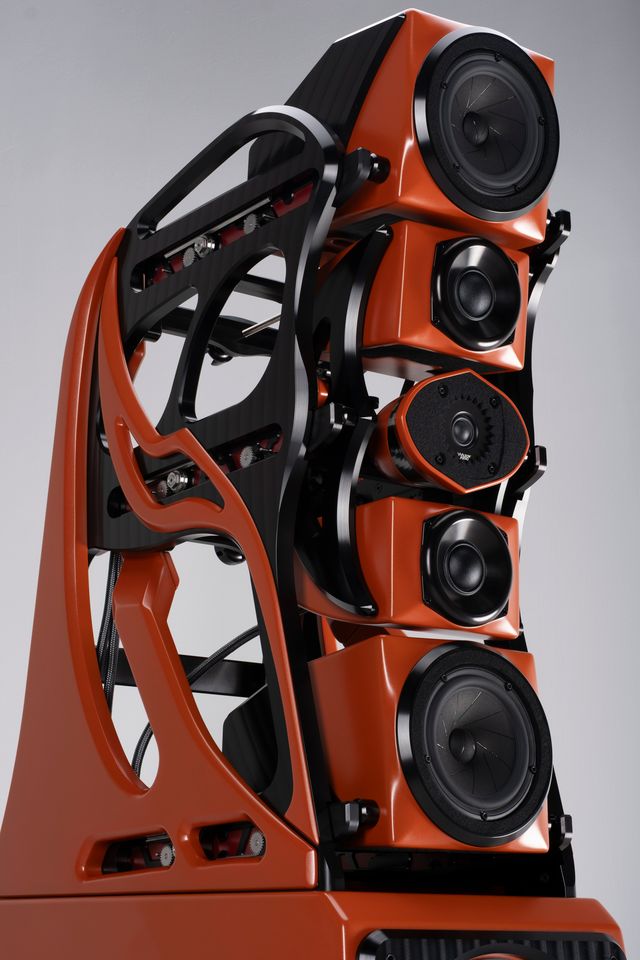

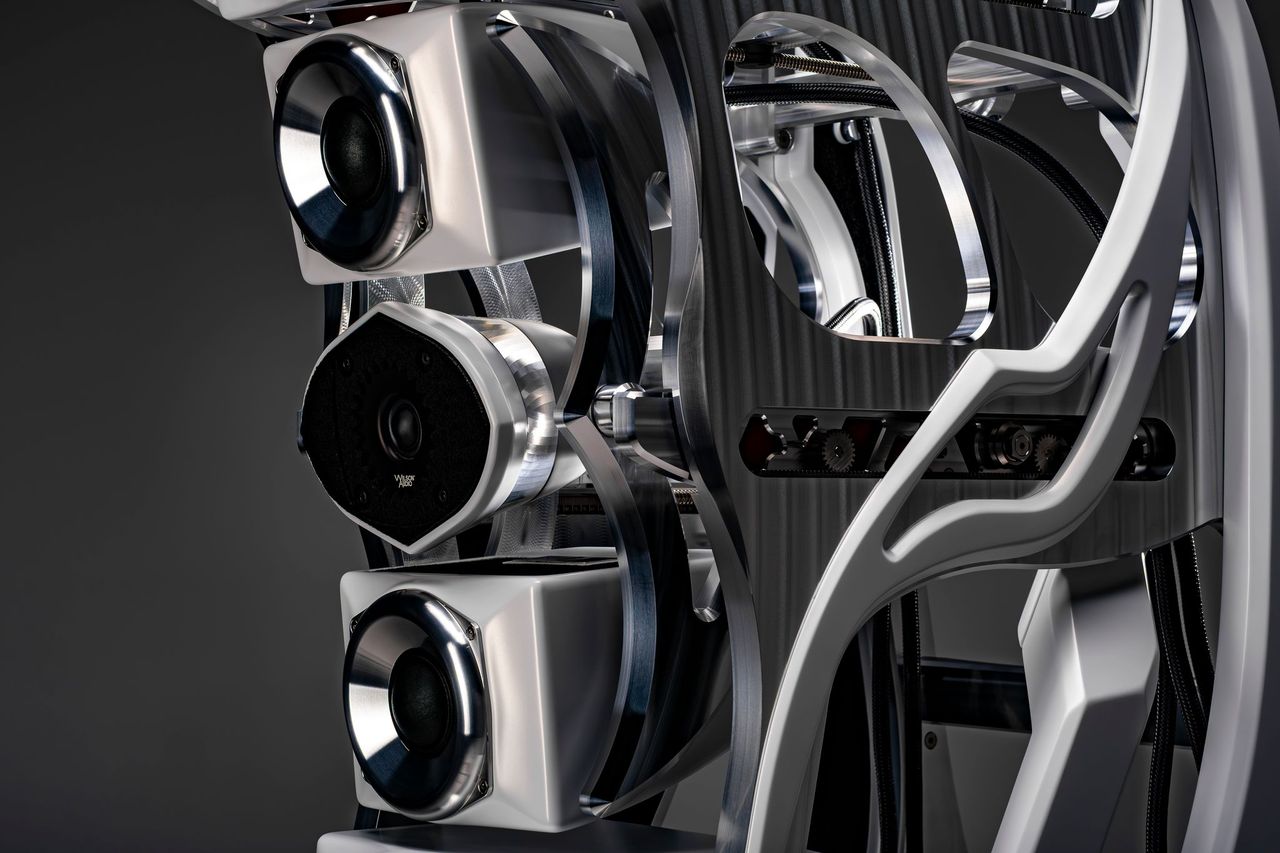

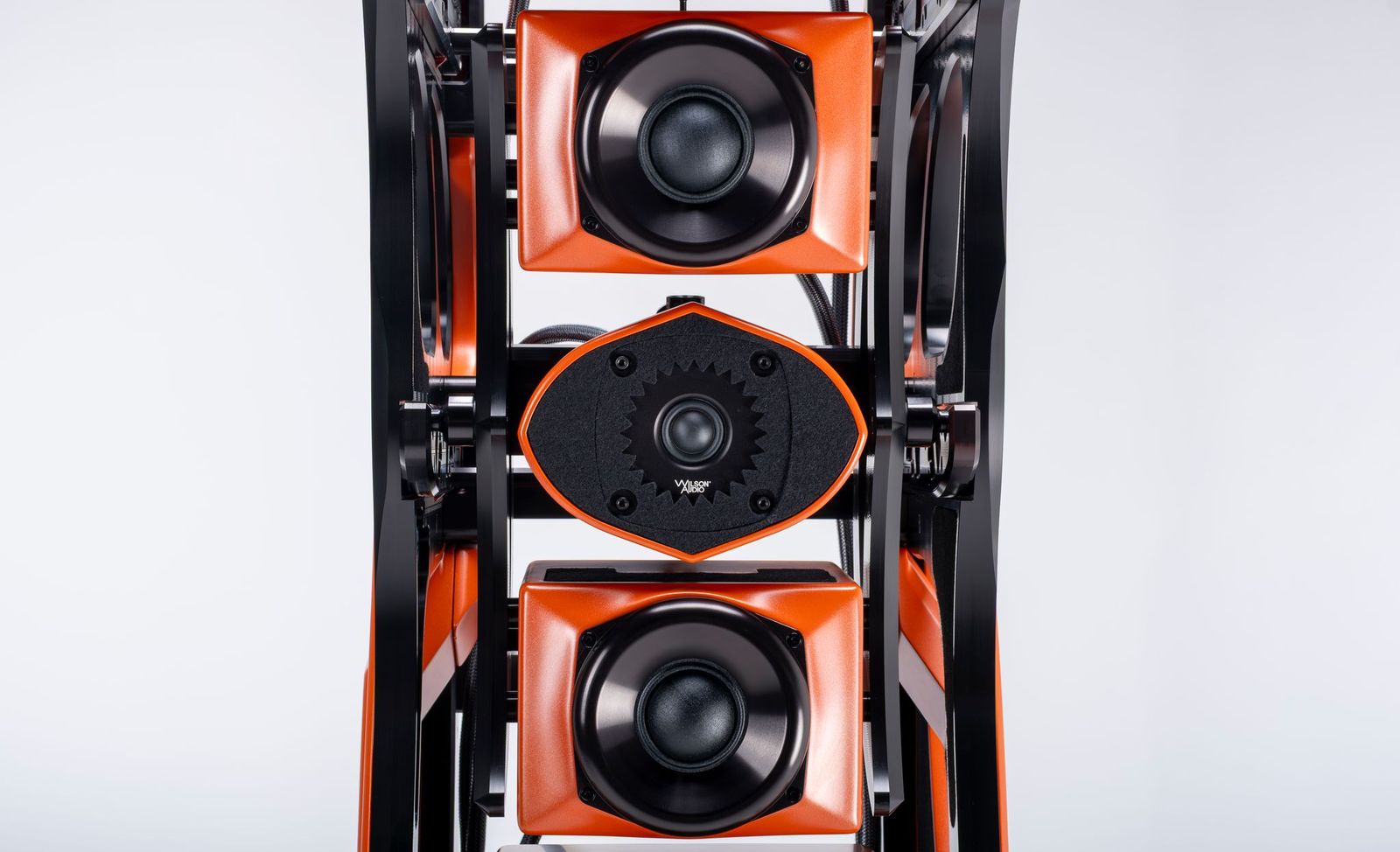

The vertical arrangement consists of a 7 inch midrange at the top and bottom of the gantry, followed by a symmetrical MTM crescent framed array composed of dual 2 inch midrange drivers flanking the CSLS front firing tweeter. This assembly creates a mirror structure that reinforces coherence through the critical vocal and instrumental regions. Low frequencies are handled by two dissimilar woofers, a 12 inch unit and a 15 inch unit, developed exclusively to operate together. Completing the driver lineup is a rear firing ambient tweeter designed to enrich spatial information.
The result is a loudspeaker that preserves timing accuracy, dynamic expression, and tonal integrity across the entire audible spectrum. Each transducer contributes its strengths without imposing character, allowing the system to speak with a single, coherent voice.

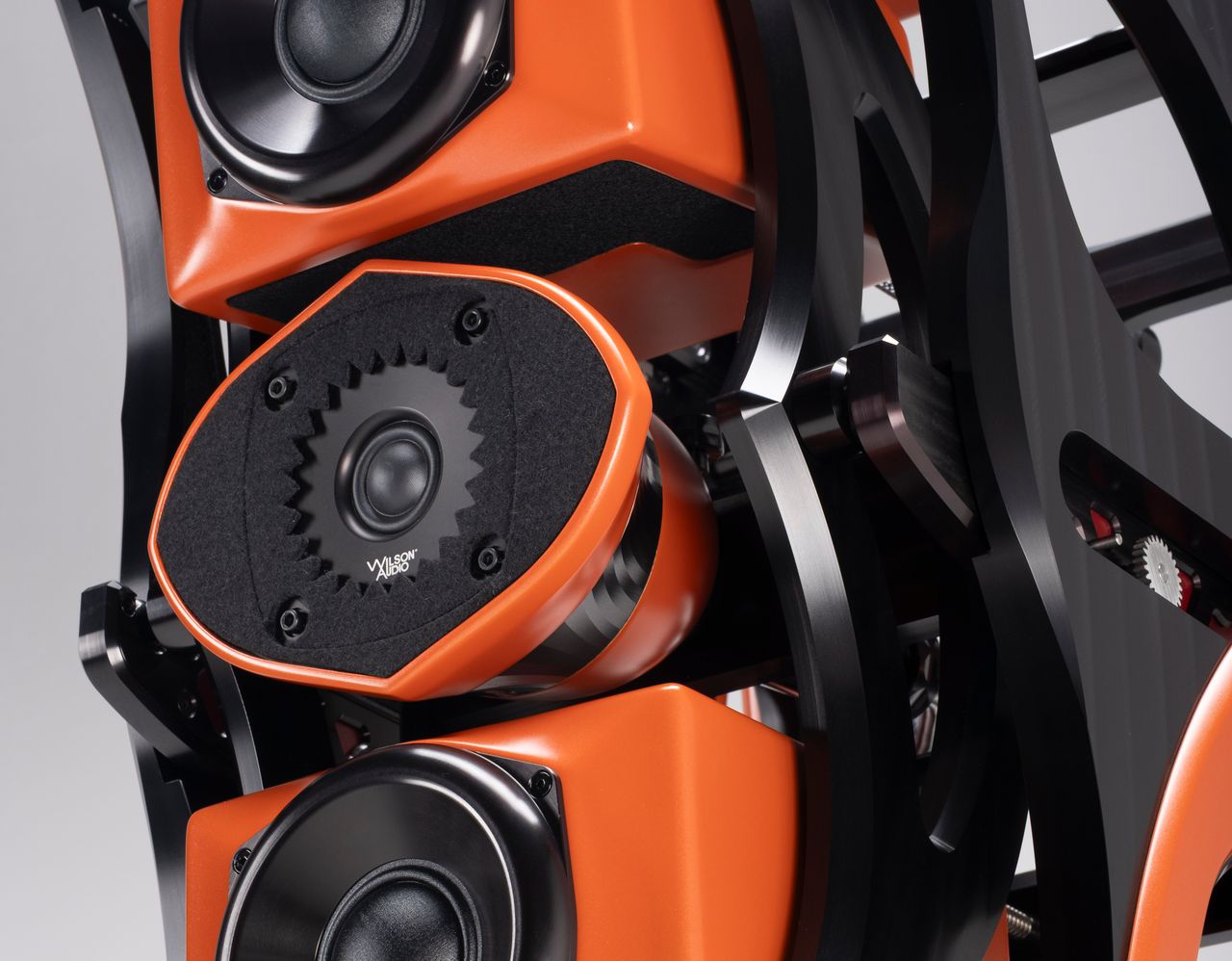

Front Firing Tweeter / CSLS: The Convergent Synergy Laser Sintered (CSLS) front firing tweeter (FFT) represents the latest evolution of Wilson Audio’s Convergent Synergy technology.
Its redesigned rear wave chamber improves energy dissipation, reduces internal reflections, and further lowers the noise floor. This refinement enhances clarity without introducing grit or exaggeration, allowing micro-dynamic information to emerge naturally.
2 inch Midrange / 2″ MID: Flanking the CSLS tweeter are two newly developed 2 inch midrange drivers coupled with optimized sonic faceplates. Known as our 2″ MID (Midband Integration Driver) these units were created to bridge the gap between the speed of the tweeter high frequencies and the lush, life-like presentation of the larger midrange drivers. Their placement ensures symmetrical dispersion and precise time-alignment behavior through the most perceptually sensitive region of human hearing. The 2″ MID dissolves the boundaries between drivers, integrating the midband with such precision and natural flow that the listener perceives only music, not mechanics.
7 inch Midrange / PentaMag: Above and below the MTM assembly sit two 7 inch PentaMag midrange drivers. These are a direct evolution of the QuadraMag platform, now employing five AlNiCo (Aluminum / Nickel / Cobalt) magnets arranged to produce greater motor strength, improved flux stability, and enhanced linearity under dynamic load. This advancement yields midrange reproduction that is both powerful and nuanced, capable of conveying the full emotional weight of voices and instruments without congestion or strain.
Rear Firing Tweeter / RFT: Autobiography incorporates an inverted dome Rear Firing Tweeter
(RFT) designed to enhance spatial depth, ambient retrieval, and harmonic decay. This driver is constructed using aerospace grade unidirectional spread carbon fiber, selected for its exceptional stiffness, predictability, and consistency. The diaphragm employs a variable thickness profile that minimizes inertia while maximizing structural integrity. This RFT is a wide dispersion design, optimized to reproduce ambient information without drawing attention to itself. Its operating range spans from 6 kHz to 22 kHz. An integrated attenuation control allows adjustment from O dB to minus 40 dB, with the maximum setting calibrated to begin at minus 7 dB at 10 kHz relative to the FFT at typical listening distances. This flexibility enables precise tailoring to room acoustics and listener preference, providing subtle reinforcement of spatial cues and reverberant
Woofers- A Deeper Voice
The low frequency architecture of Autobiography was driven by an inspiring objective: to deliver bass that is immediate, articulate, and authoritative while preserving tonal nuance and musical realism at the lowest registers up through the midrange region. To achieve this, two entirely new woofers of differing dimensions, a 12 inch unit and a 15 inch unit, were conceived in parallel and engineered as a unified system while the entire woofer enclosure architecture was reshaped.
Designing dissimilar drivers to function as one coherent voice presents significant challenges in timing, pressure loading, and harmonic consistency. In Autobiography, those challenges were addressed through exclusive and purpose-built motor structures, suspension geometries, and housing these bespoke woofers in a heroically built enclosure. Each woofer contributes distinct strengths, yet neither operates in isolation. Together, they form a seamless low frequency foundation that responds with speed, control, and scale.
These new woofers embody decades of Wilson Audio’s experience in resolving the complexities of recreating low frequency information realistically. The result is low frequency reproduction that is powerful without excess and extended precision without sacrificing emotional impact.
Hardware- Precision in Each Element
Wilson Audio designs have employed various forms of alignment hardware over the decades.

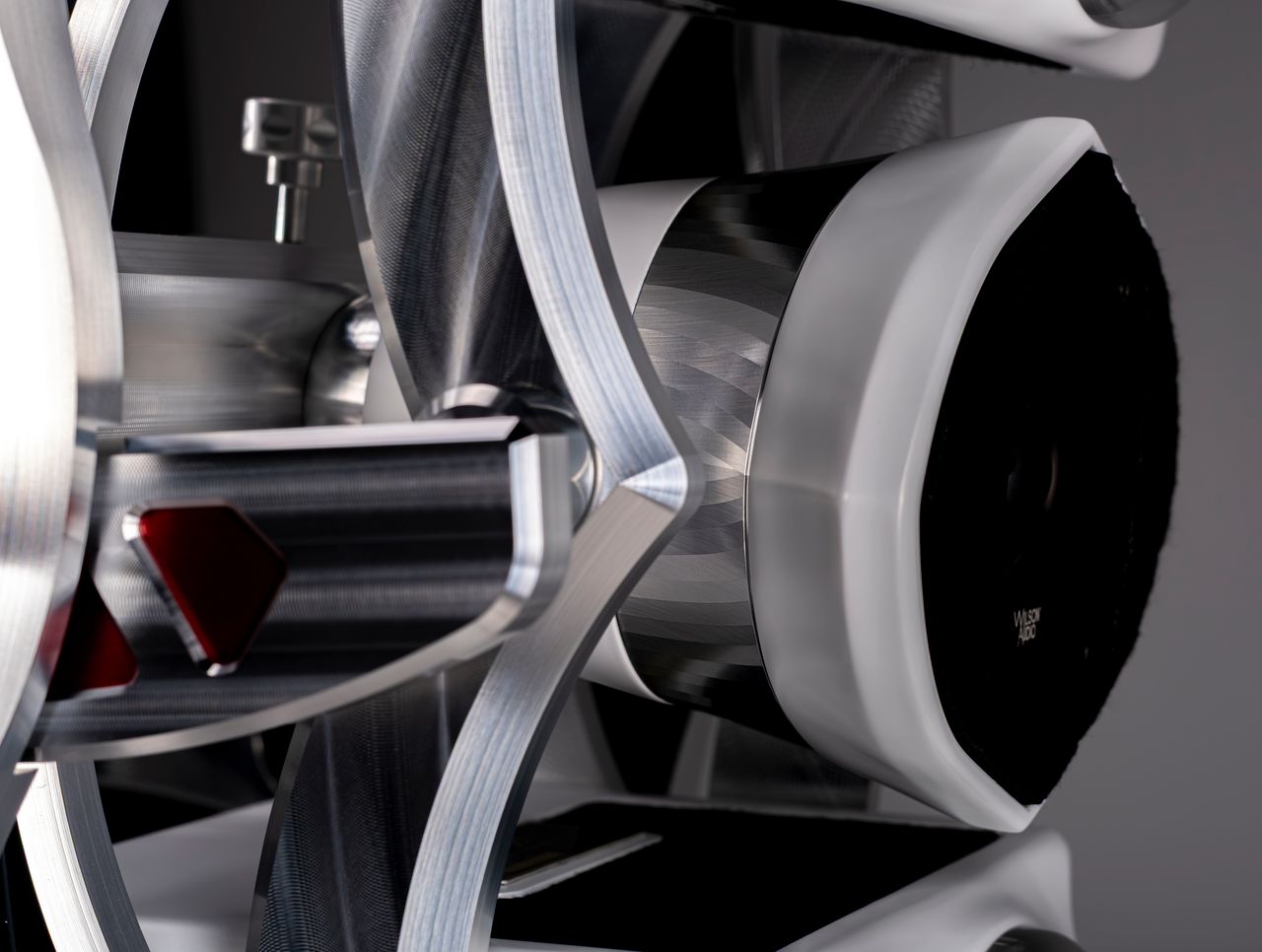

Autobiography employs bespoke hardware deeply designed specifically for this system. What the engineering team has fashioned can only be described as an evolution for how modules are mechanically time aligned. From the module alignment sleds to the precision slide spikes, each component is engineered to function seamlessly with the others, forming an integrated mechanical framework that supports acoustic fidelity. Accuracy, durability, and aesthetic refinement are treated as inseparable attributes.

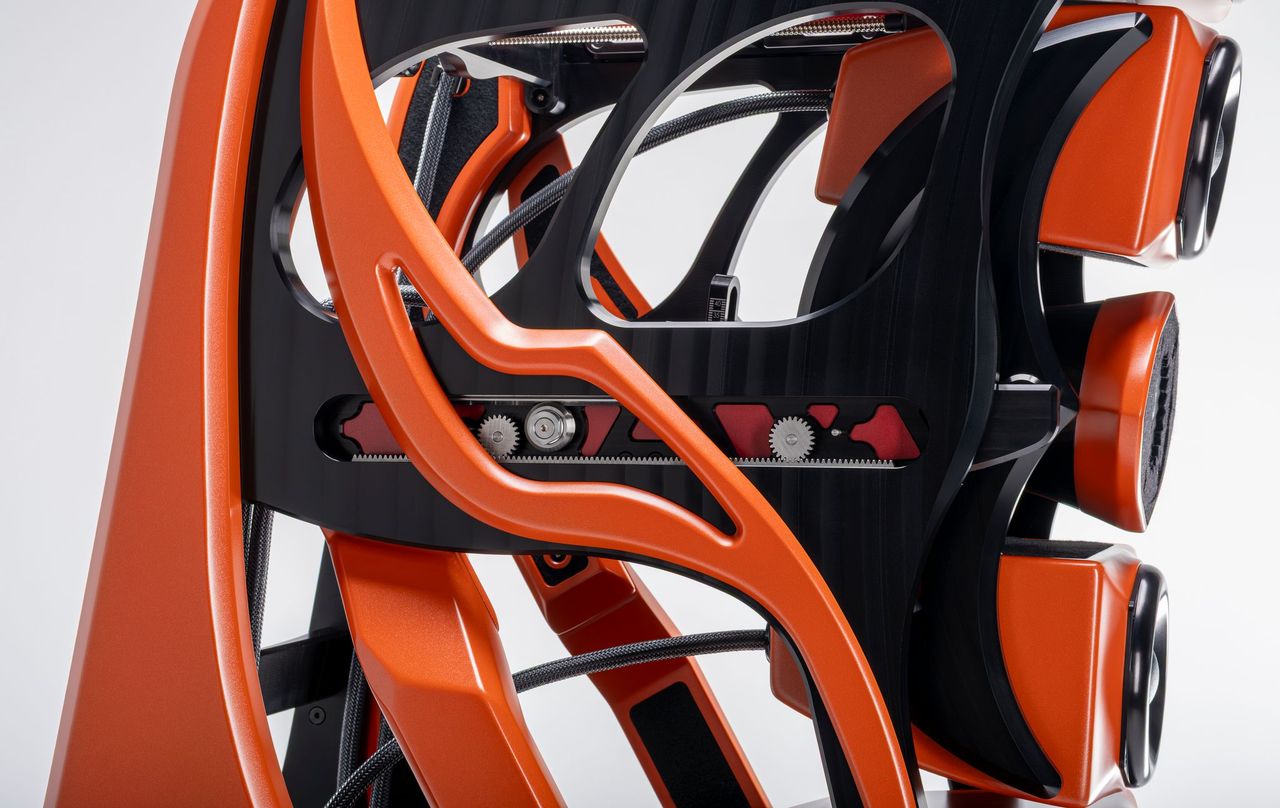

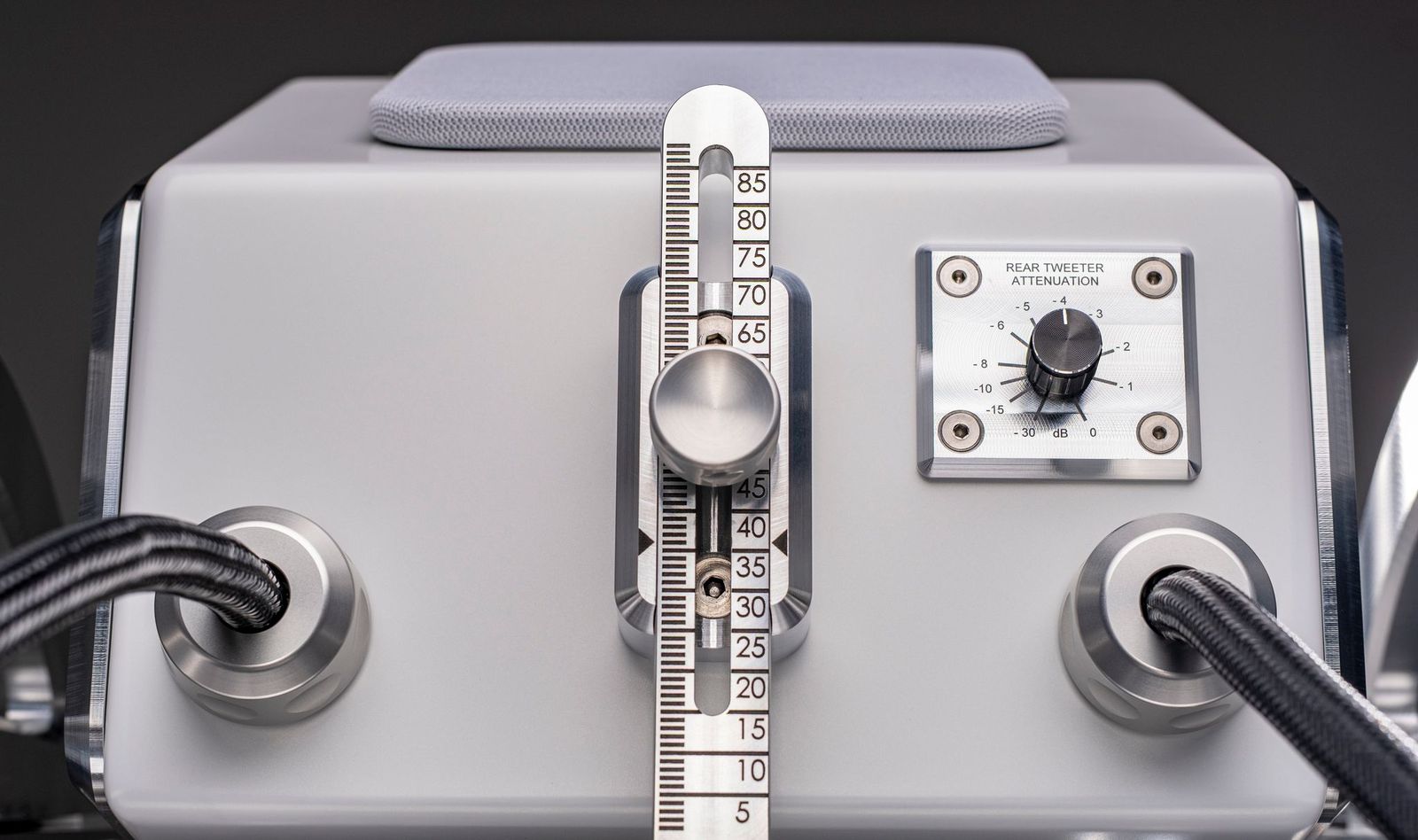

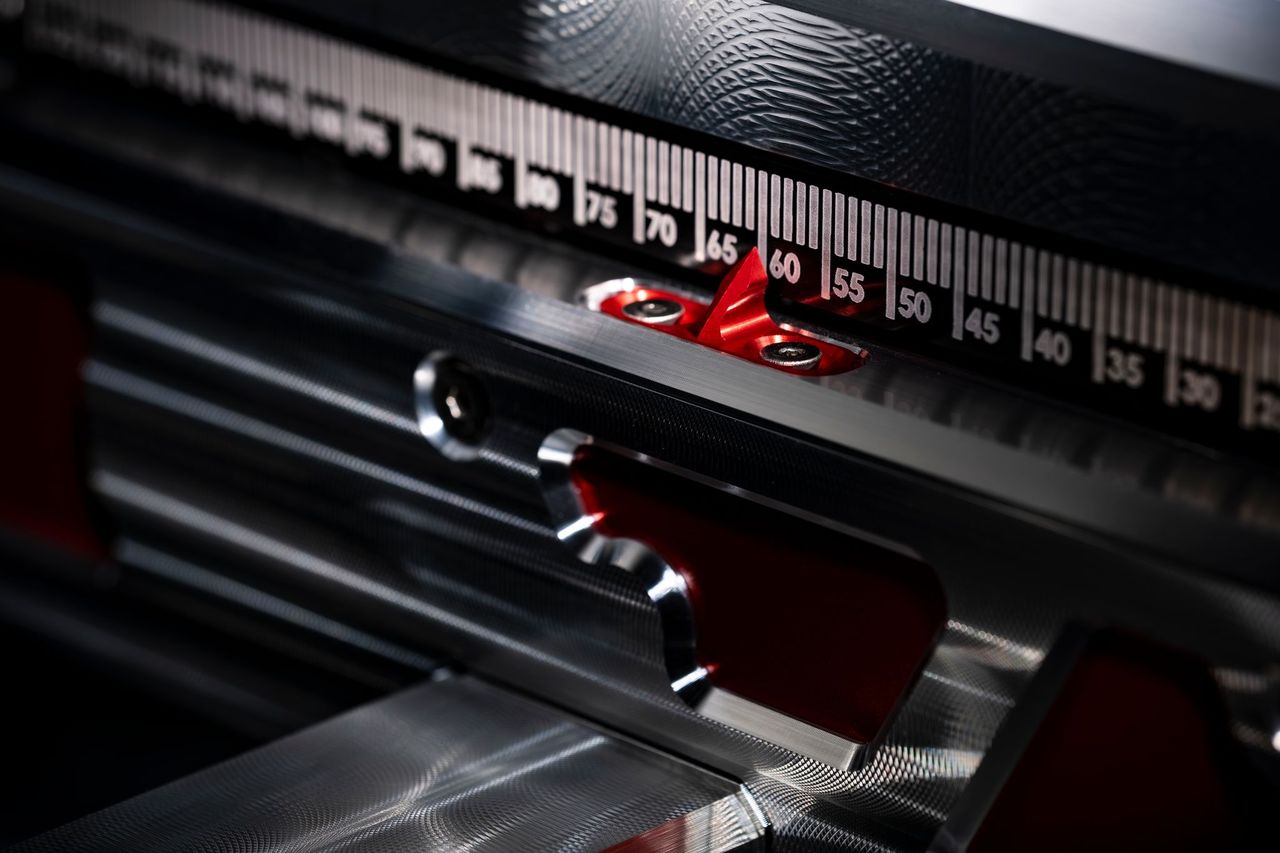

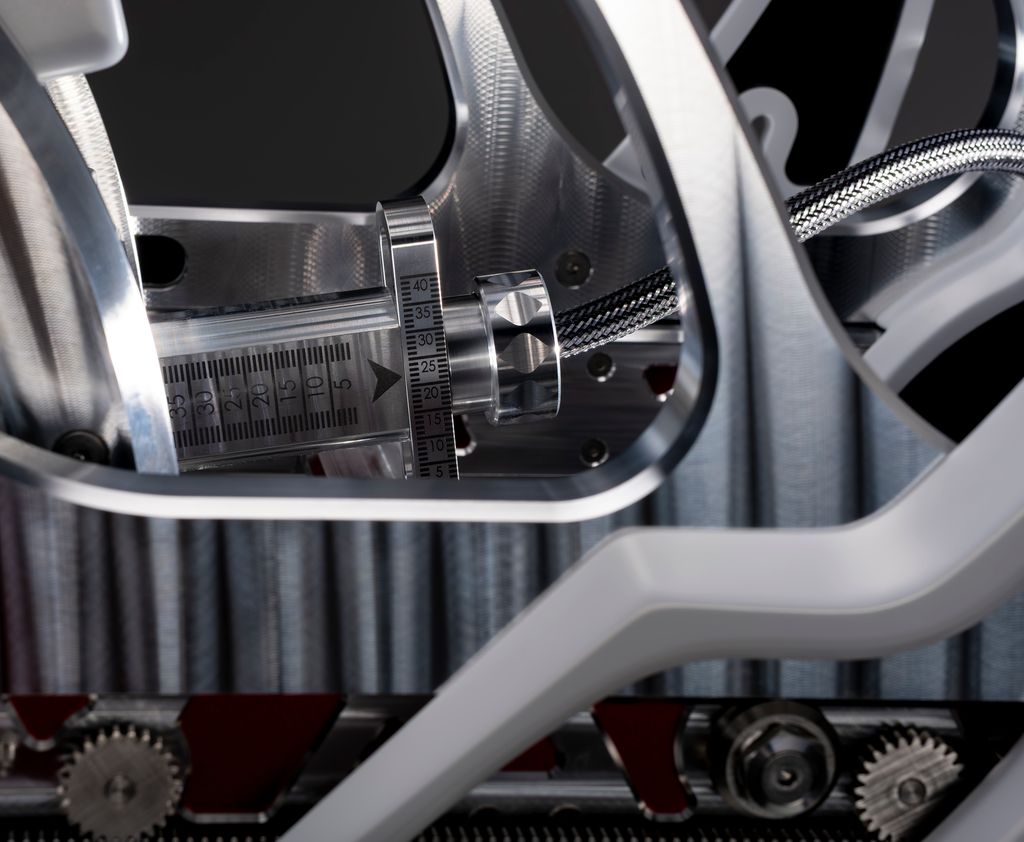

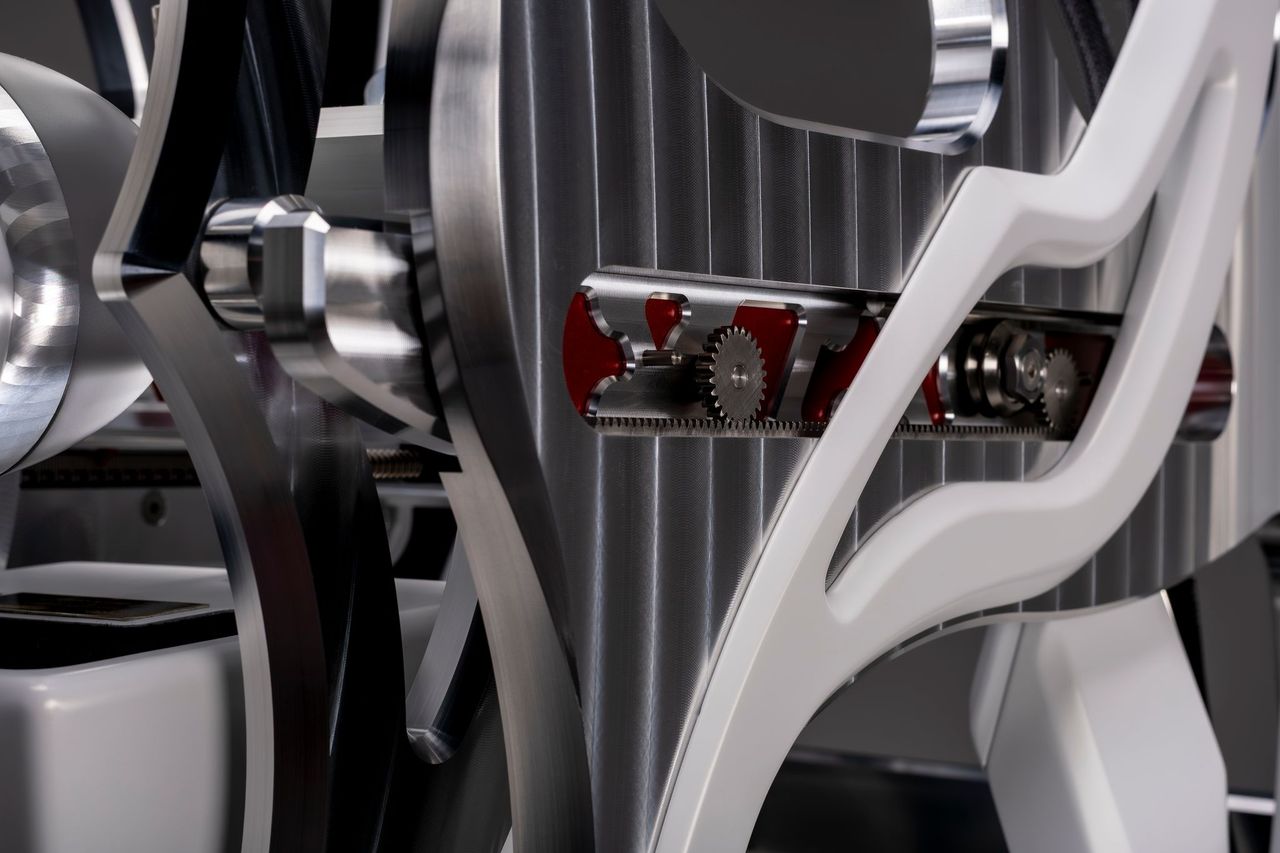

Both the upper and lower PentaMag midrange modules are independently adjustable via the module alignment sled system. Each alignment indicator, all of the sled gears, and reference alignment scales are calibrated and easy to read by simply adjusting the rotating cam grip. The MTM crescent frame is similarly equipped. This innovative alignment hardware enables time domain precision that exceeds both the WAMM Master Chronosonic and the Chronosonic XVX.
New port hardware enables rapid configuration changes and room integration without tools

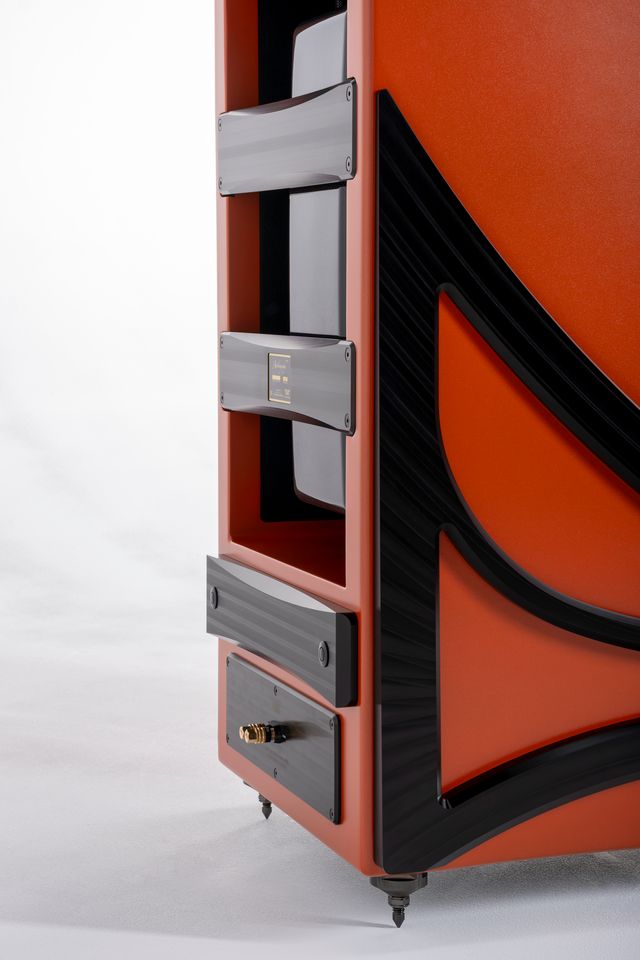

Adjustments can be made to the port cover and port ring by pressing the two quick release buttons, simplifying setup without sacrificing effectiveness. The cross load flow porting system has been refined to allow controlled adjustment of low frequency interaction with the listening space. In a forward firing (FF) configuration, low frequency output in the 10 Hz to 75 Hz region is reduced by approximately 1.0 to 1.5 dB, while output between 75 Hz and 130 Hz increases by 1.5 to 2.0 dB. Switching to a rear firing (RF) configuration gives the inverse response, offering flexibility to accommodate unique room boundaries and overall listener preference.

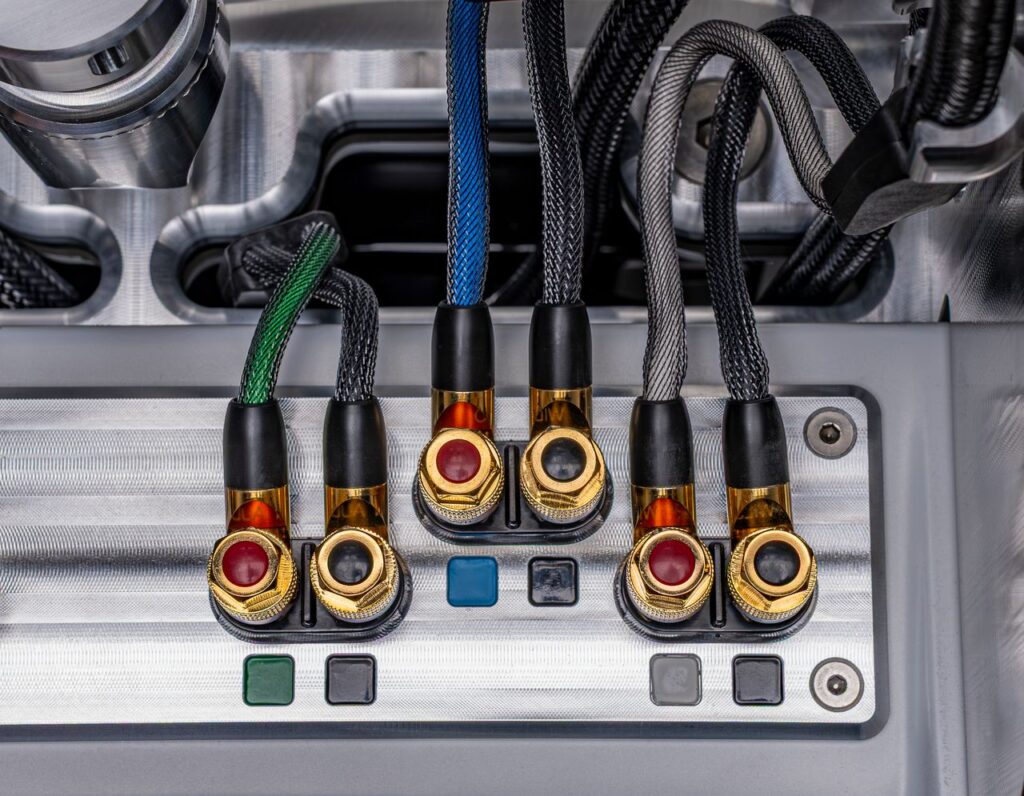

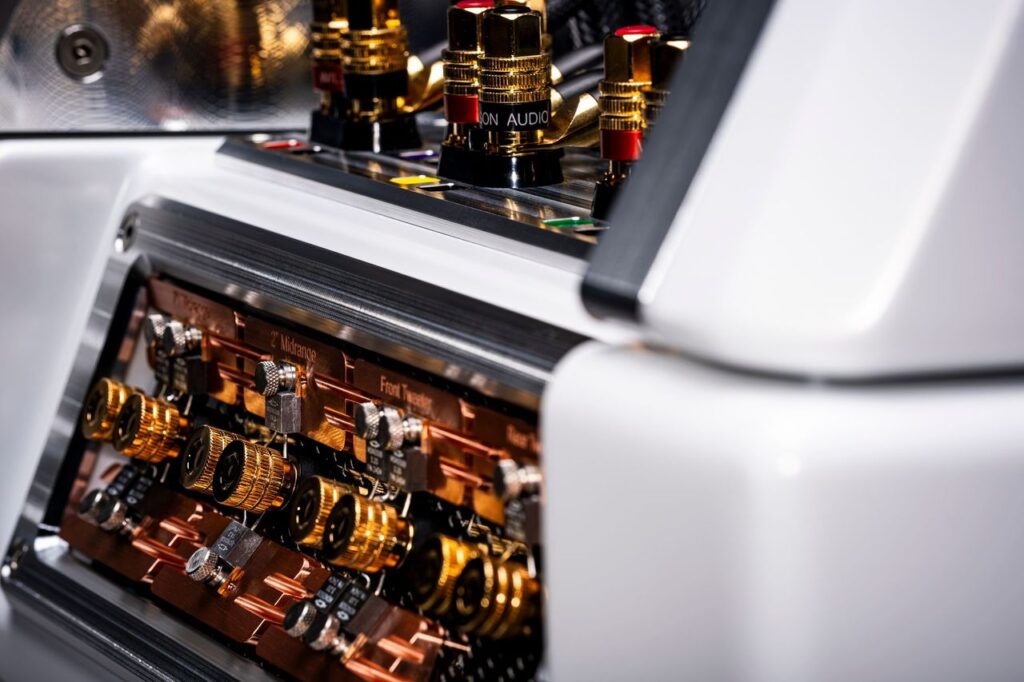

Custom Wilson Audio spades are used throughout, designed to mate perfectly with proprietary binding posts and ensure optimal electrical coupling. Machined wire clasps are integrated into the gantry for organized wire management. The finest quality resistors are mounted to pure copper heatsinks, improving thermal transfer while minimizing vibrational influence, and are easily accessible and can be changed without tools through the framed resistor mount plate on the rear of the woofer enclosure.
A comprehensive new hardware ecosystem defines the physical and mechanical identity of the Autobiography. The visual feast of featured jewel-like hardware includes the decorative mass woofer baffle, skeletonized woofer damping decor, alignment sled pin and pin cradle, gear windows, XO crossbars, sled sleeves, locking cam lever with integrated locking teeth, damping decor, calibrated bubble level, tweeter faceted metallic central section, et cetera. Let us not forget our award winning Wilson Audio Acoustic Diodes, included as a standard component to control vibrational energy at the floor interface.
Materials- Engineered Elegance
There is no single material that functions optimally in all acoustic and structural applications.
Autobiography is a mechanical marvel which reflects this reality through a richly layered architecture curated with purposefully engineered materials, each selected for specific mechanical and sonic properties. Every part of the system is analyzed and refined to ensure it contributes authentically to a listener’s overall experience.
Among the materials employed in Autobiography’s design are several versions of high-density phenolic resin composites (H-Material, internally damped constrained layer V- and X-Materials), carbon fiber, aerospace grade aluminum, stainless steel, copper, gold, etc. These elements are not used for marketing hype, but for function. Their refined application defines how energy is controlled, directed, dissipated, and ultimately rendered as music.
The woofer baffle is reinforced with a damping mass of aluminum. Unlike previous woofer enclosure designs where X-Material was removed to accommodate flush mounting the woofers, Autobiography preserves the full thickness of X-Material behind the woofer baskets. This approach increases stiffness at the coupling surface, improving uniform low frequency reproduction.

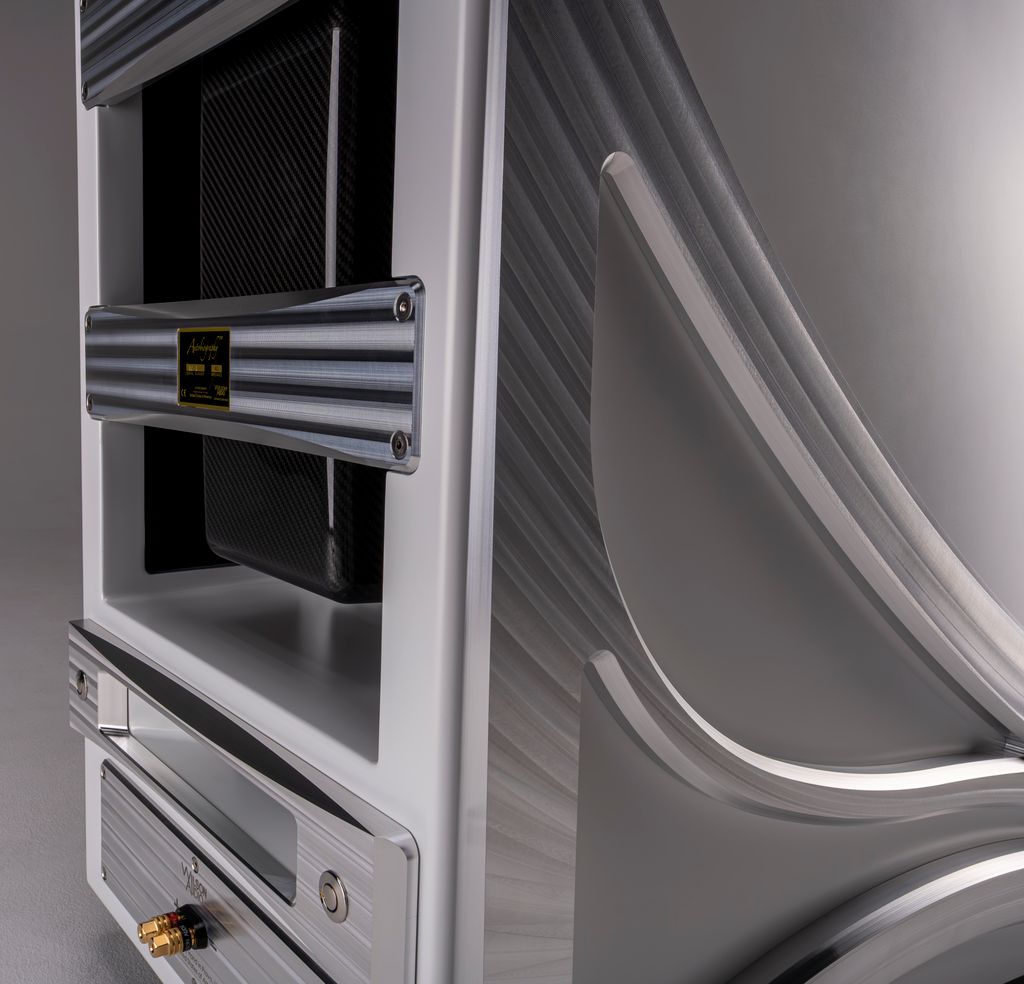

The crossover housing is constructed from beautifully woven carbon fiber and mounted to a V-Material vibration sink. Tying the crossover chamber together are dual metal cross braces reinforcing this space and ensuring structural solidity. Every enclosure and module interface incorporates V-Material, including all the surfaces that all the precision slide spikes touch.
Additionally, secured in the middle of the sled arm is a V-Material core where the sled alignment pin rests in the pin cradle. Even the bottom of the woofer enclosure is getting an upgrade. A new version of V-Material has been developed for the entire bottom of the woofer enclosure to increase vibration control at the interface with the Acoustic Diodes.

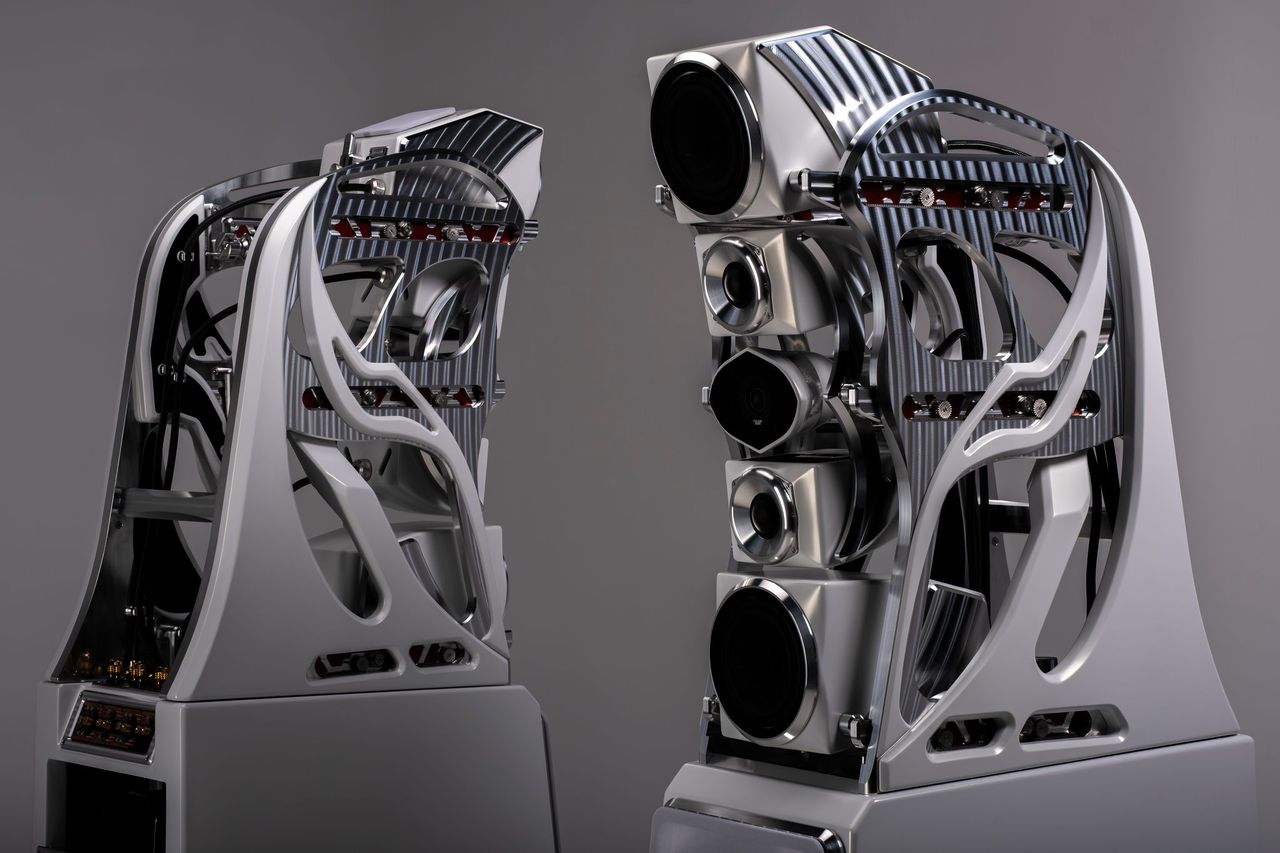

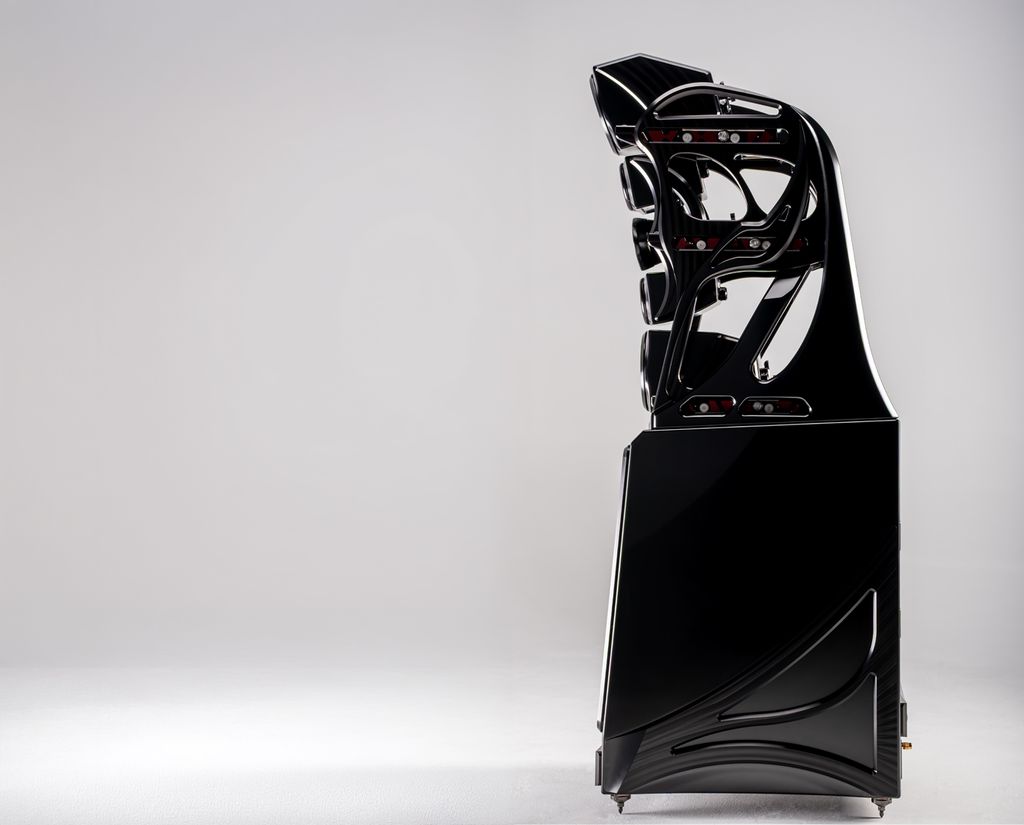

While assembling the Autobiography, it is clear to see the gantry is secured to the top of the woofer enclosure with an isolating layer of V-Material. The gantry elements are skeletonized in a manner reminiscent of earlier Wilson Audio flagships, yet in a more fluid and sculpted aesthetic.
Stylistically, Autobiography represents an organic interplay between H-Material composites and precision machined aluminum throughout the gantry, including the baffle of each upper module.
An interlocking phenolic damping sheath provides structural integrity and visual elegance.
Custom metal finishes, developed in collaboration with trusted local machine shop partners, reflect craftsmanship only found with the right artists behind the bits.
At its tallest configuration, Autobiography stands approximately 83.5 inches tall. For reference, the WAMM Master Chronosonic stands 86.5 inches tall, while the Chronosonic XVX measures approximately 76 inches in height.
Crossovers- Musically Minded
Five decades ago, loudspeaker designers were constrained by limited component options.
Capacitors often employed simple single-wound constructions, and printed circuit boards were common despite their tendency to dynamically compress sound. Wilson Audio has consistently challenged these limitations through innovation and meticulous execution.
Autobiography continues this tradition by employing handcrafted, point-to-point, in-house built crossovers. The multi-section Reliable Capacitors (Rel-Cap) utilized throughout the system are manufactured at Wilson Audio using custom built machines. These capacitors are finished by hand within +/- 0.2% of specification. The proprietary winding machines employed represent the most consistent, uniform, and accurate Rel-Cap production methods to date, resulting in the most musically revealing capacitors Wilson Audio has ever produced.
Found in the Autobiography carbon fiber crossover housing are unique copper variants of the AudioCapX-WA capacitor which further refines performance. This configuration improves high frequency micro detail and reveals subtle spatial cues that might otherwise be obscured. A newly configured woofer capacitor ensures that low frequency information integrates seamlessly with the midrange signal, presenting bass energy as rich yet steadfastly controlled.
Each crossover component is either fabricated at Wilson Audio or individually selected, oriented, and hand soldered without the use of printed circuit boards (PCB). This approach preserves dynamic expression and avoids the sonic artifacts associated with PCB based layouts used in loudspeakers.
