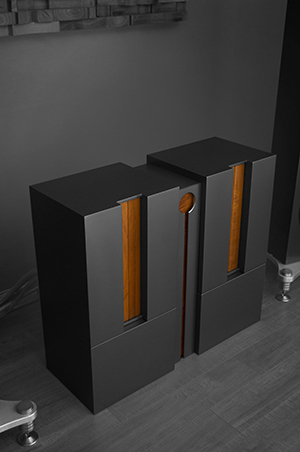

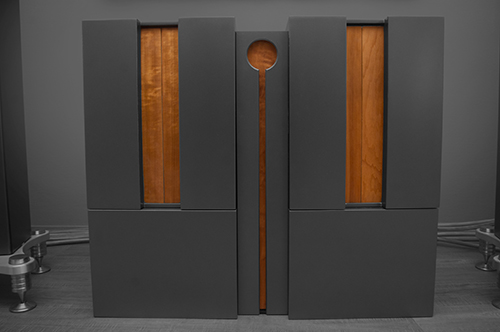

Aramis Acoustic new Amplifier is a multi channel power amplifier designed for their fully active speaker system with fully DSP based hearth.
Amplifier specifications / channel:
Class-D
S/N ratio: snr 134 db (unweighted, add 2 dB for A- weighted), Re PR.
snr: 109 db (unweighted, add 2 dB for A- weighted), Re 2.8Vrms
Efficiency: 93%
Frequency Response: 0 hz -50 khz, 0/-3dB. All loads.
Distortion: THD+N, typ: 0,001%, max: 0,005%, 20Hz
Continuous Output Power: 100 W Per channel, 25°C ambient temperature.
Peak Output Power: 8 ohm: 400W, 4 ohm: 700 W, 2 ohm: 550 W , 1KHz, THD=1%
Output Impedance: typ: 1,5 mΩ max : 2 mΩ F<16khz i="">
