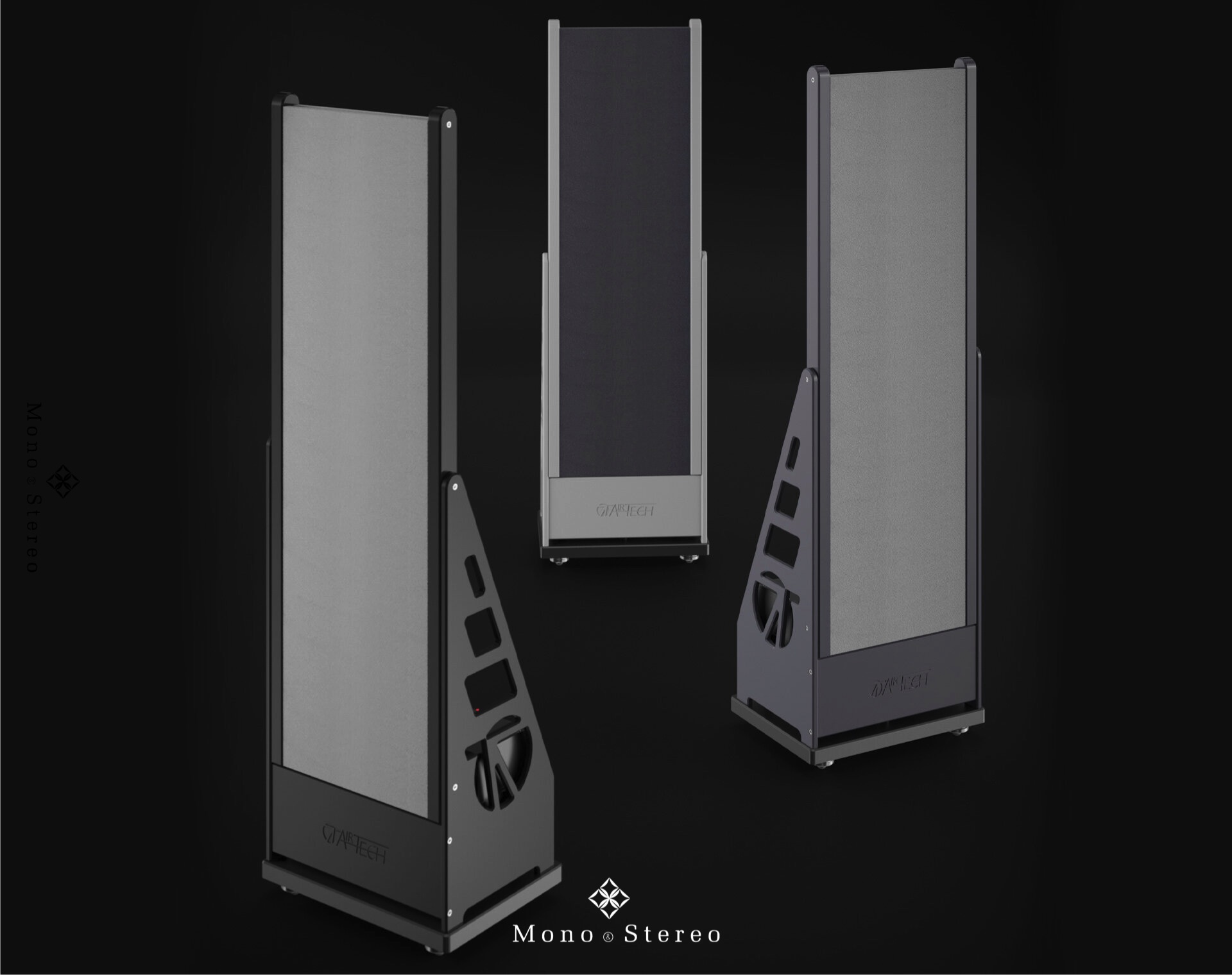

Audio Analogue Airtech ATS01 Reference Speakers

Airtech continues its path in the design and production of reference High-End
products with the introduction of a hybrid speaker that combines
magnetoplanar and dynamic technologies. The basis of this philosophy is the
choice of neodymium as a magnetic element, which together with the
precision applied to the installation and draw of the mylar, are fundamental
for the success in efficiency and dynamics of the speaker itself.

Each welding, component and connection has been tought and designed
respecting all the experience gained by Airtech using the best materials
available on the market such as connecting cables and proprietary tin made
under Airtech specifications. The frame represents years of research on the
system of dynamic decoupling giving an exciting light/dark sonic experience.
Technically the entire frame is machined from solid aluminum while the
screws use 100% marina stainless steel. Finally, we decided to combine a
traditional 165mm driver to have a deep but at the same time fast bass,
without neglecting the phase problems that on average afflict hybrid
speakers.

All these solutions make the new Airtech ATS01, as well as a speaker unique
in the world, a true reference for technology and performance, both with
regard to the niche of hybrid speakers, but also talking about the world of
high-end speakers in general.

Technical

2.5 ways speaker composed of Airtech magnetoplanar tweeter and mid-woofer with dipolar emission and sub-woofer with 165mm Morel driver loaded in bass-reflex. Internal structure and SW case in MDF, external structure and X-over cabinet in solid aluminum, 7N OCC Airtech pure copper wiring, X-over made of very high quality audiograde components, gold plated pure copper output connectors. Semi-spherical feet adjustable in height made of stainless steel. Available with standard black and silver anodized finish or with custom colors on request.

Impedance

4ohm

Sensibility

87dB

Frequency of woofer crossover

250Hz

Power handling

oltre 200W rms

Minimum recommended power

100-150W

Dimensions
(LxPxA)

44×31.3×143 cm

Weight
(single speakers)

52Kg
