The Hachidori Fukami is an all-tube preamplifier for open-reel tape and phono playback. It includes sophisticated features for optimum interfacing with the sources and downstream components. Unassuming in its presentation, the Fukami is designed to be an open window to the subtleties and emotional impact that the best analog recordings can convey. Rather than call attention to specific details, it allows the gestalt of the music to move the listener directly.
The sonic objectives, user features, construction techniques, and aesthetic design are realized as an integrated whole to be timeless and devoid of extraneous frills. In this sense, it is an embodiment of Zen philosophy.
With proper care and maintenance, the Fukami will provide consistent performance and listening pleasure for generations.
Zen philosophy
With origins in Mahayana Buddhism, Zen travelled from China to Japan in the 12th century and has had a profound impact on Japanese thought, art and culture which continues to this day. Emphasizing enlightenment via intuition and direct experience, facilitated by meditation, it has influenced many Japanese kogei traditional arts. Dispensing with the mundane in favor of what is essential has resulted in art forms of timeless beauty and daily use items of great simplicity and practical utility. An important element of Zen-inspired paintings and architecture is the Enso circular symbol. It represents the lack of beginning and end, a good example of the lack of duality found in Zen thought.
State of the art sound quality
Cable shield driver for high-impedance tape heads; eliminates the possibility of in-band head resonance and high frequency peaking/roll off by eliminating the effect of cable capacitance loading.
Push-pull 600 Ohm output driver uses output transformers with Permalloy cores to minimize high-order harmonic distortion. A precision discrete Class A DC servo is used to balance plate currents to minimize low frequency distortion.
All audio coupling, equalization and phase compensation capacitors are dipped silver mica types, which provide a combination of superlative sound quality and high stability and reliability. Special circuit design techniques are employed to allow their use, given quite limited available capacitance values.
High degree of flexibility and ease of use
Two-stage stepped attenuators, offering wide range and precise, repeatable output level adjustment; useful for maximizing the dynamic range of A/D converters.
Sophisticated output level metering, especially suitable for interfacing directly with high-resolution A/D converters to maximize their dynamic range. Accurate, high-speed peak hold function allows highest peak during playback to be held indefinitely.
High degree of reliability and longevity
Except for a pair of 12BH7 output tubes, 12AX7/ECC83 tubes are used for their combination of sound quality, availability, and low current operation, which yields long life of tubes and associated components.
Power supply and audio chassis are designed with effective passive cooling to extend component life.
Components are operated well within their ratings to ensure long life.
Ease of maintenance and repair

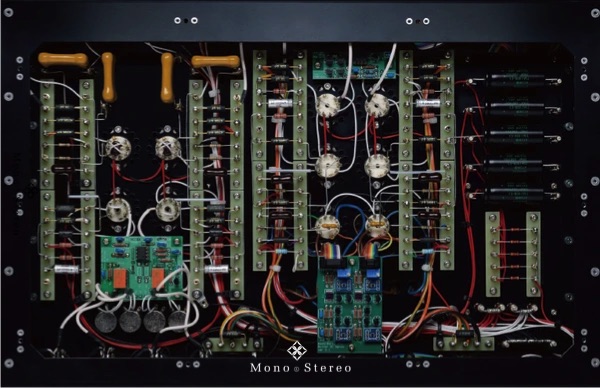

All high-voltage power supply and audio wiring is point-to-point for maximum reliability. Components are mounted on turret posts for easy field replacement when needed.
Use of electrolytic capacitors is limited to the extent practical, and long-life types have been chosen where necessary.
Understated but beautiful aesthetic design
This elegant design has a traditional look, but breaks from tradition by combining Wajima Nuri exterior panels with a 3D CAD-verified monocoque aluminum frame.
As with the electronic circuits, the exterior panels are made with materials and techniques which can last for a lifetime and allow for easy removal and repair to as-new condition if scratched or damaged.
“Wajima-nuri” urushi lacquerware
Wajima-nuri is a nationally designated lacquerware considered to be the highest expression of lacquer craft in Japan. This technique is only practiced by registered artisans in Wajima city.
Wajima-nuri reflects the ancient Japanese philosophy of craftsmanship which emphasizes high quality and longevity.
The process begins with the application of Nunogise cloth to the wood substrate, followed by the application of a Jinoko base coat, a mixture of locally-sourced fine clay and lacquer. This helps to strengthen and stabilize the wood. After sanding, a base coat of pure lacquer is applied, followed by repeated steps of sanding and application of lacquer, each followed by periods of air drying in controlled temperature and humidity conditions. After application of a coat of red lacquer, the Hachidori logo is hand painted using the Maki-e technique and lacquer containing fine silver or gold powder. The top coat is applied using the Tame-nuri technique and extensive hand polishing, yielding a deep shine with subtle color gradations which are unique to each piece. The process involves about 20 steps and takes approximately 10 months to complete.
About HACHIDORI Inc.
Hachidori was established in 2018 by Jonathan Knight to provide unique products and services to the high-end audio community.
While modern circuit design, 3D CAD design, CNC machining, and advanced surface finishing techniques are employed, the sonic and technical goals of Hachidori are based on a reverence for the Zen-like simplicity and natural, musically compelling sound of the best vintage audio equipment. A similar reverence for many Japanese traditional arts led to a desire to incorporate them in a product which is not only functional, but can be enjoyed as an interior design element for decades to come.
The Fukami preamplifier is the result of a 5-year collaboration between Hachidori (product concept, circuit design), Age Design (aesthetic and 3D mechanical design), Chubei (Wajima nuri lacquer) and various engineers, artisans, metalworkers, surface finishers, etc.
Jonathan enjoyed audio as a hobby with his father from a young age and has been building amplifiers and speakers since his teens. He worked at an audio repair facility during his student years and learned much about component selection and construction techniques which contribute to long-term reliability and longevity. He has owned and studied hundreds of amplifiers, tape recorders and speakers spanning the 1920s to the present day and has applied these learnings to the design concepts and implementation of the Fukami preamplifier. 27 years in analog and mixed-signal semiconductor R&D and management have contributed unique solutions to some of the problems associated with an outboard tape preamp. A similar amount of time living in Japan and spending time with many Japanese audiophiles have provided perspectives which further contributed to his vision.
